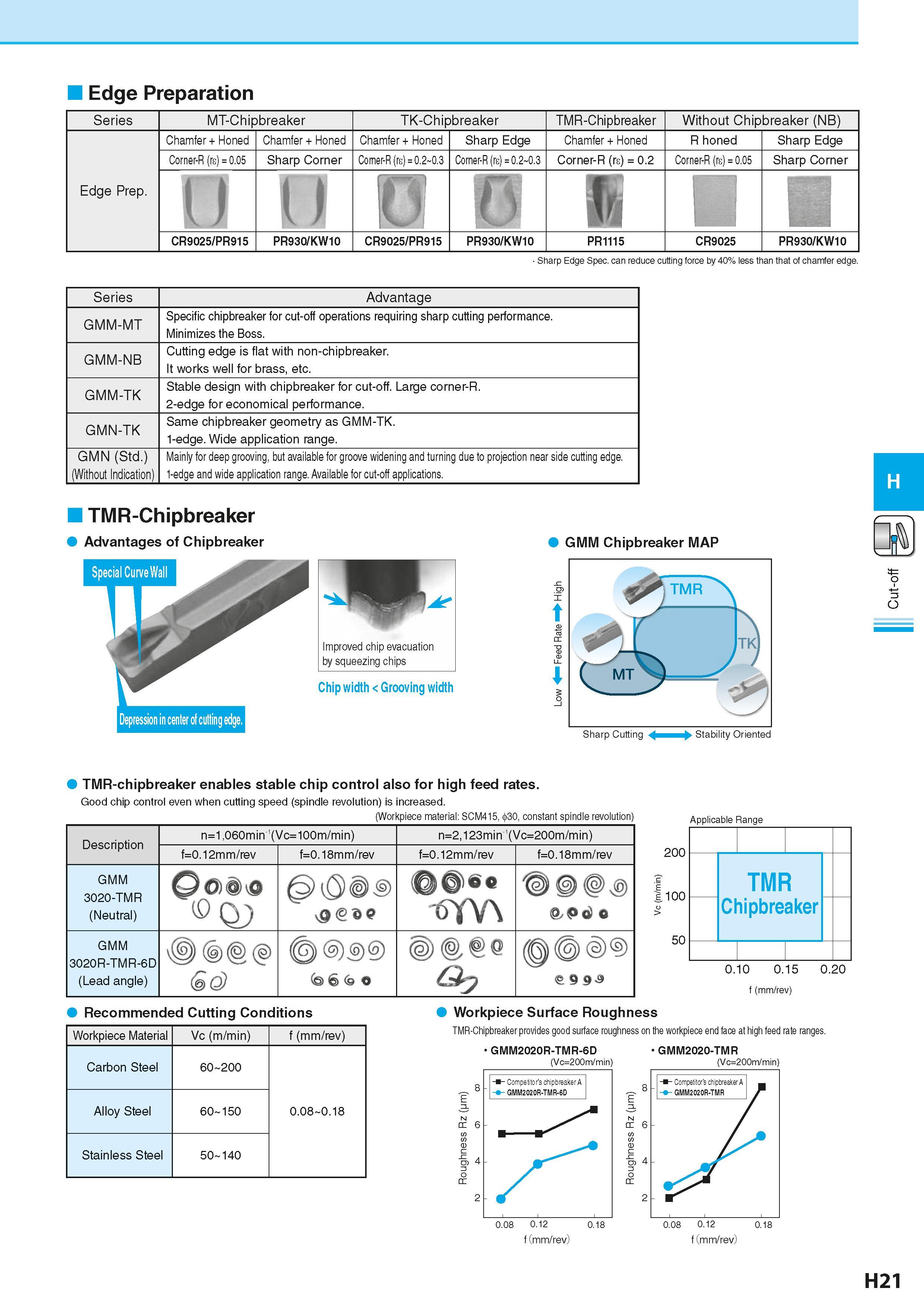

Edge Preparation Series MT-Chipbreaker TK-Chipbreaker TMR-Chipbreaker Without Chipbreaker (NB) Chamfer + Honed Chamfer + Honed Chamfer + Honed Sharp Edge Chamfer + Honed R honed Sharp Edge Corner-R (re) = 0.05 Sharp Corner Comer-R (re) = 0.2 0.3 Corner-R (re) = 0.2 0.3 Corner-R (re) = 0.2 Corner-R (re) = 0.05 Sharp Corner Edge Prep. I) 0 It CR9025/PR915 PR930/KW10 CR9025/PR915 PR930/KW10 PR1115 CR9025 PR930/KW10 Sharp Edge Spec. can reduce cutting force by 40% less than that of chamfer edge. Series Advantage GMM-MT Specific chipbreaker for cut-off operations requiring sharp cutting performance. Minimizes the Boss. GMM-NB Cutting edge is flat with non-chipbreaker. It works well for brass, etc. GMM-TK Stable design with chipbreaker for cut-off. Large corner-R. 2-edge for economical performance. GMN-TK Same chipbreaker geometry as GMM-TK. 1-edge. Wide application range. GMN (Std.) (Without Indication) Mainly for deep grooving, but available for groove widening and turning due to projection near side cutting edge. 1-edge and wide application range. Available for cut-off applications. TMR-Chipbreaker Advantages of Chipbreaker Improved chip evacuation by squeezing chips Chip width < Grooving width GMM Chipbreaker MAP Sharp Cutting Stability Oriented H TMR-chipbreaker enables stable chip control also for high feed rates. Good chip control even when cutting speed (spindle revolution) is increased. (Workpiece material: SCM415, 30, constant spindle revolution) Description n=1,060min-1(Vc=100m/min) n=2,123min-1(Vc=200m/min) f=0.12mm/rev f=0.18mm/rev f=0.12mm/rev f=0.18mm/rev GMM 3020-TMR (Neutral) O o) o w o GMM 3020R-TMR-6D (Lead angle) ( q) bfefeo <£9 9-9 Applicable Range 200 I 100 50 TMR Chipbreaker 0.10 0.15 0.20 f (mm/rev) Recommended Cutting Conditions Workpiece Material Vc (m/min) f (mm/rev) Carbon Steel 60 200 0.08 0.18 Alloy Steel 60 150 Stainless Steel 50 140 Workpiece Surface Roughness TMR-Chipbreaker provides good surface roughness on the workpiece end face at high feed rate ranges. > GMM2020R-TMR-6D (Vc=200m/min) GMM2020-TMR (Vc=200m/min) E n N (X oi CA 0 f (mm/rev f (mm/rev H21 Cut-off
