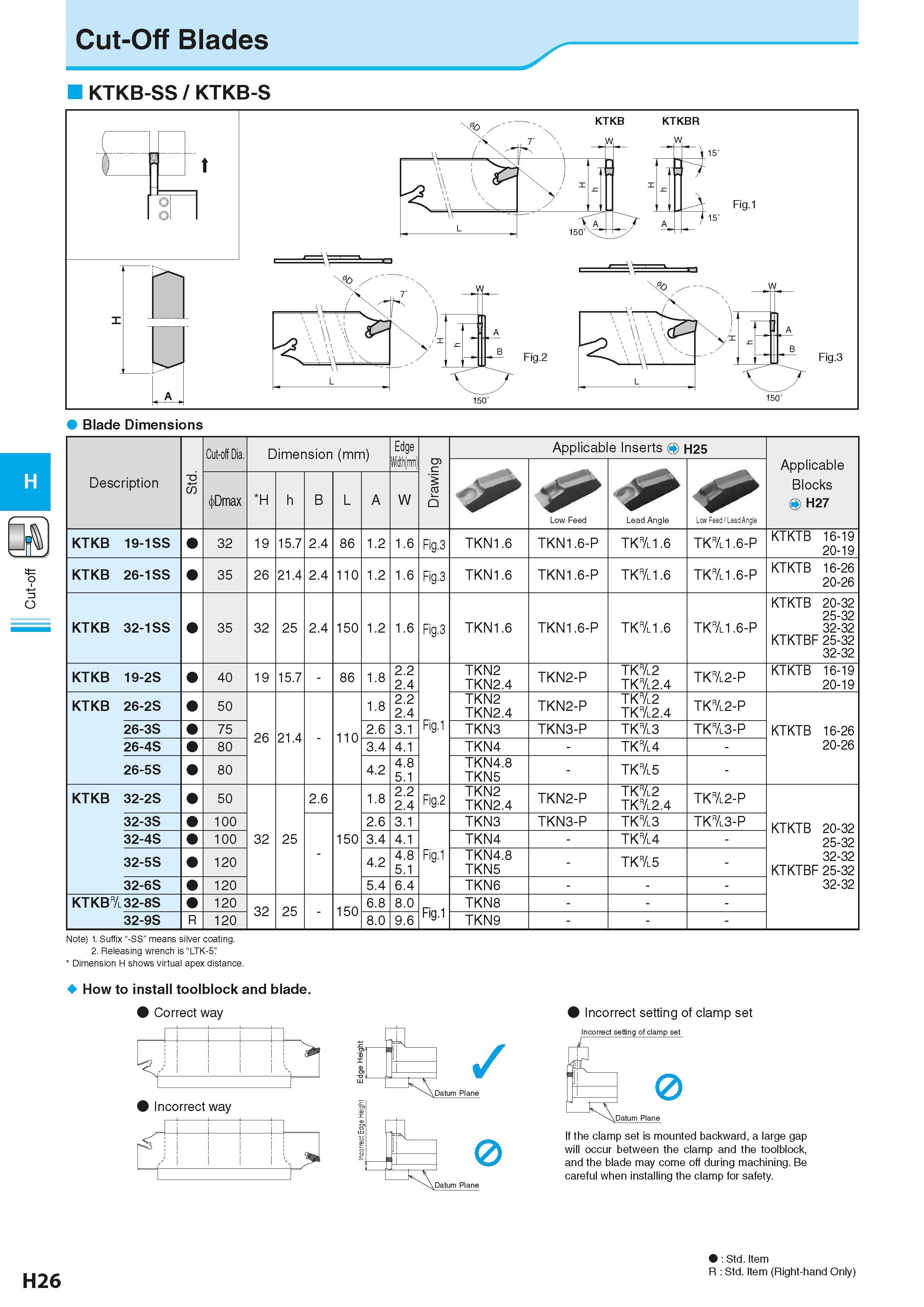

Cut-off Cut-Off Blades KTKB-SS / KTKB-S Blade Dimensions H Description T3 w Cut-off Dia. Dimension (mm) Размеры инструмента указаны в мм Edge Width(mm) Drawing Applicable Inserts O H25 Applicable Blocks O H27 Low Feed Lead Angle Low Feed / Lead Angle < )Dmax H h B L A W KTKB 19-1SS 32 19 15.7 2.4 86 1.2 1.6 Fig.3 TKN1.6 TKN1.6-P TK&1.6 TK&1.6-P KTKTB 16-19 20-19 KTKB 26-1SS 35 26 21.4 2.4 110 1.2 1.6 Fig.3 TKN1.6 TKN1.6-P TK&1.6 TK&1.6-P KTKTB 16-26 20-26 KTKB 32-1SS 35 32 25 2.4 150 1.2 1.6 Fig.3 TKN1.6 TKN1.6-P TK&1.6 TK&1.6-P KTKTB 20-32 25-32 32-32 KTKTBF 25-32 32-32 KTKB 19-2S 40 19 15.7 - 86 1.8 2.2 2.4 Fig.1 TKN2 TKN2.4 TKN2-P TK&2 TK&2.4 TK&2-P KTKTB 16-19 20-19 KTKB 26-2S 50 26 21.4 - 110 1.8 2.2 2.4 TKN2 TKN2.4 TKN2-P TK&2 TK&2.4 TK&2-P KTKTB 16-26 20-26 26-3S 75 2.6 3.1 TKN3 TKN3-P TK&3 TK&3-P 26-4S 80 3.4 4.1 TKN4 - TK&4 - 26-5S 80 4.2 4.8 5.1 TKN4.8 TKN5 - TK&5 - KTKB 32-2S 50 32 25 2.6 150 1.8 2.2 2.4 Fig.2 TKN2 TKN2.4 TKN2-P TK&2 TK&2.4 TK&2-P KTKTB 20-32 25-32 32-32 KTKTBF 25-32 32-32 32-3S 100 - 2.6 3.1 Fig.1 TKN3 TKN3-P TK&3 TK&3-P 32-4S 100 3.4 4.1 TKN4 - TK&4 - 32-5S 120 4.2 4.8 5.1 TKN4.8 TKN5 - TK&5 - 32-6S 120 5.4 6.4 TKN6 - KTKB&32-8S 120 32 25 - 150 6.8 8.0 Fig.1 TKN8 - 32-9S R 120 8.0 9.6 TKN9 - Note) 1. Suffix “-SS” means silver coating. 2. Releasing wrench is “LTK-5. Dimension H shows virtual apex distance. How to install toolblock and blade. Correct way Incorrect way Incorrect setting of clamp set Incorrect setting of clamp set 0 Datum Plane If the clamp set is mounted backward, a large gap will occur between the clamp and the toolblock, and the blade may come off during machining. Be careful when installing the clamp for safety. H26 Std. Item R Std. Item (Right-hand Only)
