493 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.H29

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. H29 0493 Lab2u

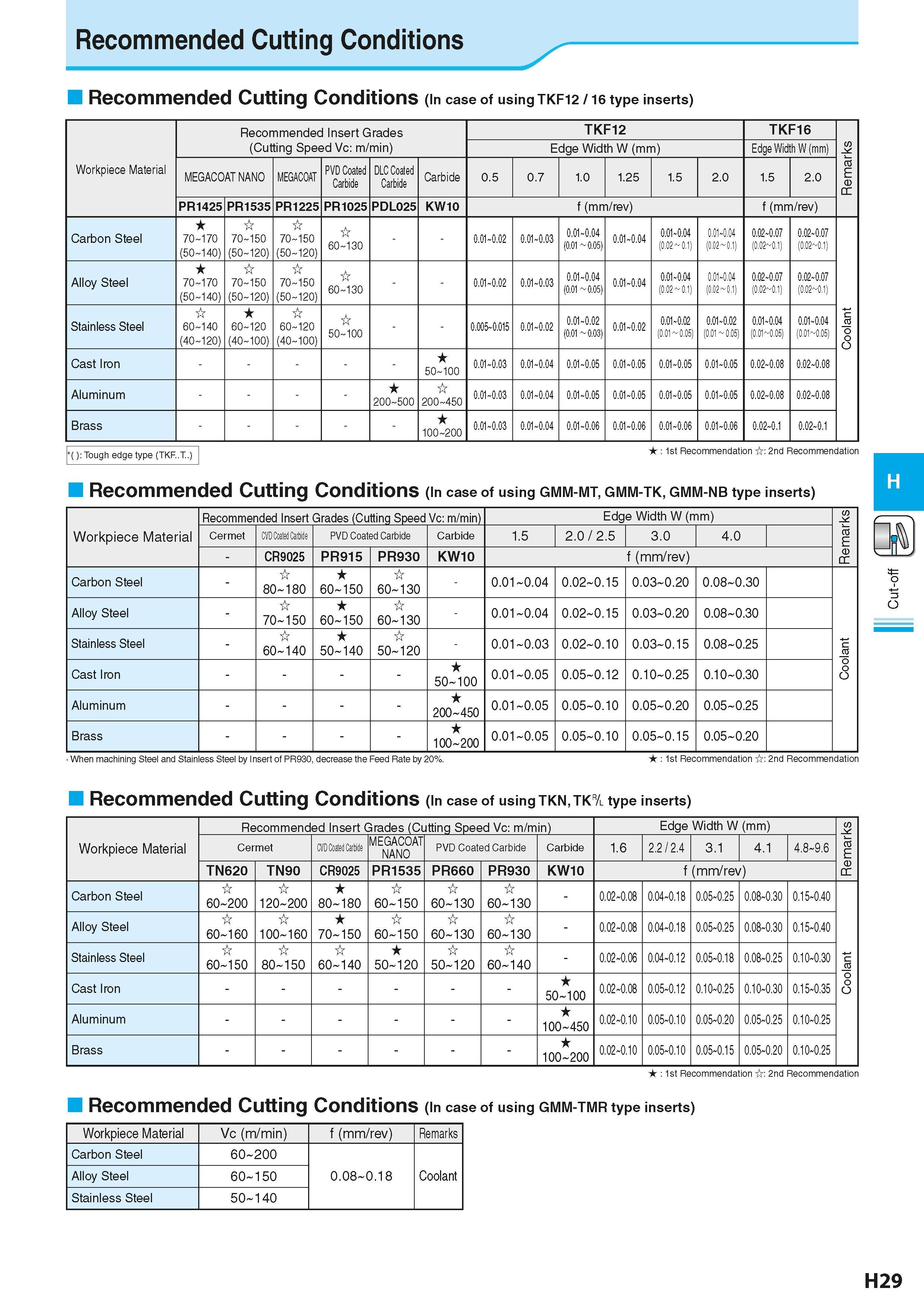

Recommended Cutting Conditions Recommended Cutting Conditions (in case of using TKF12 / 16 type inserts) Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) TKF12 TKF16 Remarks Edge Width W (mm) Edge Width W (mm) MEGACOAT NANO MEGACOAT PVD Coated Carbide DLC Coated Carbide Carbide 0.5 0.7 1.0 1.25 1.5 2.0 1.5 2.0 PR1425 PR1535 PR1225 PR1025 PDL025 KW10 f (mm/rev) f (mm/rev) Carbon Steel 70 170 (50 140) 70 150 (50 120) 70 150 (50 120) 60 130 0.01-0.02 0.01-0.03 0.01-0.04 (0.01 0.05) 0.01-0.04 0.01-0.04 (0.02 0.1) 0.01-0.04 (0.02 0.1) 0.02-0.07 (0.02-0.1) 0.02-0.07 (0.02-0.1) Coolant Alloy Steel 70 170 (50 140) 70 150 (50 120) 70 150 (50 120) 60 130 0.01-0.02 0.01-0.03 0.01-0.04 (0.01 0.05) 0.01-0.04 0.01-0.04 (0.02 0.1) 0.01-0.04 (0.02 0.1) 0.02-0.07 (0.02-0.1) 0.02-0.07 (0.02-0.1) Stainless Steel 60 140 (40 120) 60 120 (40 100) 60 120 (40 100) 50 100 0.005-0.015 0.01-0.02 0.01-0.02 (0.01 0.03) 0.01-0.02 0.01-0.02 (0.01 0.05) 0.01-0.02 (0.01 0.05) 0.01-0.04 (0.01-0.05) 0.01-0.04 (0.01-0.05) Cast Iron - 50 100 0.01-0.03 0.01-0.04 0.01-0.05 0.01-0.05 0.01-0.05 0.01-0.05 0.02-0.08 0.02-0.08 Aluminum 200 500 200 450 0.01-0.03 0.01-0.04 0.01-0.05 0.01-0.05 0.01-0.05 0.01-0.05 0.02-0.08 0.02-0.08 Brass - 100 200 0.01-0.03 0.01-0.04 0.01-0.06 0.01-0.06 0.01-0.06 0.01-0.06 0.02-0.1 0.02-0.1 ( ): Tough edge type (TKF..T..) 1st Recommendation : 2nd Recommendation Recommended Cutting Conditions (in case of using gmm-mt, gmm-tk, gmm-nb type inserts) Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) Edge Width W (mm) Remarks Cermet CVD Coated Carbide PVD Coated Carbide Carbide 1.5 2.0 / 2.5 3.0 4.0 - CR9025 PR915 PR930 KW10 f (mm/rev) Carbon Steel - 80-180 60-150 60-130 - 0.01-0.04 0.02-0.15 0.03-0.20 0.08-0.30 Coolant Alloy Steel - 70-150 60-150 60-130 - 0.01-0.04 0.02-0.15 0.03-0.20 0.08-0.30 Stainless Steel - 60-140 50-140 50-120 - 0.01-0.03 0.02-0.10 0.03-0.15 0.08-0.25 Cast Iron 50-100 0.01-0.05 0.05-0.12 0.10-0.25 0.10-0.30 Aluminum 200-450 0.01-0.05 0.05-0.10 0.05-0.20 0.05-0.25 Brass 0 0 2 0 0.01-0.05 0.05-0.10 0.05-0.15 0.05-0.20 H When machining Steel and Stainless Steel by Insert of PR930, decrease the Feed Rate by 20%. 1st Recommendation : 2nd Recommendation Recommended Cutting Conditions (in case of using tkn, tk& type inserts) Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) Edge Width W (mm) Remarks Cermet CVD Coated Carbide MEGACOAT NANO PVD Coated Carbide Carbide 1.6 2.2 / 2.4 3.1 4.1 4.8-9.6 TN620 TN90 CR9025 PR1535 PR660 PR930 KW10 f (mm/rev) Carbon Steel 60-200 120-200 80-180 60-150 60-130 60-130 - 0.02-0.08 0.04-0.18 0.05-0.25 0.08-0.30 0.15-0.40 Coolant Alloy Steel 60-160 100-160 70-150 60-150 60-130 60-130 - 0.02-0.08 0.04-0.18 0.05-0.25 0.08-0.30 0.15-0.40 Stainless Steel 60-150 80-150 60-140 50-120 50-120 60-140 - 0.02-0.06 0.04-0.12 0.05-0.18 0.08-0.25 0.10-0.30 Cast Iron 50-100 0.02-0.08 0.05-0.12 0.10-0.25 0.10-0.30 0.15-0.35 Aluminum 0 5 0 0.02-0.10 0.05-0.10 0.05-0.20 0.05-0.25 0.10-0.25 Brass 0 0 0 0.02-0.10 0.05-0.10 0.05-0.15 0.05-0.20 0.10-0.25 1st Recommendation : 2nd Recommendation Recommended Cutting Conditions (in case of using gmm-tmr type inserts) Workpiece Material Vc (m/min) f (mm/rev) Remarks Carbon Steel 60-200 0.08-0.18 Coolant Alloy Steel 60-150 Stainless Steel 50-140 H29 Cut-off
