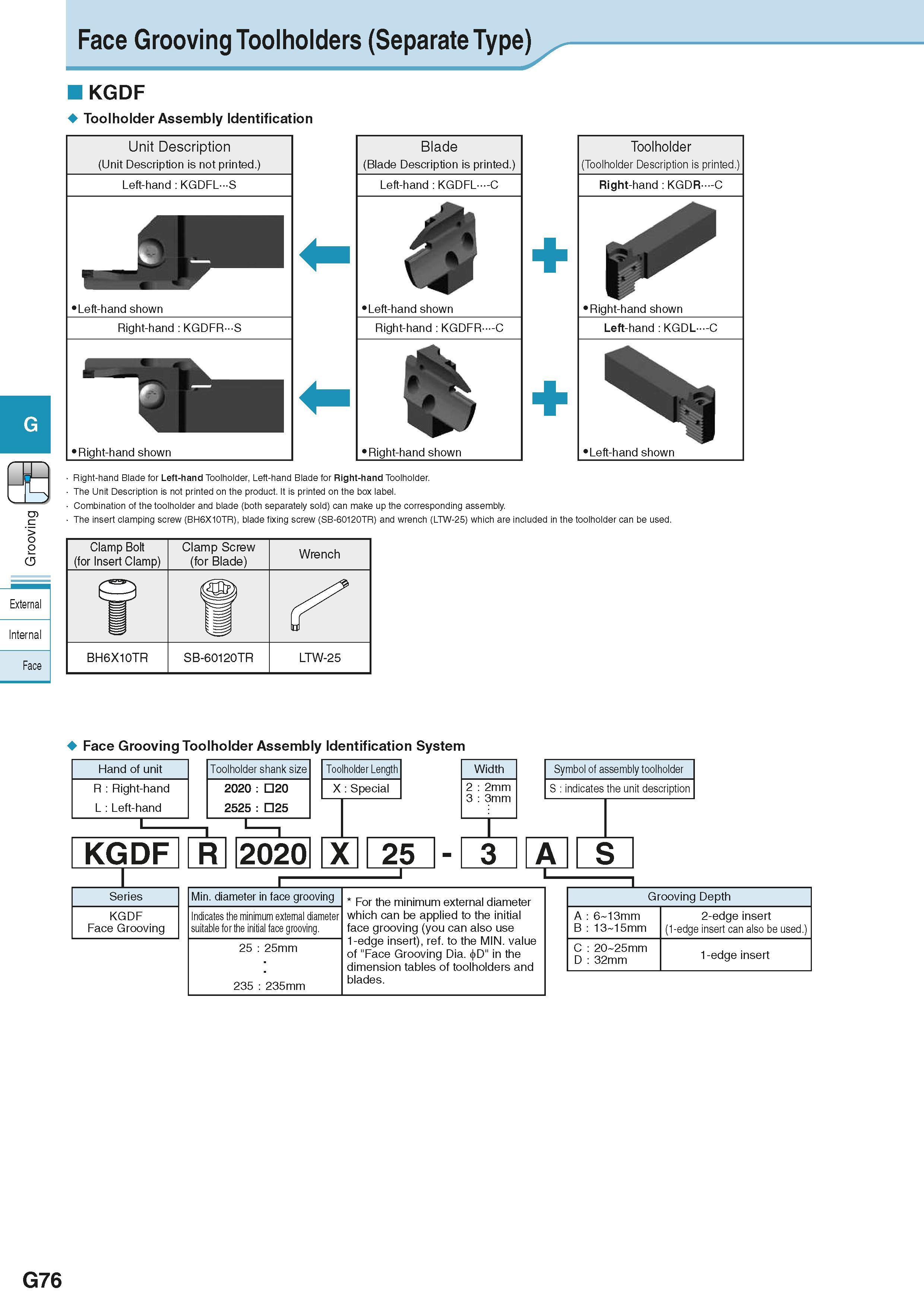

External Internal Face Face Grooving Toolholders (Separate Type) KGDF Toolholder Assembly Identification Unit Description (Unit Description is not printed.) Left-hand KGDFL -S Left-hand shown Right-hand KGDFR -S Right-hand shown Blade (Blade Description is printed.) Left-hand KGDFL-C Left-hand shown Right-hand KGDFR-C Right-hand shown Toolholder (Toolholder Description is printed. Right-hand KGDR C Right-hand shown Left-hand KGDL -C Left-hand shown Right-hand Blade for Left-hand Toolholder, Left-hand Blade for Right-hand Toolholder. The Unit Description is not printed on the product. It is printed on the box label. Combination of the toolholder and blade (both separately sold) can make up the corresponding assembly. The insert clamping screw (BH6X10TR), blade fixing screw (SB-60120TR) and wrench (LTW-25) which are included in the toolholder can be used. Clamp Bolt (for Insert Clamp) Clamp Screw (for Blade) Wrench f u BH6X10TR SB-60120TR LTW-25 Face Grooving Toolholder Assembly Identification System Hand of unit R Right-hand L Left-hand T I Series KGDF Face Grooving Toolholder shank size Toolholder Length Width Symbol of assembly toolholder 2020 D20 X Special 2 2mm 3 3mm S indicates the unit description 2525 D25 KGDF R 2020 X 25 c T 3 A n S Min. diameter in face grooving Indicates the minimum external diameter suitable for the initial face grooving. 25 25mm 235 235mm For the minimum external diameter which can be applied to the initial face grooving (you can also use 1-edge insert), ref. to the MIN. value of "Face Grooving Dia.
