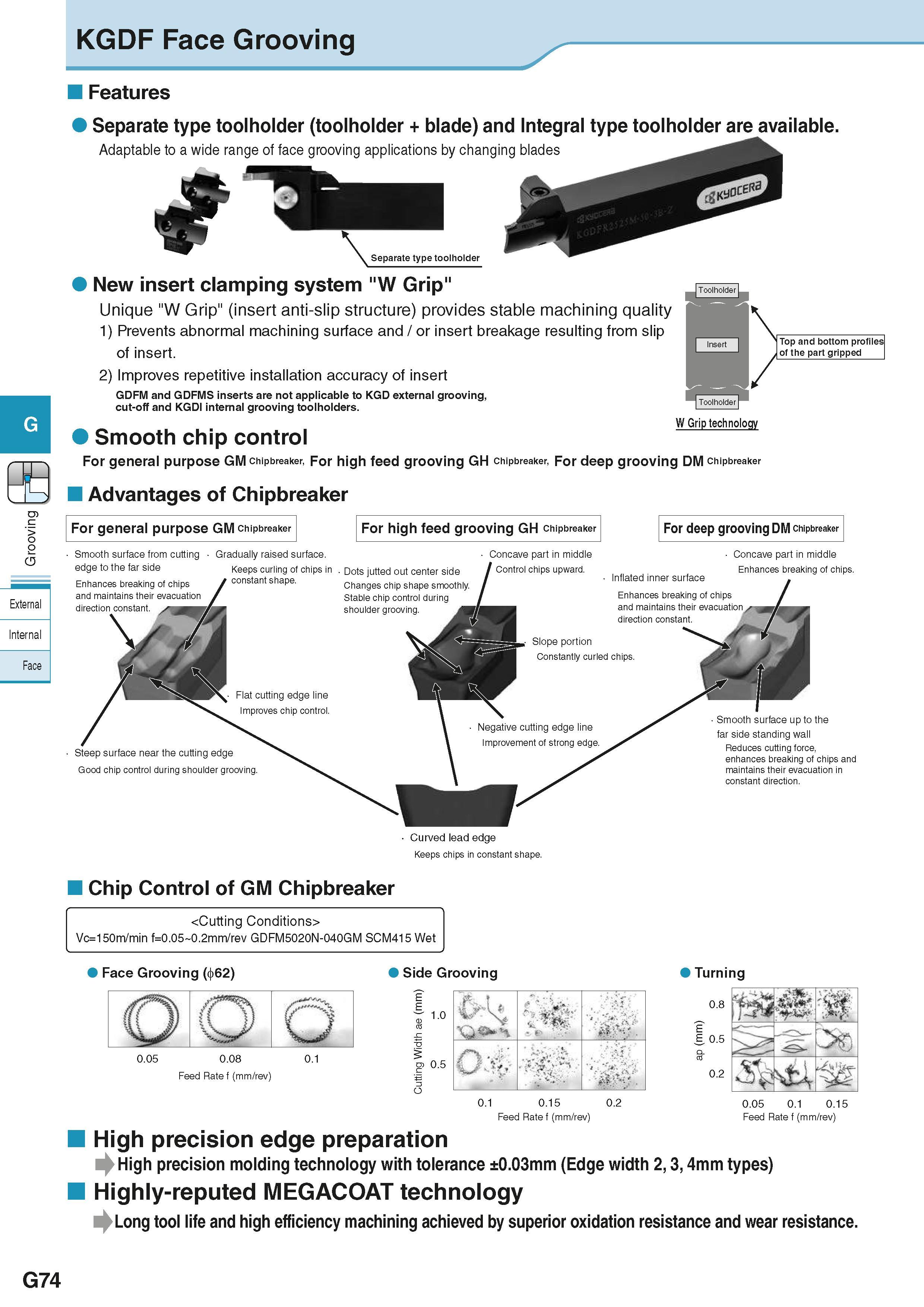

KGDF Face Grooving External Internal Face Features Separate type toolholder (toolholder + blade) and Integral type toolholder are available. Adaptable to a wide range of face grooving applications by changing blades Toolholder New insert clamping system "W Grip" Unique "W Grip" (insert anti-slip structure) provides stable machining quality 1) Prevents abnormal machining surface and / or insert breakage resulting from slip of insert. 2) Improves repetitive installation accuracy of insert GDFM and GDFMS inserts are not applicable to KGD external grooving, cut-off and KGDI internal grooving toolholders. W Grip technology Smooth chip control For general purpose GM chipbreaker, For high feed grooving GH chipbreaker, For deep grooving DM chipbreaker Advantages of Chipbreaker \ Top and bottom profiles of the part gripped For general purpose GM Chipbreaker For high feed grooving GH Chipbreaker For deep grooving DM Chipbreaker Smooth surface from cutting edge to the far side Enhances breaking of chips and maintains their evacuation direction constant. Gradually raised surface. Keeps curling of chips in constant shape. Concave part in middle Control chips upward. Concave part in middle Enhances breaking of chips. Steep surface near the cutting edge Good chip control during shoulder grooving. Smooth surface up to the far side standing wall Reduces cutting force, enhances breaking of chips and maintains their evacuation in constant direction. Curved lead edge Keeps chips in constant shape. Chip Control of GM Chipbreaker Vc=150m/min f=0.05 0.2mm/rev GDFM5020N-040GM SCM415 Wet Face Grooving ( 62) Side Grooving Turning Q.Q5 Q.Q8 Q.1 Feed Rate f (mm/rev) Q.1 Q.15 Q.2 Feed Rate f (mm/rev) Q.Q5 Q.1 Q.15 Feed Rate f (mm/rev) High precision edge preparation High precision molding technology with tolerance ±0.03mm (Edge width 2,3, 4mm types) Highly-reputed MEGACOAT technology Long tool life and high efficiency machining achieved by superior oxidation resistance and wear resistance. G G74
