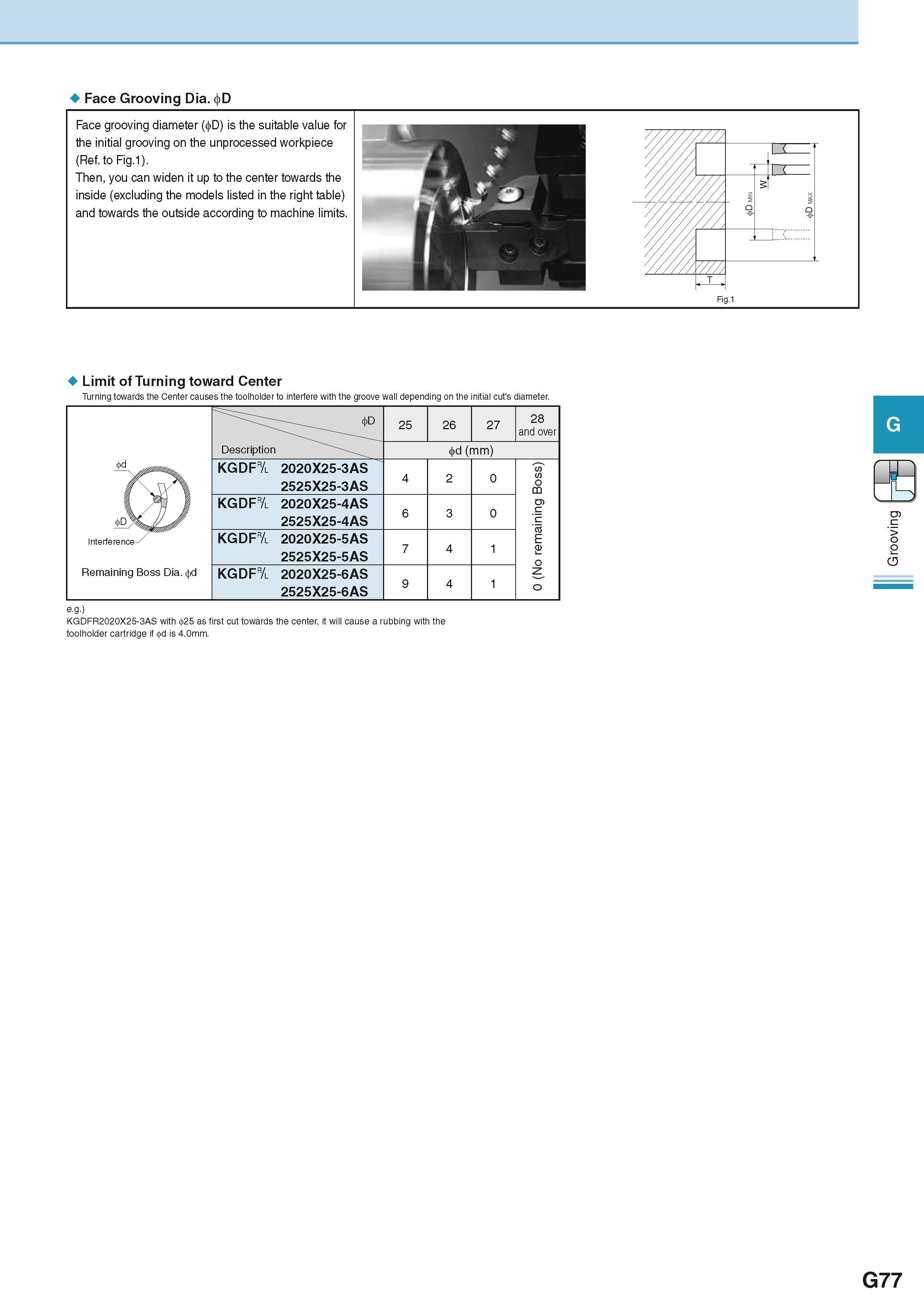

Face Grooving Dia. tD Face grooving diameter (tD) is the suitable value for the initial grooving on the unprocessed workpiece (Ref. to Fig.1). Then, you can widen it up to the center towards the inside (excluding the models listed in the right table) and towards the outside according to machine limits. Limit of Turning toward Center Turning towards the Center causes the toolholder to interfere with the groove wall depending on the initial cut's diameter Remaining Boss Dia. e.g.) KGDFR2Q2QX25-3AS with t25 as first cut towards the center, it will cause a rubbing with the toolholder cartridge if td is 4.0mm. Description t>D 25 26 27 28 and over td (mm) KGDF& 2020X25-3AS 2525X25-3AS 4 2 (No remaining Boss) KGDF& 2020X25-4AS 2525X25-4AS 6 3 Q KGDF& 2020X25-5AS 2525X25-5AS 7 4 1 KGDF& 2020X25-6AS 2525X25-6AS 9 4 1 > <5 G77
