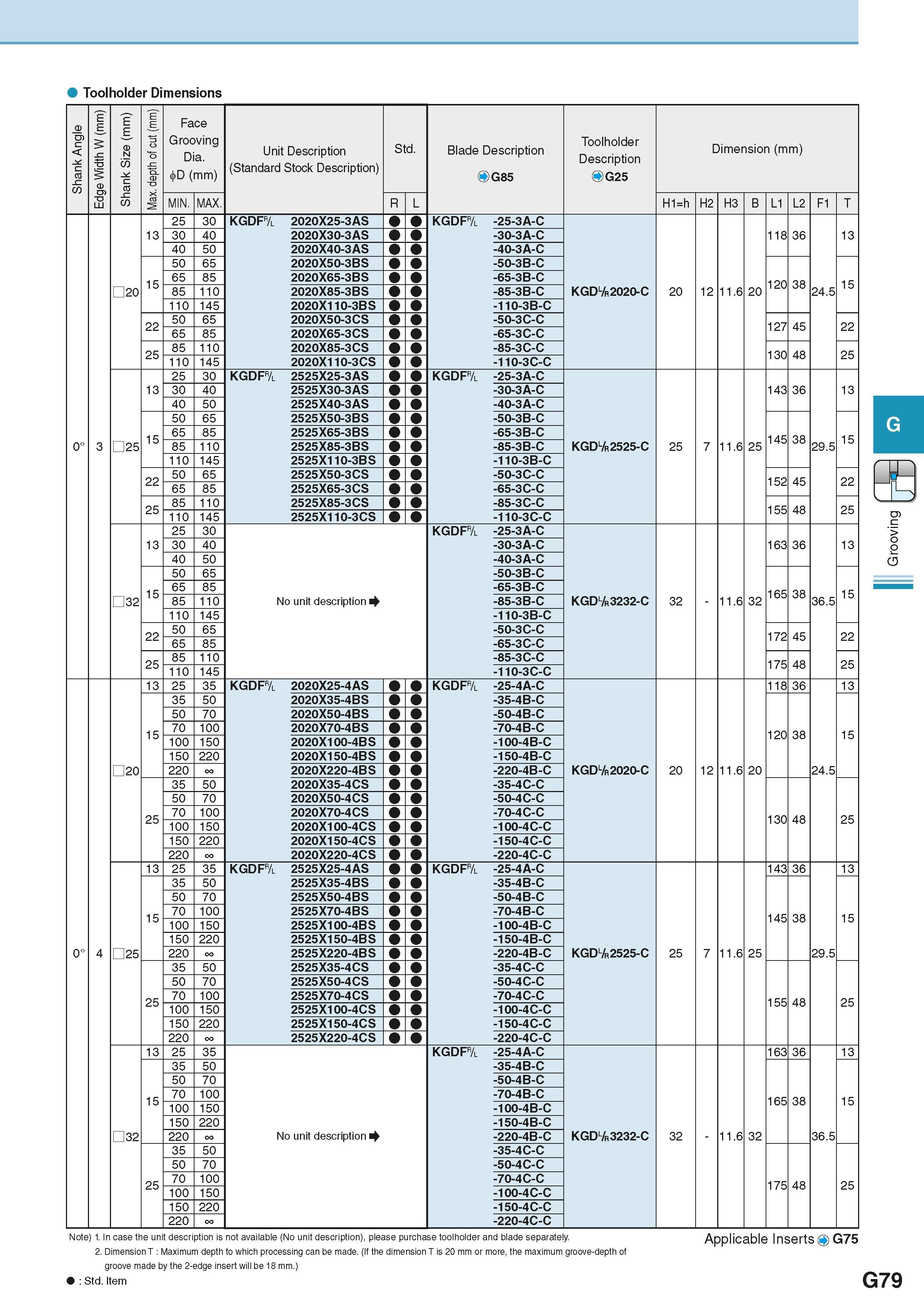

Toolholder Dimensions Shank Size (mm) Max. depth of cut (mm) Face Grooving Dia. D (mm) Unit Description (Standard Stock Description) Std. Blade Description OG85 Toolholder Description OG25 Dimension (mm) Размеры инструмента указаны в мм MIN. MAX. R L H1=h H2 H3 B L1 L2 F1 T 25 30 KGDF& 2020X25-3AS KGDF& -25-3A-C 13 30 40 2020X30-3AS -30-3A-C 118 36 13 40 50 2020X40-3AS -40-3A-C 50 65 2020X50-3BS -50-3B-C 15 65 85 2020X65-3BS -65-3B-C 120 38 15 n20 85 110 2020X85-3BS -85-3B-C KGDl/r2020-C 20 12 11.6 20 24.5 110 145 2020X110-3BS -110-3B-C 22 50 65 2020X50-3CS -50-3C-C 127 45 22 65 85 2020X65-3CS -65-3C-C 25 85 110 2020X85-3CS -85-3C-C 130 48 25 110 145 2020X110-3CS -110-3C-C 25 30 KGDF& 2525X25-3AS KGDF& -25-3A-C 13 30 40 2525X30-3AS -30-3A-C 143 36 13 40 50 2525X40-3AS -40-3A-C 50 65 2525X50-3BS -50-3B-C 15 65 85 2525X65-3BS -65-3B-C 145 38 15 1 125 85 110 2525X85-3BS -85-3B-C KGDl/r2525-C 25 7 11.6 25 29.5 110 145 2525X110-3BS -110-3B-C 22 50 65 2525X50-3CS -50-3C-C 152 45 22 65 85 2525X65-3CS -65-3C-C 25 85 110 2525X85-3CS -85-3C-C 155 48 25 110 145 2525X110-3CS -110-3C-C 25 30 KGDF& -25-3A-C 13 30 40 -30-3A-C 163 36 13 40 50 -40-3A-C 50 65 -50-3B-C 15 65 85 -65-3B-C 165 38 15 n32 85 110 No unit description -85-3B-C KGDl/r3232-C 32 - 11.6 32 36.5 110 145 -110-3B-C 22 50 65 -50-3C-C 172 45 22 65 85 -65-3C-C 25 85 110 -85-3C-C 175 48 25 110 145 -110-3C-C 13 25 35 KGDF& 2020X25-4AS KGDF& -25-4A-C 118 36 13 35 50 2020X35-4BS -35-4B-C 50 70 2020X50-4BS -50-4B-C 15 70 100 2020X70-4BS -70-4B-C 120 38 15 100 150 2020X100-4BS -100-4B-C 150 220 2020X150-4BS -150-4B-C n20 220 M 2020X220-4BS -220-4B-C KGDL/n2020-C 20 12 11.6 20 24.5 35 50 2020X35-4CS -35-4C-C 50 70 2020X50-4CS -50-4C-C 25 70 100 2020X70-4CS -70-4C-C 130 48 25 100 150 2020X100-4CS -100-4C-C 150 220 2020X150-4CS -150-4C-C 220 M 2020X220-4CS -220-4C-C 13 25 35 KGDF& 2525X25-4AS KGDF& -25-4A-C 143 36 13 35 50 2525X35-4BS -35-4B-C 50 70 2525X50-4BS -50-4B-C 15 70 100 2525X70-4BS -70-4B-C 145 38 15 100 150 2525X100-4BS -100-4B-C 150 220 2525X150-4BS -150-4B-C n25 220 M 2525X220-4BS -220-4B-C KGDl/r2525-C 25 7 11.6 25 29.5 35 50 2525X35-4CS -35-4C-C 50 70 2525X50-4CS -50-4C-C 25 70 100 2525X70-4CS -70-4C-C 155 48 25 100 150 2525X100-4CS -100-4C-C 150 220 2525X150-4CS -150-4C-C 220 M 2525X220-4CS -220-4C-C 13 25 35 KGDF& -25-4A-C 163 36 13 35 50 -35-4B-C 50 70 -50-4B-C 15 70 100 -70-4B-C 165 38 15 100 150 -100-4B-C 150 220 -150-4B-C n32 220 M No unit description -220-4B-C KGDl/r3232-C 32 - 11.6 32 36.5 35 50 -35-4C-C 50 70 -50-4C-C 25 70 100 -70-4C-C 175 48 25 100 150 -100-4C-C 150 220 -150-4C-C 220 M -220-4C-C > 5 Note) 1. In case the unit description is not available (No unit description), please purchase toolholder and blade separately. 2. Dimension T Maximum depth to which processing can be made. (If the dimension T is 20 mm or more, the maximum groove-depth of groove made by the 2-edge insert will be 18 mm.) Std. Item Applicable Inserts O G75 G79 3 4
