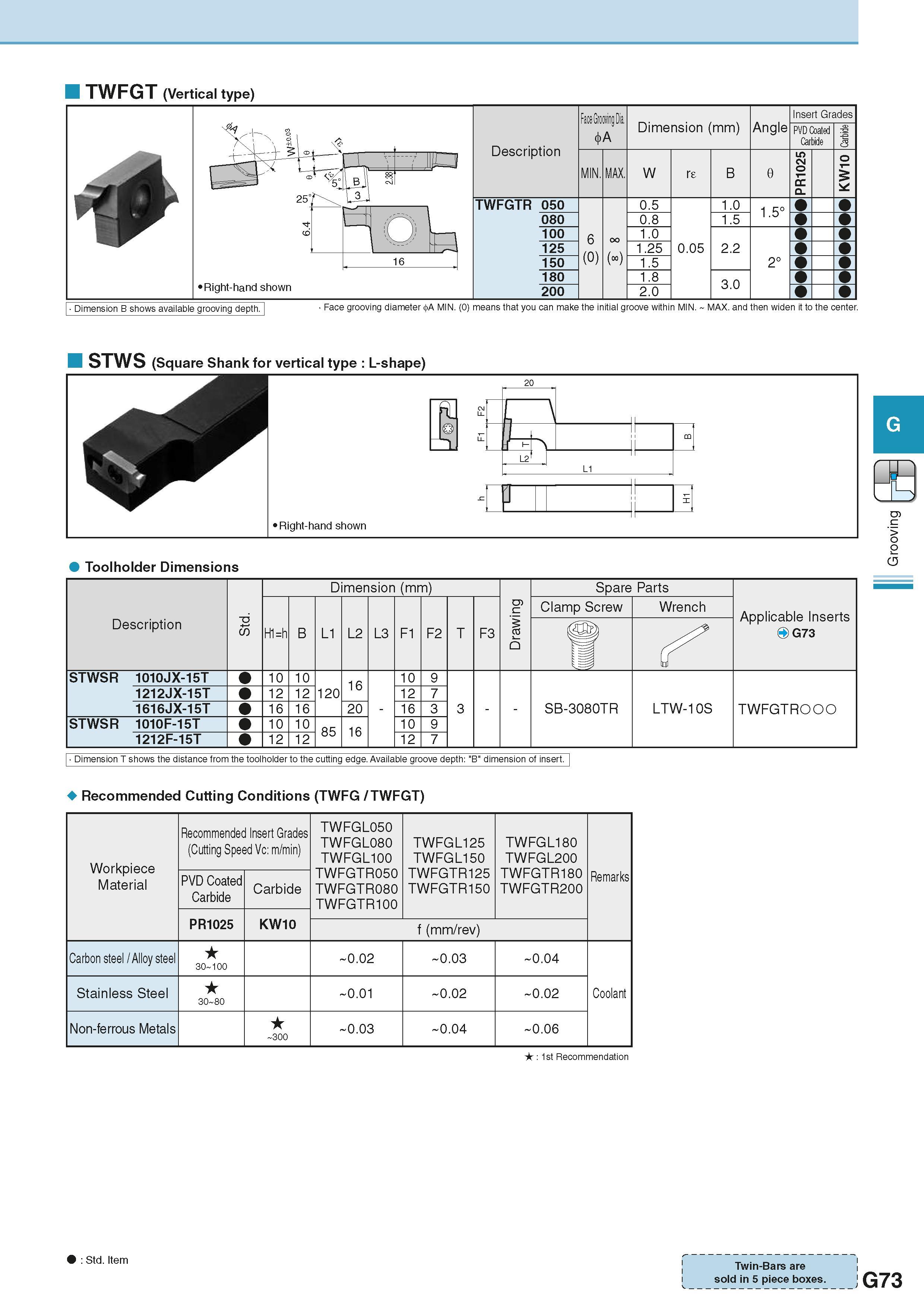

TWFGT (Vertical type) Right-hand shown Description TWFGTR 050 080 100 125 150 180 200 < A MIN. 6 (0) MAX. Dimension (mm) Размеры инструмента указаны в мм W 0.5 1.0 1.25 1.5 2.0 re 0.05 1.0 1.5 2.2 3.0 Angle 1.5° 2° Insert Grades PVD Coated Carbide Dimension B shows available grooving depth. Face grooving diameter 4>A MIN. (0) means that you can make the initial groove within MIN. MAX. and then widen it to the center. STWS (Square Shank for vertical type L-shape) Toolholder Dimensions Dimension (mm) Размеры инструмента указаны в мм Spare Parts td. w Drawing Clamp Screw Wrench Applicable Inserts O G73 Description H1=h B L1 L2 L3 F1 F2 T F3 Uf STWSR 1010JX-15T 10 10 16 10 9 1212JX-15T 12 12 120 12 7 1616JX-15T 16 16 20 - 16 3 3 SB-3080TR LTW-10S TWFGTROOO STWSR 1010F-15T 10 10 85 16 10 9 1212F-15T 12 12 12 7 Dimension T shows the distance from the toolholder to the cutting edge. Available groove depth: "B" dimension of insert. Recommended Cutting Conditions (TWFG / TWFGT) B 0 Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) TWFGL050 TWFGL080 TWFGL100 TWFGTR050 TWFGTR080 TWFGTR100 TWFGL125 TWFGL150 TWFGTR125 TWFGTR150 TWFGL180 TWFGL200 TWFGTR180 TWFGTR200 Remarks PVD Coated Carbide Carbide PR1025 KW10 f (mm/rev) Carbon steel / Alloy steel 30 100 0.02 0.03 0.04 Coolant Stainless Steel 30 80 0.01 0.02 0.02 Non-ferrous Metals 300 0.03 0.04 0.06 1st Recommendation Std Item Twin-Bars" are" sold in 5 piece boxes. J G73
