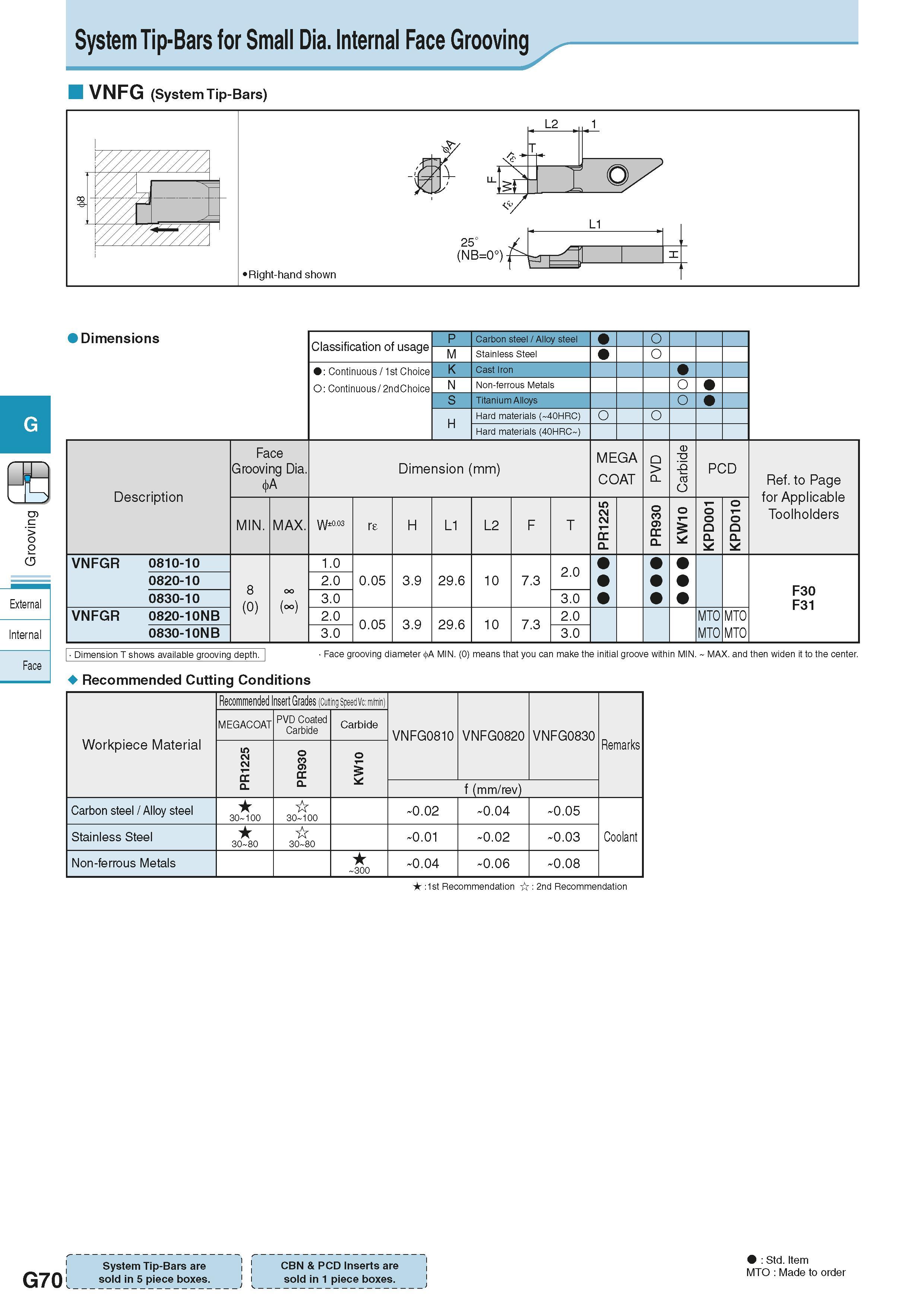

System Tip-Bars for Small Dia. Internal Face Grooving VNFG (System Tip-Bars) Dimensions Classification of usage P Carbon steel / Alloy steel O M Stainless Steel O Continuous / 1st Choice O: Continuous / 2nd Choice K Cast Iron N Non-ferrous Metals O S Titanium Alloys O H Hard materials ( 40HRC) Hard materials (40HRC ) Description Face Grooving Dia. < A Dimension (mm) Размеры инструмента указаны в мм MEGA COAT PVD Carbide PCD Ref. to Page for Applicable Toolholders MIN. MAX. W±0.03 re H L1 L2 F T PR1225 PR930 KW10 KPD001 KPD010 VNFGR 0810-10 8 (0) H 1.0 0.05 3.9 29.6 10 7.3 2.0 F30 F31 0820-10 2.0 0830-10 3.0 3.0 VNFGR 0820-10NB 2.0 0.05 3.9 29.6 10 7.3 2.0 MTO MTO MTO MTO 0830-10NB 3.0 3.0 External Internal Face Dimension T shows available grooving depth. Face grooving diameter MIN. (0) means that you can make the initial groove within MIN. MAX. and then widen it to the center. Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: m/min) Workpiece Material MEGACOAT PVD Coated Carbide Carbide VNFG0810 VNFG0820 VNFG0830 Remarks PR1225 PR930 KW10 f (mm/rev) Carbon steel / Alloy steel 30 100 30 100 0.02 0.04 0.05 Stainless Steel 30 80 30 80 0.01 0.02 0.03 Coolant Non-ferrous Metals 300 0.04 0.06 0.08 :1st Recommendation 2nd Recommendation System Tip-Bars are CBN & PCD Inserts are tdJtem. 1 1 MTO Made to order G701 sold in 5 piece boxes. J i sold in 1 piece boxes. J
