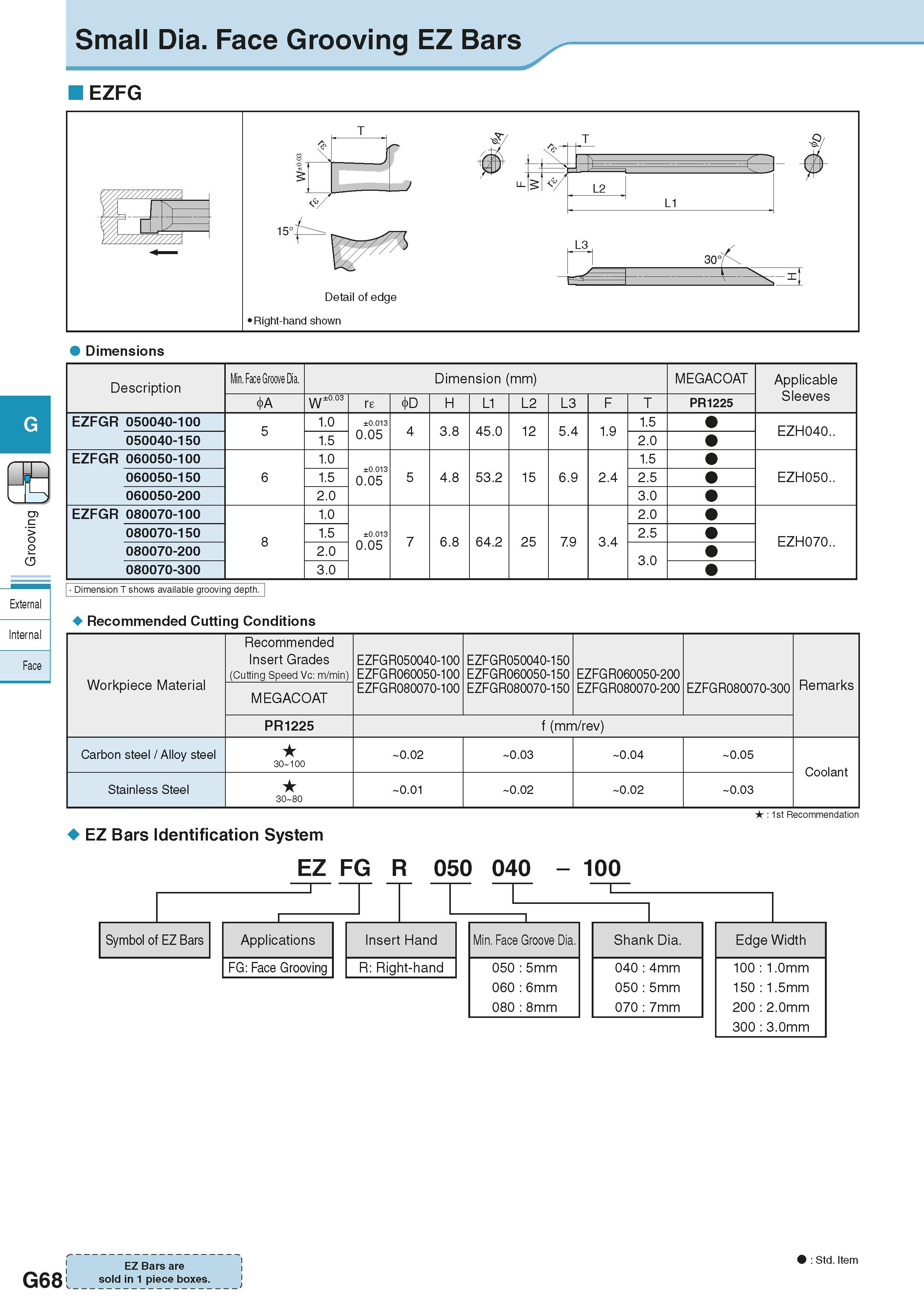

Small Dia. Face Grooving EZ Bars EZFG Detail of edge Right-hand shown Dimensions Description Min. Face Groove Dia. Dimension (mm) Размеры инструмента указаны в мм MEGACOAT Applicable Sleeves W±003 re < D H L1 L2 L3 F T PR1225 EZFGR 050040-100 5 1.0 ±0.013 0.05 4 3.8 45.0 12 5.4 1.9 1.5 EZH040.. 050040-150 1.5 2.0 EZFGR 060050-100 6 1.0 ±0.013 0.05 5 4.8 53.2 15 6.9 2.4 1.5 EZH050.. 060050-150 1.5 2.5 060050-200 2.0 3.0 EZFGR 080070-100 8 1.0 ±0.013 0.05 7 6.8 64.2 25 7.9 3.4 2.0 EZH070.. 080070-150 1.5 2.5 080070-200 2.0 3.0 080070-300 3.0 External Internal Dimension T shows available grooving depth. Recommended Cutting Conditions Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) EZFGR050040-100 EZFGR060050-100 EZFGR080070-100 EZFGR050040-150 EZFGR060050-150 EZFGR080070-150 EZFGR060050-200 EZFGR080070-200 EZFGR080070-300 Remarks MEGACOAT PR1225 f (mm/rev) Carbon steel / Alloy steel 30 100 0.02 0.03 0.04 0.05 Coolant Stainless Steel 30 80 0.01 0.02 0.02 0.03 Face 1st Recommendation EZ Bars Identification System EZ FG R 050 040 - 100 Symbol of EZ Bars Applications Insert Hand FG: Face Grooving R: Right-hand n Min. Face Groove Dia. 050 5mm 060 6mm 080 8mm Shank Dia. 040 4mm 050 5mm 070 7mm Edge Width 100 150 200 300 1.0mm 1.5mm 2.0mm 3.0mm T c-7 Std. Item i EZ Bars are i G68 i sold in 1 piece boxes. j
