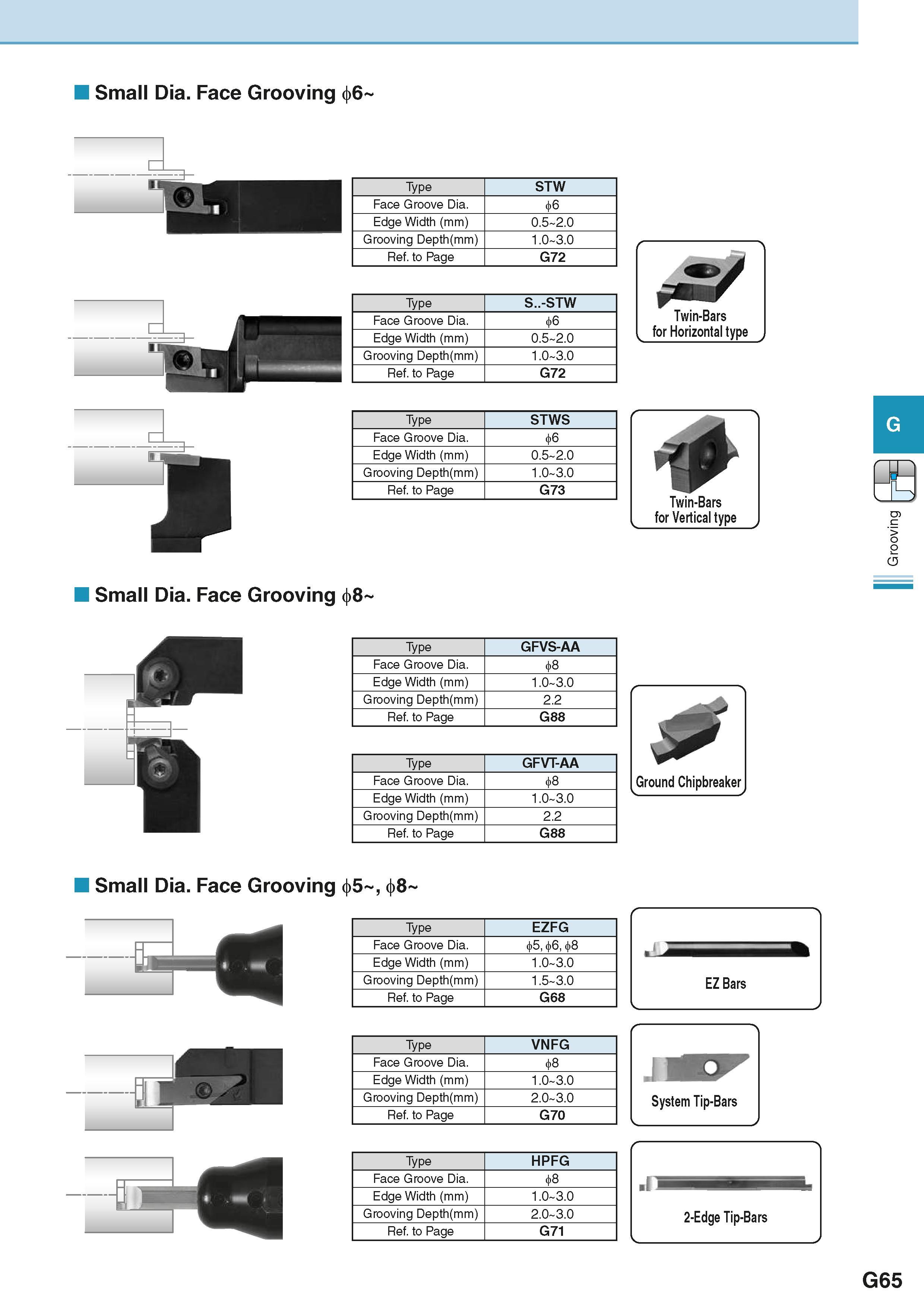

Small Dia. Face Grooving 6 Type STW Face Groove Dia. 6 Edge Width (mm) 0.5 2.0 Grooving Depth(mm) 1.0 3.0 Ref. to Page G72 Type S..-STW Face Groove Dia. 6 Edge Width (mm) 0.5 2.0 Grooving Depth(mm) 1.0 3.0 Ref. to Page G72 Type STWS Face Groove Dia. 6 Edge Width (mm) 0.5 2.0 Grooving Depth(mm) 1.0 3.0 Ref. to Page G73 Twin-Bars for Vertical type > 5 Small Dia. Face Grooving 8 Type GFVS-AA Face Groove Dia. 8 Edge Width (mm) 1.0 3.0 Grooving Depth(mm) 2.2 Ref. to Page G88 Type GFVT-AA Face Groove Dia. 8 Edge Width (mm) 1.0 3.0 Grooving Depth(mm) 2.2 Ref. to Page G88 Small Dia. Face Grooving 5 8 Type EZFG Face Groove Dia. 5, 6, 8 Edge Width (mm) 1.0 3.0 Grooving Depth(mm) 1.5 3.0 Ref. to Page G68 Type VNFG Face Groove Dia. 8 Edge Width (mm) 1.0 3.0 Grooving Depth(mm) 2.0 3.0 Ref. to Page G70 Type HPFG Face Groove Dia. 8 Edge Width (mm) 1.0 3.0 Grooving Depth(mm) 2.0 3.0 Ref. to Page G71 G65
