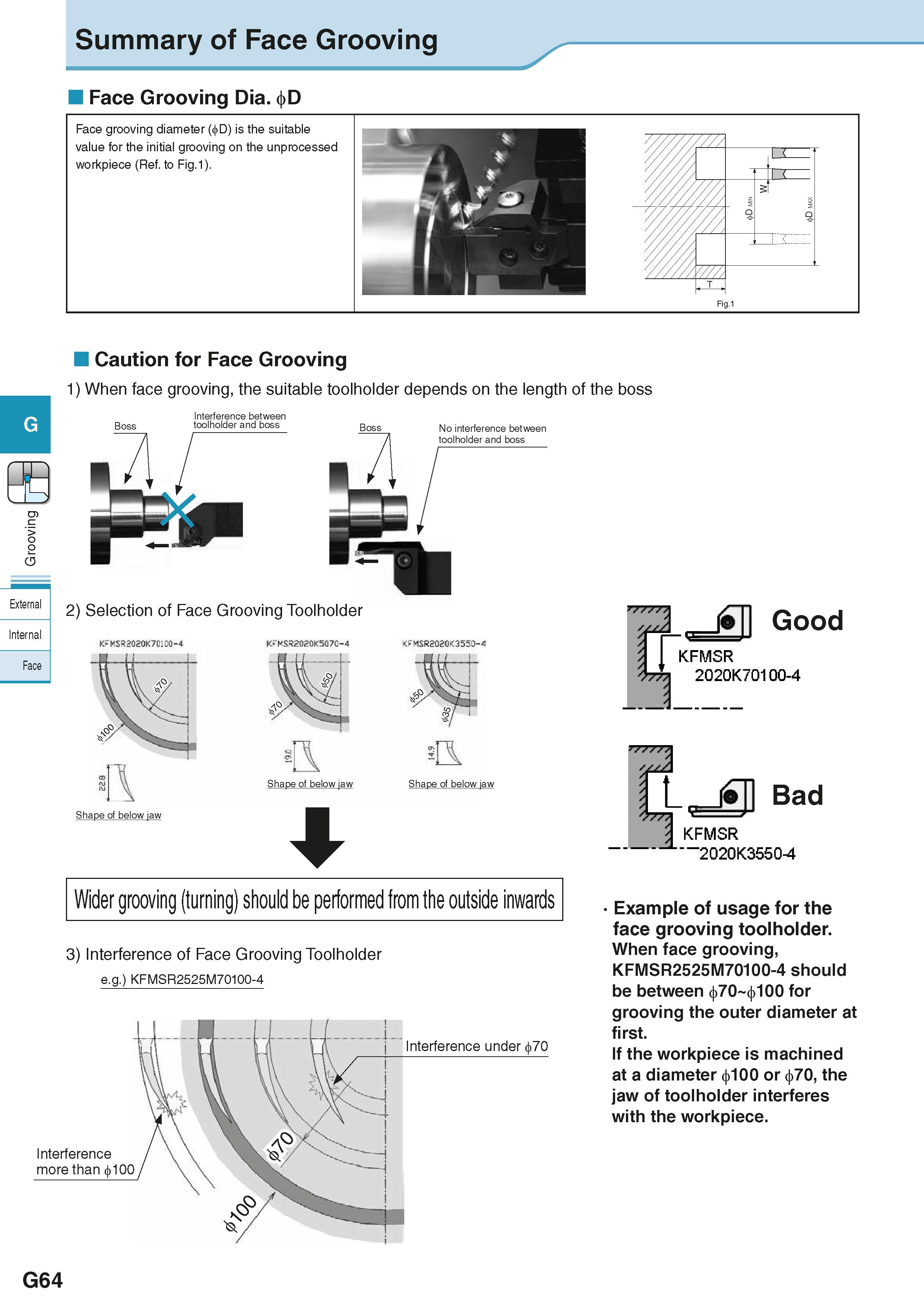

Summary of Face Grooving Face Grooving Dia. D Face grooving diameter ( D) is the suitable value for the initial grooving on the unprocessed workpiece (Ref. to Fig.1). Fig.1 R > <5 External Internal Face Caution for Face Grooving 1) When face grooving, the suitable toolholder depends on the length of the boss Boss Interference between toolholder and boss Boss No interference between toolholder and boss 2) Selection of Face Grooving Toolholder K-MSR2020K507C-4 KF MSR2020<3550-£ / J Shape of below jaw Shape of below jaw Shape of below jaw Wider grooving (turning) should be performed from the outside inwards 3) Interference of Face Grooving Toolholder e.g.) KFMSR2525M70100-4 KFMSR 2020K70100-4 777771 CU Bad l.KFI KFMSR '2020K3550-4 Example of usage for the face grooving toolholder. When face grooving, KFMSR2525M70100-4 should be between f70 100 for grooving the outer diameter at first. If the workpiece is machined at a diameter 100 or f70, the jaw of toolholder interferes with the workpiece. G64
