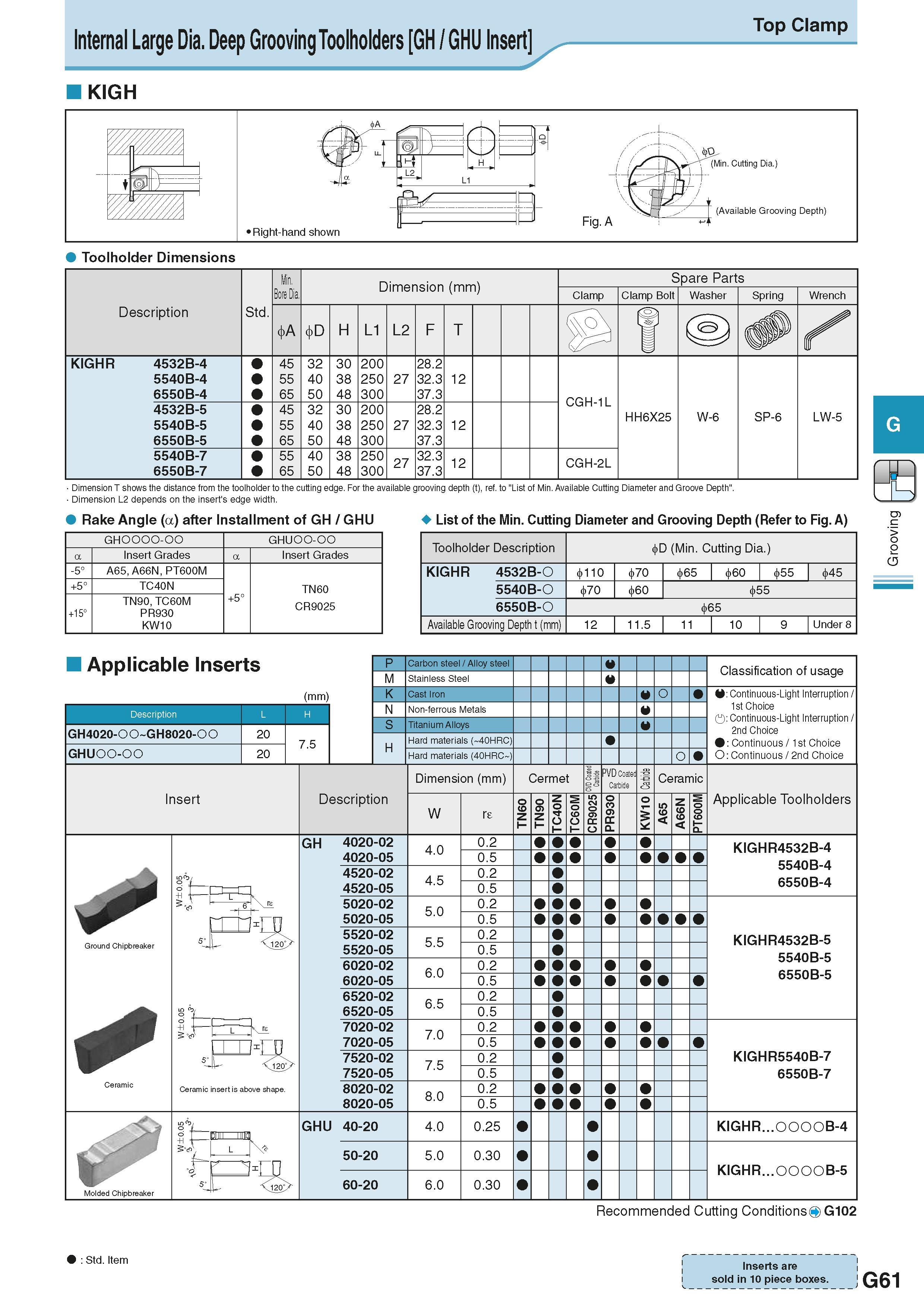

Internal Large Dia. Deep Grooving Toolholders GH / GHU Insert KIGH Top Clamp Toolholder Dimensions Description Обозначение инструмента для заказа Std. Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Clamp Clamp Bolt Washer Spring Wrench A D H L1 L2 F T P f KIGHR 4532B-4 5540B-4 6550B-4 45 55 65 32 40 50 30 38 48 200 250 300 27 28.2 32.3 37.3 12 CGH-1L HH6X25 W-6 SP-6 LW-5 4532B-5 5540B-5 6550B-5 45 55 65 32 40 50 30 38 48 200 250 300 27 28.2 32.3 37.3 12 5540B-7 6550B-7 55 65 40 50 38 48 250 300 27 32.3 37.3 12 CGH-2L m Ed > 5 Dimension T shows the distance from the toolholder to the cutting edge. For the available grooving depth (t), ref. to "List of Min. Available Cutting Diameter and Groove Depth". Dimension L2 depends on the insert's edge width. Rake Angle (a) after Installment of GH / GHU List of the Min. Cutting Diameter and Grooving Depth (Refer to Fig. A) GHOOOO-OO GHUOO-OO a Insert Grades a Insert Grades -5° A65, A66N, PT600M +5° TC40N TN60 +15° TN90, TC60M PR930 KW10 +5° CR9025 Toolholder Description D (Min. Cutting Dia.) KIGHR 4532B-O 110 70 65 60 55
