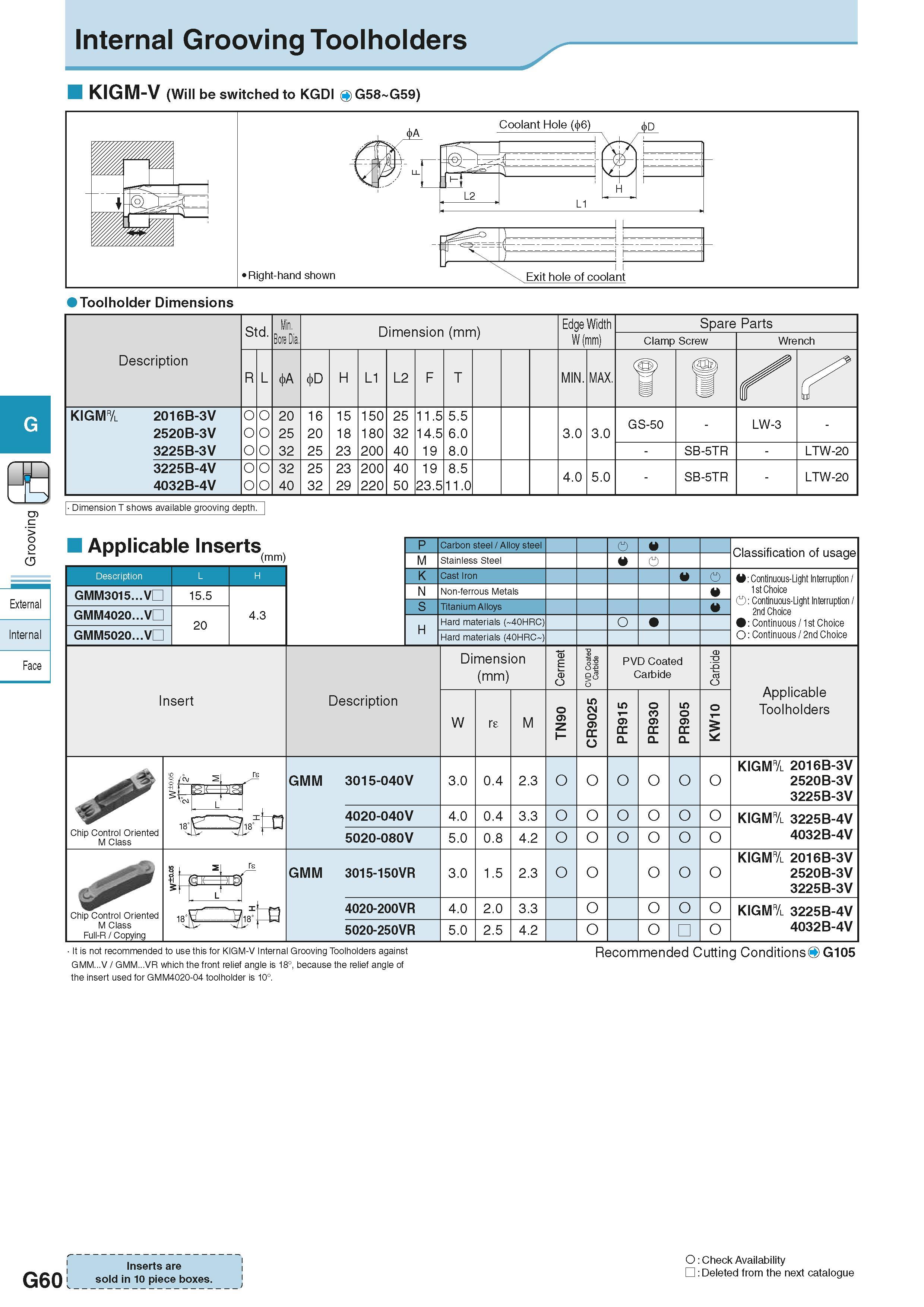

Internal Grooving Toolholders KIGM-V (Will be switched to KGDI Q G58 G59) Description Обозначение инструмента для заказа Std. Min. Bore Dia Dimension (mm) Размеры инструмента указаны в мм Edge Width W (mm) Spare Parts Clamp Screw Wrench R L < A < D H L1 L2 F T MIN. MAX. u 2 ) KIGM& 2016B-3V 2520B-3V 3225B-3V 20 25 32 16 20 25 15 18 23 150 180 200 25 32 40 11.5 14.5 19 5.5 6.0 8.0 3.0 3.0 GS-50 - LW-3 SB-5TR - LTW-20 3225B-4V 4032B-4V 32 40 25 32 23 29 200 220 40 50 19 23.5 8.5 11.0 4.0 5.0 - SB-5TR - LTW-20 Dimension T shows available grooving depth. External Internal Face Applicable Inserts (mm) GMM3015...V GMM4020...V GMM5020...V 15.5 20 4.3 M K N S Carbon steel / Alloy steel Stainless Steel Non-ferrous Metals Titanium Alloys Hard materials ( 40HRC) Hard materials (40HRC ) O o Classification of usage V: Continuous-Light Interruption / 1st Choice O: Continuous-Light Interruption / 2nd Choice Continuous / 1st Choice O: Continuous / 2nd Choice Insert Description Dimension (mm) Размеры инструмента указаны в мм o PVD Coated Carbide W re M 0 9 5 2 0 9 R C 9 R Q 0 3 9 R CL 5 0 9 R CL Applicable Toolholders Chip Control Oriented M Class GMM 3015-040V 3.0 0.4 2.3 KIGM& 2016B-3V 2520B-3V 3225B-3V 4020-040V 4.0 0.4 3.3 o 5020-080V 5.0 0.8 4.2 o" KIGM& 3225B-4V 4032B-4V Chip Control Oriented M Class Full-R / Copying GMM 3015-150VR 3.0 1.5 2.3 o KIGM& 2016B-3V 2520B-3V 3225B-3V 4020-200VR 4.0 2.0 3.3 o 5020-250VR 5.0 2.5 4.2 o o" KIGM& 3225B-4V 4032B-4V It is not recommended to use this for KIGM-V Internal Grooving Toolholders against GMM...V / GMM...VR which the front relief angle is 18°, because the relief angle of the insert used for GMM4020-04 toolholder is 10°. Recommended Cutting ConditionsO G105 G60 Inserts are sold in 10 piece boxes. o Check Availability Deleted from the next catalogue G P L H H
