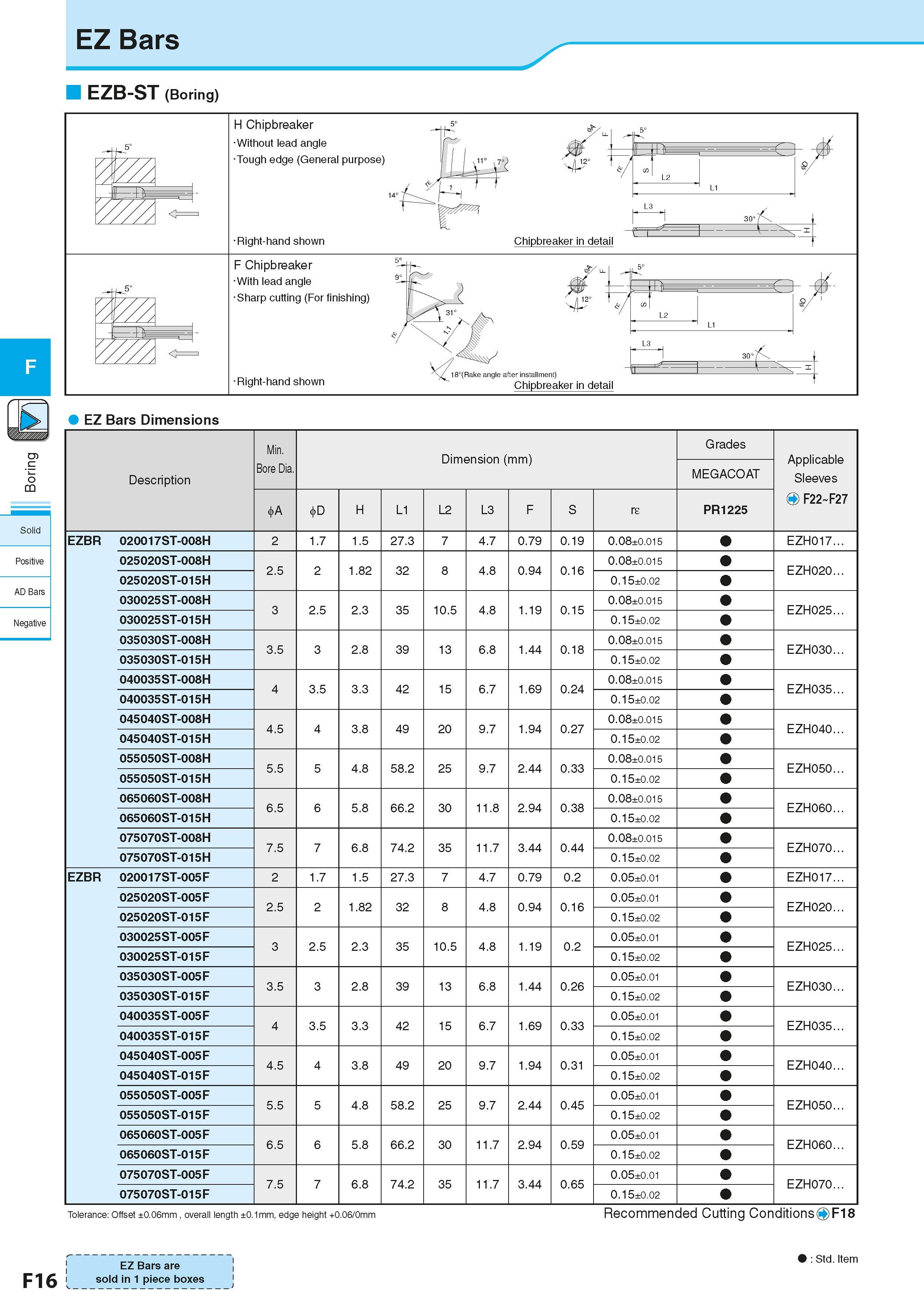

EZ Bars g in or B Solid Positive AD Bars Negative F16 EZB-ST (Boring) H Chipbreaker Without lead angle Tough edge (General purpose) Right-hand shown L, 5° -1 F Chipbreaker With lead angle Sharp cutting (For finishing) Right-hand shown EZ Bars Dimensions Description Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Grades Applicable Sleeves O F22 F27 MEGACOAT A D H L1 L2 L3 F S re PR1225 EZBR 020017ST-008H 2 1.7 1.5 27.3 7 4.7 0.79 0.19 0.08±0.015 EZH017... 025020ST-008H 2.5 2 1.82 32 8 4.8 0.94 0.16 0.08±0.015 EZH020... 025020ST-015H 0.15±0.02 030025ST-008H 3 2.5 2.3 35 10.5 4.8 1.19 0.15 0.08±0.015 EZH025... 030025ST-015H 0.15±0.02 035030ST-008H 3.5 3 2.8 39 13 6.8 1.44 0.18 0.08±0.015 EZH030. 035030ST-015H 0.15±0.02 040035ST-008H 4 3.5 3.3 42 15 6.7 1.69 0.24 0.08±0.015 EZH035. 040035ST-015H 0.15±0.02 045040ST-008H 4.5 4 3.8 49 20 9.7 1.94 0.27 0.08±0.015 EZH040. 045040ST-015H 0.15±0.02 055050ST-008H 5.5 5 4.8 58.2 25 9.7 2.44 0.33 0.08±0.015 EZH050. 055050ST-015H 0.15±0.02 065060ST-008H 6.5 6 5.8 66.2 30 11.8 2.94 0.38 0.08±0.015 EZH060. 065060ST-015H 0.15±0.02 075070ST-008H 7.5 7 6.8 74.2 35 11.7 3.44 0.44 0.08±0.015 EZH070. 075070ST-015H 0.15±0.02 EZBR 020017ST-005F 2 1.7 1.5 27.3 7 4.7 0.79 0.2 0.05±0.01 EZH017... 025020ST-005F 2.5 2 1.82 32 8 4.8 0.94 0.16 0.05±0.01 EZH020. 025020ST-015F 0.15±0.02 030025ST-005F 3 2.5 2.3 35 10.5 4.8 1.19 0.2 0.05±0.01 EZH025. 030025ST-015F 0.15±0.02 035030ST-005F 3.5 3 2.8 39 13 6.8 1.44 0.26 0.05±0.01 EZH030. 035030ST-015F 0.15±0.02 040035ST-005F 4 3.5 3.3 42 15 6.7 1.69 0.33 0.05±0.01 EZH035. 040035ST-015F 0.15±0.02 045040ST-005F 4.5 4 3.8 49 20 9.7 1.94 0.31 0.05±0.01 EZH040. 045040ST-015F 0.15±0.02 055050ST-005F 5.5 5 4.8 58.2 25 9.7 2.44 0.45 0.05±0.01 EZH050. 055050ST-015F 0.15±0.02 065060ST-005F 6.5 6 5.8 66.2 30 11.7 2.94 0.59 0.05±0.01 EZH060. 065060ST-015F 0.15±0.02 075070ST-005F 7.5 7 6.8 74.2 35 11.7 3.44 0.65 0.05±0.01 EZH070. 075070ST-015F 0.15±0.02 Tolerance: Offset ±0.06mm overall length ±0.1mm, edge height +0.06/0mm Recommended Cutting ConditionsQ F18 EZ Bars are sold in 1 piece boxes Std. Item
