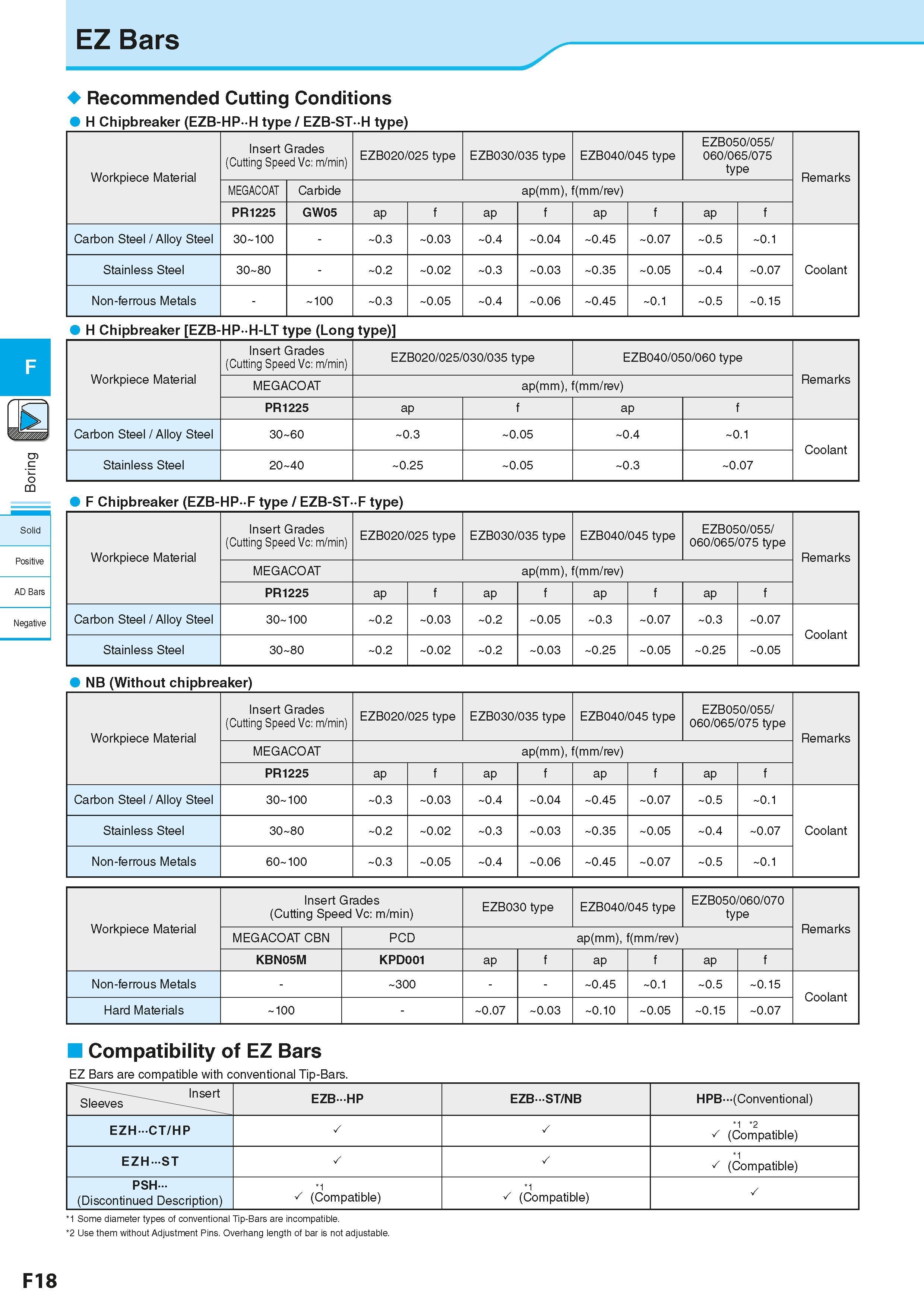

EZ Bars Recommended Cutting Conditions H Chipbreaker (EZB-HP- H type / EZB-ST- H type) Workpiece Material Insert Grades (Cutting Speed Vc: m/min) EZB020/025 type EZB030/035 type EZB040/045 type EZB050/055/ 060/065/075 type Remarks MEGACOAT Carbide ap(mm), f(mm/rev) PR1225 GW05 ap f ap f ap f ap f Carbon Steel / Alloy Steel 30 100 - 0.3 0.03 0.4 0.04 0.45 0.07 0.5 0.1 Coolant Stainless Steel 30 80 - 0.2 0.02 0.3 0.03 0.35 0.05 0.4 0.07 Non-ferrous Metals - 100 0.3 0.05 0.4 0.06 0.45 0.1 0.5 0.15 C <5 CQ Solid Positive AD Bars Negative H Chipbreaker EZB-HP-H-LT type (Long type) Workpiece Material Insert Grades (Cutting Speed Vc: m/min) EZB020/025/030/035 type EZB040/050/060 type Remarks MEGACOAT ap(mm), f(mm/rev) PR1225 ap f ap f Carbon Steel / Alloy Steel 30 60 0.3 0.05 0.4 0.1 Coolant Stainless Steel 20 40 0.25 0.05 0.3 0.07 F Chipbreaker (EZB-HP-F type / EZB-ST-F type) Workpiece Material Insert Grades (Cutting Speed Vc: m/min) EZB020/025 type EZB030/035 type EZB040/045 type EZB050/055/ 060/065/075 type Remarks MEGACOAT ap(mm), f(mm/rev) PR1225 ap f ap f ap f ap f Carbon Steel / Alloy Steel 30 100 0.2 0.03 0.2 0.05 0.3 0.07 0.3 0.07 Coolant Stainless Steel 30 80 0.2 0.02 0.2 0.03 0.25 0.05 0.25 0.05 NB (Without chipbreaker) Workpiece Material Insert Grades (Cutting Speed Vc: m/min) EZB020/025 type EZB030/035 type EZB040/045 type EZB050/055/ 060/065/075 type Remarks MEGACOAT ap(mm), f(mm/rev) PR1225 ap f ap f ap f ap f Carbon Steel / Alloy Steel 30 100 0.3 0.03 0.4 0.04 0.45 0.07 0.5 0.1 Coolant Stainless Steel 30 80 0.2 0.02 0.3 0.03 0.35 0.05 0.4 0.07 Non-ferrous Metals 60 100 0.3 0.05 0.4 0.06 0.45 0.07 0.5 0.1 Workpiece Material Insert Grades (Cutting Speed Vc: m/min) EZB030 type EZB040/045 type EZB050/060/070 type Remarks MEGACOAT CBN PCD ap(mm), f(mm/rev) KBN05M KPD001 ap f ap f ap f Non-ferrous Metals - 300 0.45 0.1 0.5 0.15 Coolant Hard Materials 100 - 0.07 0.03 0.10 0.05 0.15 0.07 Compatibility of EZ Bars EZ Bars are compatible with conventional Tip-Bars. Insert Sleeves EZB-HP EZB-ST/NB HPB-(Conventional) EZH-CT/HP / s 1 2 s (Compatible) EZH-ST / 1 s (Compatible) PSH (Discontinued Description) 1 s (Compatible) 1 s (Compatible) s 1 Some diameter types of conventional Tip-Bars are incompatible. 2 Use them without Adjustment Pins. Overhang length of bar is not adjustable. F18
