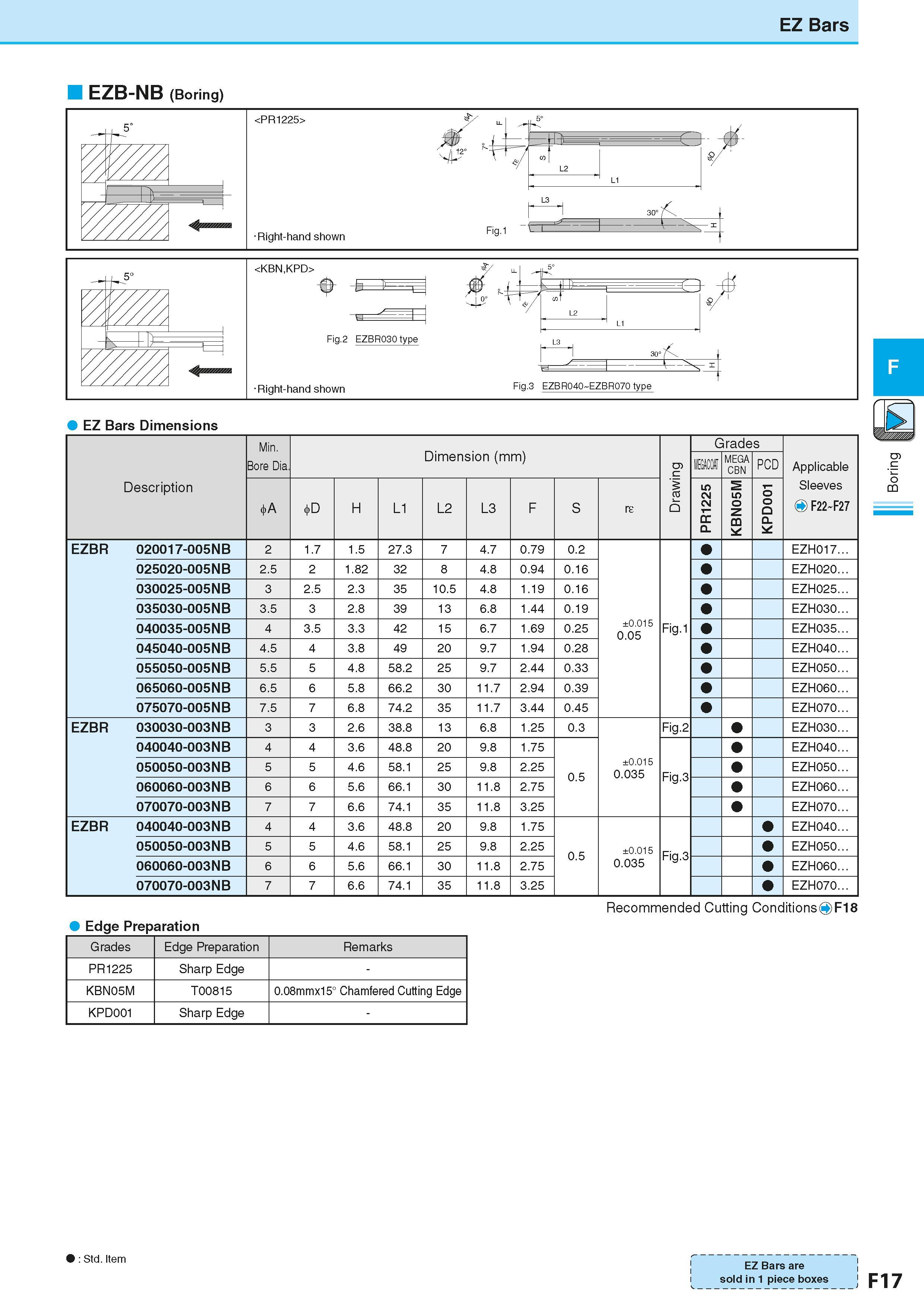

EZB-NB (Boring) EZ Bars Right-hand shown Fig.2 EZBR030 type Right-hand shown Fig.3 EZBR040-EZBR070 type EZ Bars Dimensions Description Min. Bore Dia Dimension (mm) Размеры инструмента указаны в мм £Z 5 a Grades Applicable Sleeves O F22 F27 MEGACOAT MEGA CBN PCD D H L1 L2 L3 F S re PR1225 KBN05M KPD001 EZBR 020017-005NB 2 1.7 1.5 27.3 7 4.7 0.79 0.2 ±0.015 0.05 Fig.1 EZH017... 025020-005NB 2.5 2 1.82 32 8 4.8 0.94 0.16 EZH020... 030025-005NB 3 2.5 2.3 35 10.5 4.8 1.19 0.16 EZH025... 035030-005NB 3.5 3 2.8 39 13 6.8 1.44 0.19 EZH030... 040035-005NB 4 3.5 3.3 42 15 6.7 1.69 0.25 EZH035... 045040-005NB 4.5 4 3.8 49 20 9.7 1.94 0.28 EZH040... 055050-005NB 5.5 5 4.8 58.2 25 9.7 2.44 0.33 EZH050... 065060-005NB 6.5 6 5.8 66.2 30 11.7 2.94 0.39 EZH060... 075070-005NB 7.5 7 6.8 74.2 35 11.7 3.44 0.45 EZH070... EZBR 030030-003NB 3 3 2.6 38.8 13 6.8 1.25 0.3 ±0.015 0.035 Fig.2 EZH030... 040040-003NB 4 4 3.6 48.8 20 9.8 1.75 0.5 Fig.3 EZH040... 050050-003NB 5 5 4.6 58.1 25 9.8 2.25 EZH050... 060060-003NB 6 6 5.6 66.1 30 11.8 2.75 EZH060... 070070-003NB 7 7 6.6 74.1 35 11.8 3.25 EZH070... EZBR 040040-003NB 4 4 3.6 48.8 20 9.8 1.75 0.5 ±0.015 0.035 Fig.3 EZH040... 050050-003NB 5 5 4.6 58.1 25 9.8 2.25 EZH050... 060060-003NB 6 6 5.6 66.1 30 11.8 2.75 EZH060... 070070-003NB 7 7 6.6 74.1 35 11.8 3.25 EZH070... Recommended Cutting ConditionsO F18 Edge Preparation Grades Edge Preparation Remarks PR1225 Sharp Edge - KBN05M T00815 0.08mmx15° Chamfered Cutting Edge KPD001 Sharp Edge - N Std Item f EZ "Barsare i sold in 1 piece boxes F17 Boring
