276 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.F14

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. F14 0276 Lab2u

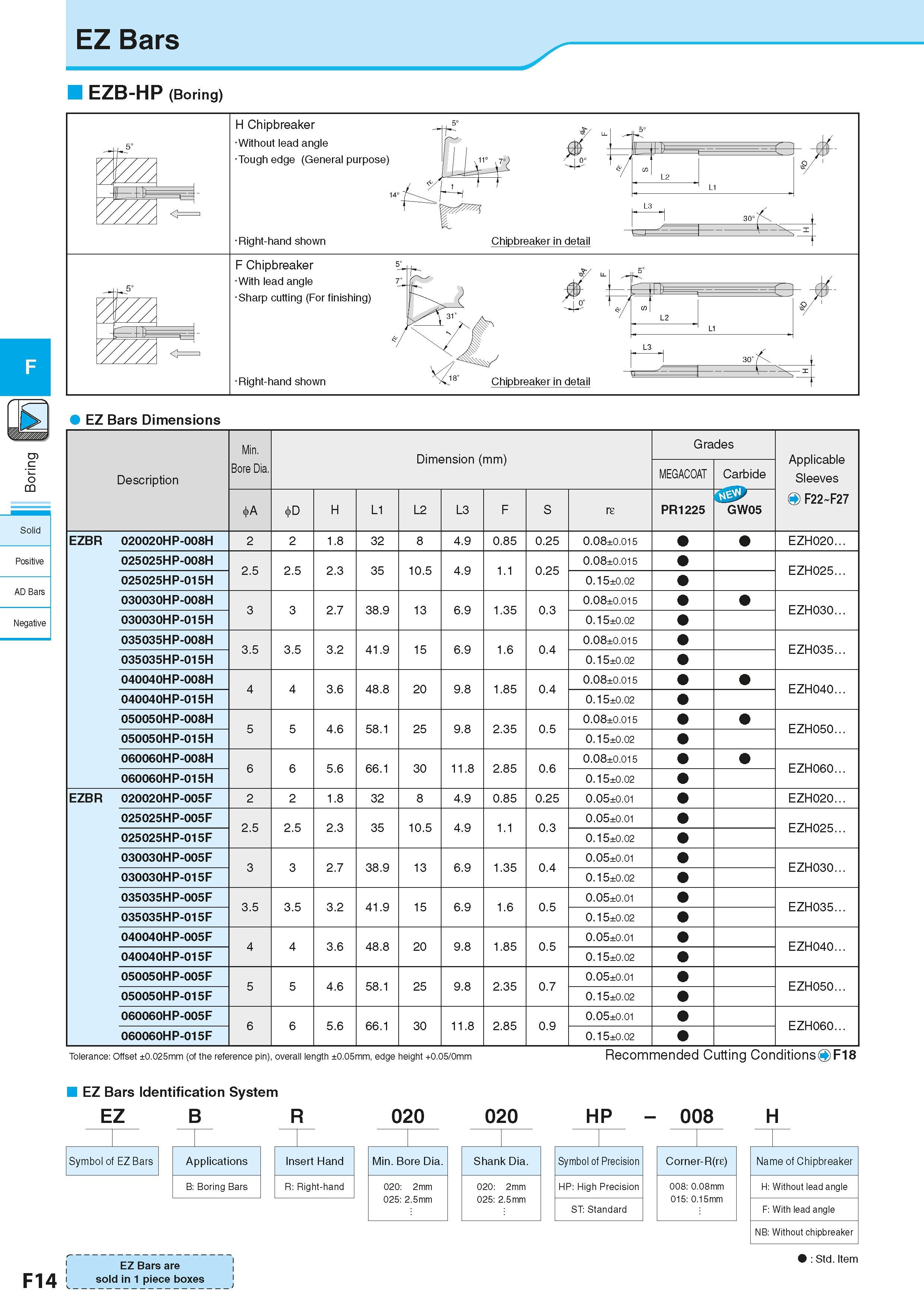

EZ Bars c <5 co Solid Positive AD Bars Negative F14 EZB-HP (Boring) H Chipbreaker Without lead angle Tough edge (General purpose) Right-hand shown Chipbreaker in detail I"5 V - F Chipbreaker With lead angle Sharp cutting (For finishing) Right-hand shown EZ Bars Dimensions Description Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Grades Applicable Sleeves O F22 F27 MEGACOAT Carbide A H L1 L2 L3 F S re PR1225 GW05 EZBR 020020HP-008H 2 2 1.8 32 8 4.9 0.85 0.25 0.08±0.015 EZH020... 025025HP-008H 2.5 2.5 2.3 35 10.5 4.9 1.1 0.25 0.08±0.015 EZH025... 025025HP-015H 0.15±0.02 030030HP-008H 3 3 2.7 38.9 13 6.9 1.35 0.3 0.08±0.015 EZH030... 030030HP-015H 0.15±0.02 035035HP-008H 3.5 3.5 3.2 41.9 15 6.9 1.6 0.4 0.08±0.015 EZH035. 035035HP-015H 0.15±0.02 040040HP-008H 4 4 3.6 48.8 20 9.8 1.85 0.4 0.08±0.015 EZH040. 040040HP-015H 0.15±0.02 050050HP-008H 5 5 4.6 58.1 25 9.8 2.35 0.5 0.08±0.015 EZH050. 050050HP-015H 0.15±0.02 060060HP-008H 6 6 5.6 66.1 30 11.8 2.85 0.6 0.08±0.015 EZH060. 060060HP-015H 0.15±0.02 EZBR 020020HP-005F 2 2 1.8 32 8 4.9 0.85 0.25 0.05±0.01 EZH020. 025025HP-005F 2.5 2.5 2.3 35 10.5 4.9 1.1 0.3 0.05±0.01 EZH025. 025025HP-015F 0.15±0.02 030030HP-005F 3 3 2.7 38.9 13 6.9 1.35 0.4 0.05±0.01 EZH030. 030030HP-015F 0.15±0.02 035035HP-005F 3.5 3.5 3.2 41.9 15 6.9 1.6 0.5 0.05±0.01 EZH035... 035035HP-015F 0.15±0.02 040040HP-005F 4 4 3.6 48.8 20 9.8 1.85 0.5 0.05±0.01 EZH040. 040040HP-015F 0.15±0.02 050050HP-005F 5 5 4.6 58.1 25 9.8 2.35 0.7 0.05±0.01 EZH050. 050050HP-015F 0.15±0.02 060060HP-005F 6 6 5.6 66.1 30 11.8 2.85 0.9 0.05±0.01 EZH060. 060060HP-015F 0.15±0.02 Tolerance: Offset ±0.025mm (of the reference pin), overall length ±0.05mm, edge height +0.05/0mm Recommended Cutting ConditionsO F18 EZ Bars Identification System EZ B R 020 020 HP - 008 H EZ Bars are sold in 1 piece boxes Std. Item
