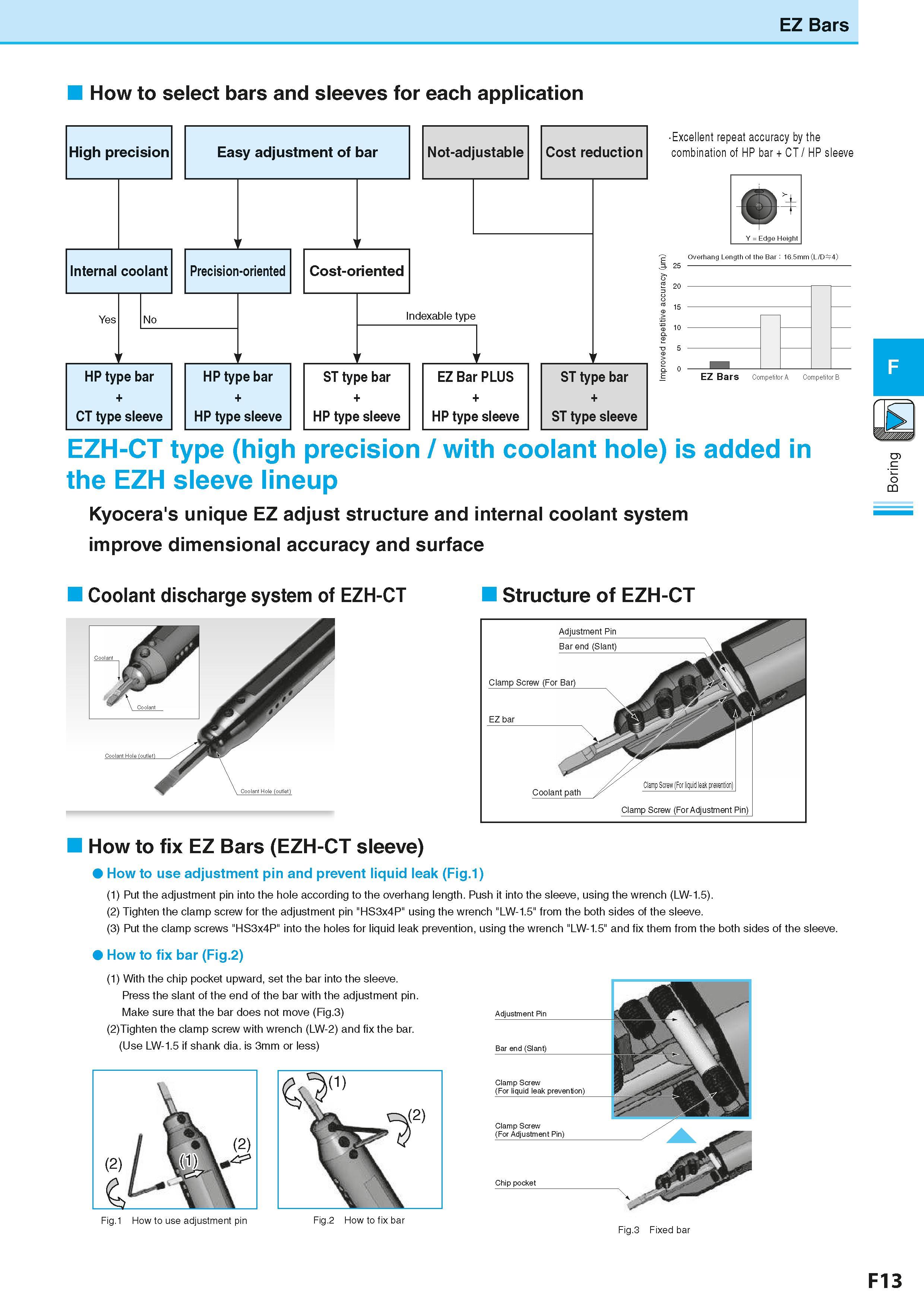

EZ Bars How to select bars and sleeves for each application Excellent repeat accuracy by the combination of HP bar + CT / HP sleeve 25 20 15 10 5 0 Overhang Length of the Bar: 16.5mm (L/D 4 EZ Bars Competitor A Competitor B EZH-CT type (high precision / with coolant hole) is added in the EZH sleeve lineup Kyocera's unique EZ adjust structure and internal coolant system improve dimensional accuracy and surface Coolant discharge system of EZH-CT Structure of EZH-CT Coolant Hole (outlet) How to fix EZ Bars (EZH-CT sleeve) How to use adjustment pin and prevent liquid leak (Fig.1) (1) Put the adjustment pin into the hole according to the overhang length. Push it into the sleeve, using the wrench (LW-1.5). (2) Tighten the clamp screw for the adjustment pin "HS3x4P" using the wrench "LW-1.5" from the both sides of the sleeve. (3) Put the clamp screws "HS3x4P" into the holes for liquid leak prevention, using the wrench "LW-1.5" and fix them from the both sides of the sleeve. How to fix bar (Fig.2) (1) With the chip pocket upward, set the bar into the sleeve. Press the slant of the end of the bar with the adjustment pin. Make sure that the bar does not move (Fig.3) Adjustment Pin (2)Tighten the clamp screw with wrench (LW-2) and fix the bar. (Use LW-1.5 if shank dia. is 3mm or less) Bar end (slant) Fig.1 How to use adjustment pin Clamp Screw (For liquid leak prevention) Clamp Screw (For Adjustment Pin) Fig.3 Fixed bar Chip pocket F13 Boring
