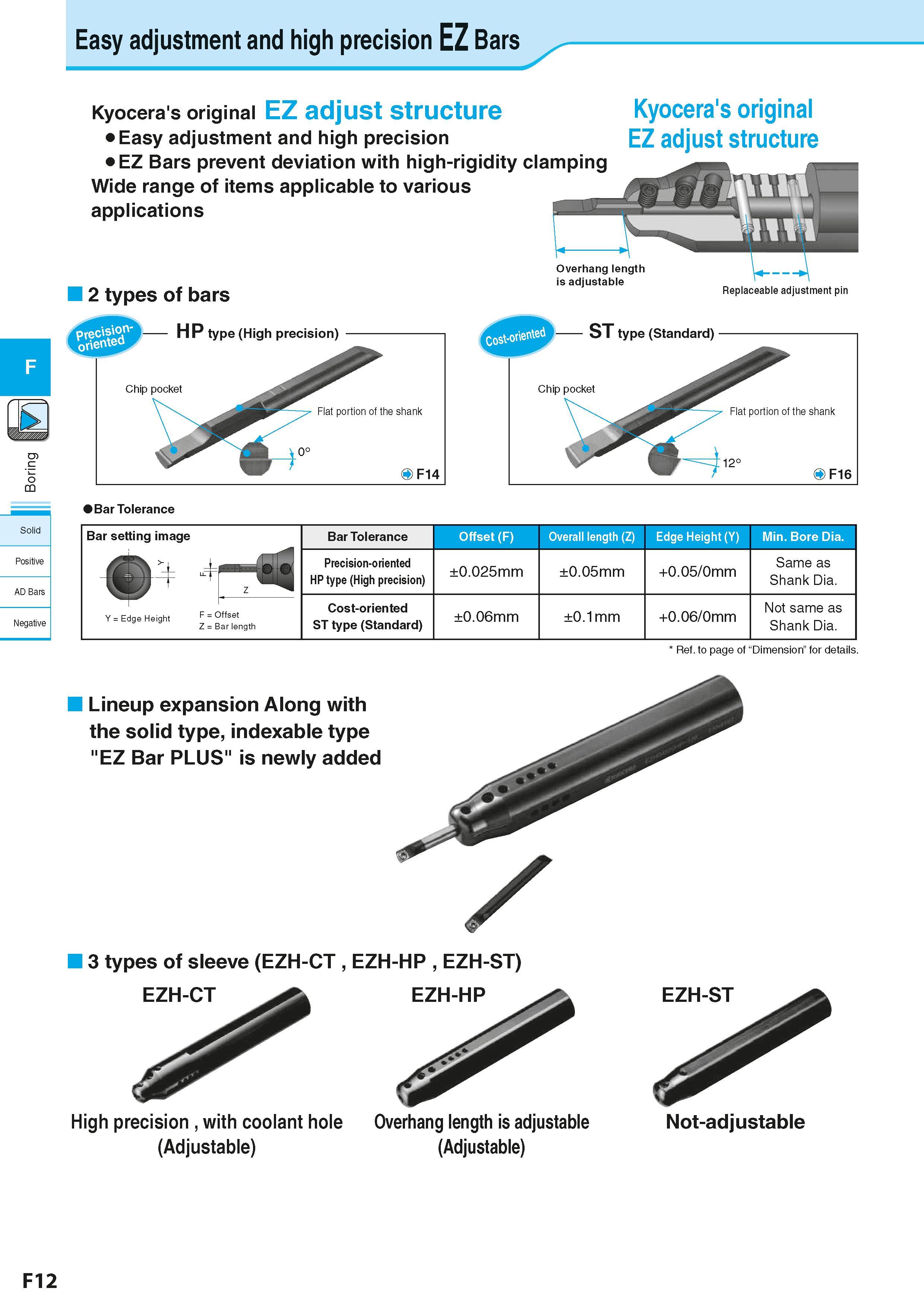

Easy adjustment and high precision EZ Bars g in or B Solid Positive AD Bars Negative Kyocera's original EZ adjust structure Kyocera's original Easy adjustment and high precision EZ adjust structure EZ Bars prevent deviation with high-rigidity clamping Wide range of items applicable to various applications 2 types of bars - HP type (High precision) Overhang length is adjustable Replaceable adjustment pin Chip pocket Flat portion of the shank O F14 Bar Tolerance Bar setting image Y = Edge Height F = Offset Z = Bar length Bar Tolerance Offset (F) Overall length (Z) Edge Height (Y) Min. Bore Dia. Precision-oriented HP type (High precision) ±0.025mm ±0.05mm +0.05/0mm Same as Shank Dia. Cost-oriented ST type (Standard) ±0.06mm ±0.1mm +0.06/0mm Not same as Shank Dia. Ref. to page of “Dimension” for details. Lineup expansion Along with the solid type, indexable type "EZ Bar PLUS" is newly added 3 types of sleeve (EZH-CT EZH-HP EZH-ST) EZH-CT EZH-HP EZH-ST High precision with coolant hole Overhang length is adjustable (Adjustable) (Adjustable) Not-adjustable F12
