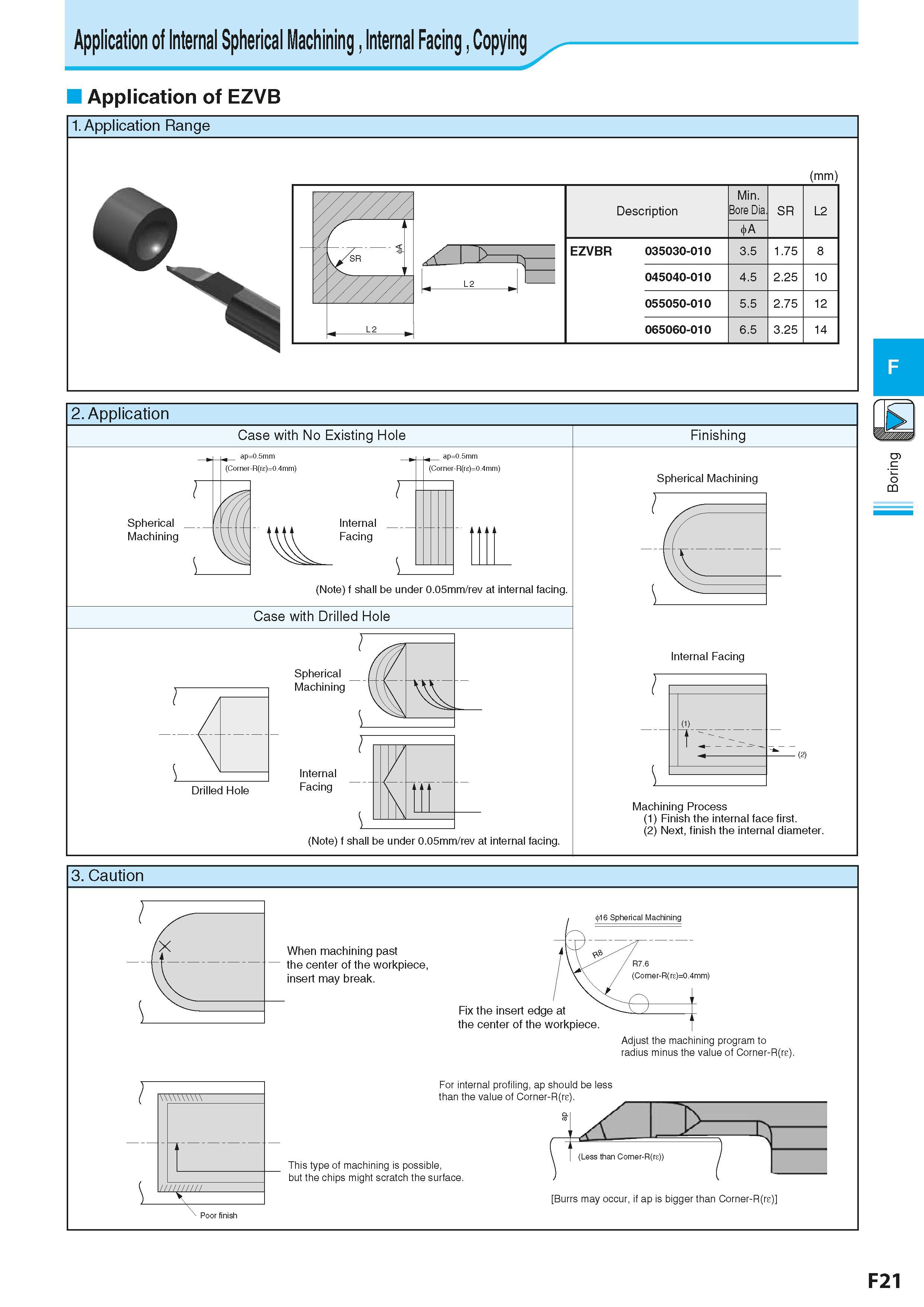

Application of Internal Spherical Machining Internal Facing Copying Application of EZVB 1. Application Range (mm) 2. Application Case with No Existing Hole Internal Facing ap=0.5mm (Comer-R(re)=0.4mm) Finishing Spherical Machining (Note) f shall be under 0.05mm/rev at internal facing. Case with Drilled Hole Spherical Machining Internal Internal Facing (Note) f shall be under 0.05mm/rev at internal facing. Machining Process (1) Finish the internal face first. (2) Next, finish the internal diameter. 3. Caution fl6 Spherical Machining Fix the insert edge at the center of the workpiece R7.6 (Corner-R(re)=0.4mm) Adjust the machining program to radius minus the value of Corner-R(re). For internal profiling, ap should be less (2) F21 Boring
