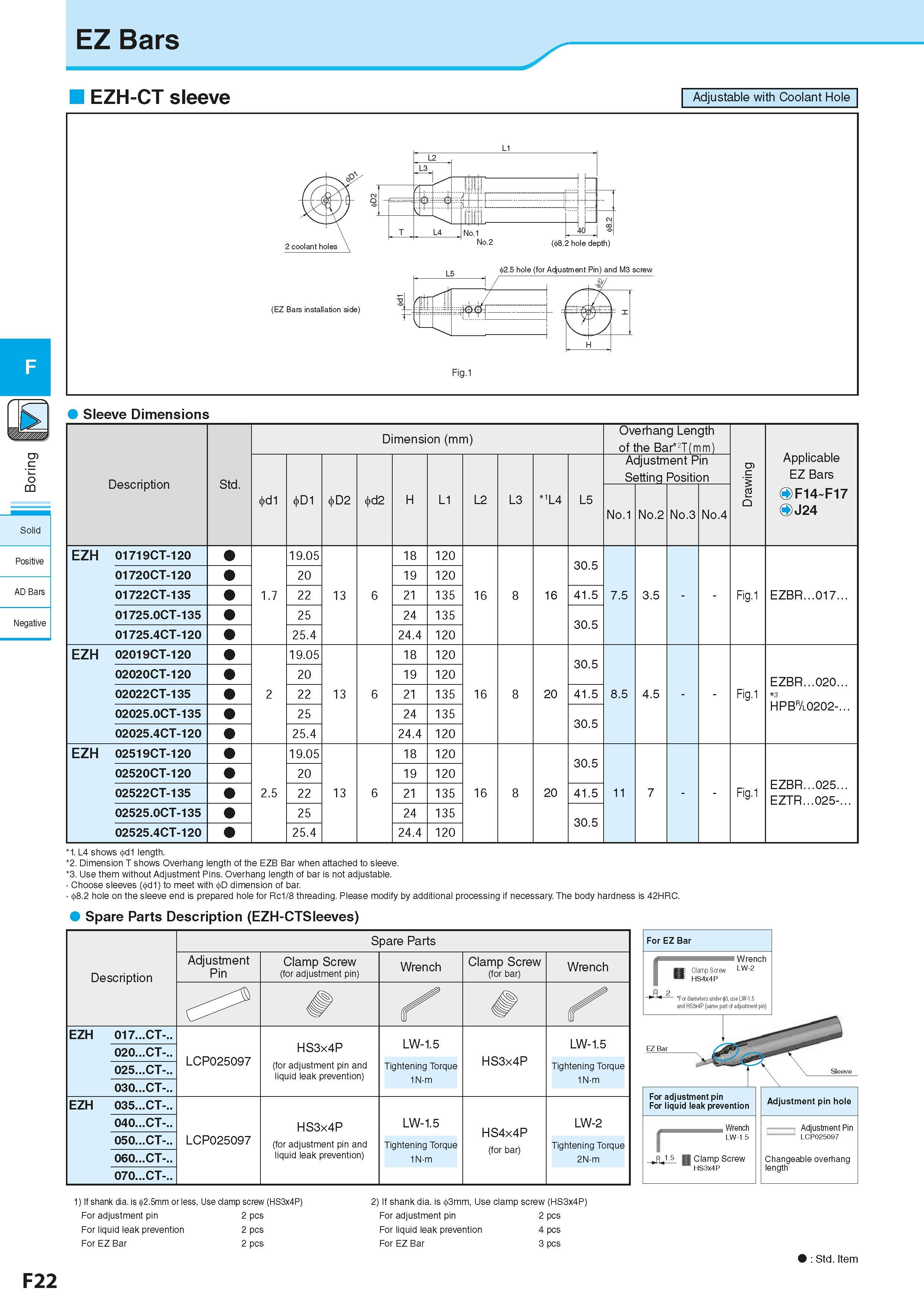

284 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.F22

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. F22 0284 Lab2u

c <5 CQ Solid Positive AD Bars Negative F22 EZ Bars EZH-CT sleeve Sleeve Dimensions Dimension (mm) Размеры инструмента указаны в мм Overhang Length of the Bar 2T(mm) Applicable EZ Bars Std. Adjustment Pin Setting Position Drawing d1 D1 D2 d2 H L1 L2 L3 1L4 L5 No.1 No.2 No.3 No.4 OF14 F17 OJ24 EZH 01719CT-120 19.05 18 120 30.5 01720CT-120 20 19 120 01722CT-135 1.7 22 13 6 21 135 16 8 16 41.5 7.5 3.5 Fig.1 EZBR...017... 01725.0CT-135 25 24 135 30.5 01725.4CT-120 25.4 24.4 120 EZH 02019CT-120 19.05 18 120 30.5 02020CT-120 20 19 120 EZBR...020... 3 HPB&0202-... 02022CT-135 2 22 13 6 21 135 16 8 20 41.5 8.5 4.5 Fig.1 02025.0CT-135 25 24 135 30.5 02025.4CT-120 25.4 24.4 120 EZH 02519CT-120 19.05 18 120 30.5 02520CT-120 20 19 120 5 522 00 R R. m i ZZ EE 02522CT-135 2.5 22 13 6 21 135 16 8 20 41.5 11 7 Fig.1 02525.0CT-135 25 24 135 30.5 02525.4CT-120 25.4 24.4 120 1. L4 shows 4 d1 length. 2. Dimension T shows Overhang length of the EZB Bar when attached to sleeve. 3. Use them without Adjustment Pins. Overhang length of bar is not adjustable. Choose sleeves ( d1) to meet with D dimension of bar. 8.2 hole on the sleeve end is prepared hole for Rc1/8 threading. Please modify by additional processing if necessary. The body hardness is 42HRC. Spare Parts Description (EZH-CTSleeves) Description Spare Parts Adjustment Pin Clamp Screw (for adjustment pin) Wrench Clamp Screw (for bar) Wrench S EZH 017...CT-.. 020...CT-.. LCP025097 HS3x4P (for adjustment pin and liquid leak prevention) LW-1.5 HS3x4P LW-1.5 025...CT-.. 030...CT-.. Tightening Torque 1N-m Tightening Torque 1N-m EZH 035...CT-.. 040...CT-.. LCP025097 HS3x4P (for adjustment pin and liquid leak prevention) LW-1.5 HS4x4P (for bar) LW-2 050...CT-.. 060...CT-.. 070...CT-.. Tightening Torque 1N-m Tightening Torque 2N m Clamp Screw HS4x4P -1 Wrench LW-2 For diameters under if3, use LW-1.5 and HS3x4P (same part of adjustment pin) For adjustment pin For liquid leak prevention Adjustment pin hole Adjustment Pin eFIj1-5 Clamp Screw HS3X4P LCP025097 Changeable overhang length 1) If shank dia. is 2.5mm or less, Use clamp screw (HS3x4P) For adjustment pin 2 pcs For liquid leak prevention 2 pcs For EZ Bar 2 pcs 2) If shank dia. is 3mm, Use clamp screw (HS3x4P) For adjustment pin 2 pcs For liquid leak prevention 4 pcs For EZ Bar 3 pcs N Std. Item For EZ Bar EZ Bar
