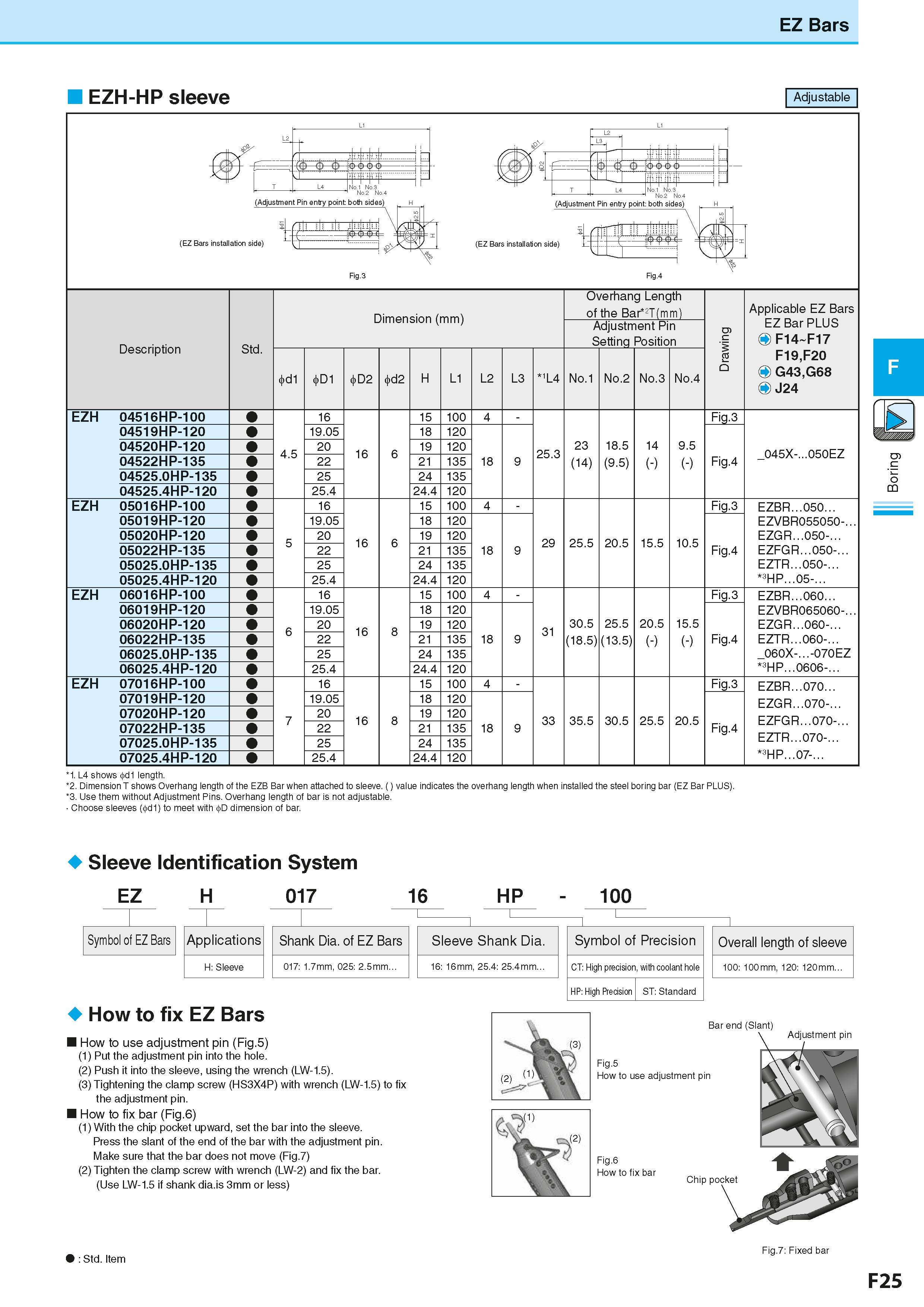

EZ Bars EZH-HP sleeve Adjustable Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм d1 D1 D2 d2 L1 L2 L3 1L4 Overhang Length of the Bar 2T(mm) Adjustment Pin Setting Position No.1 No.2 No.3 No.4 ar Dr Applicable EZ Bars EZ Bar PLUS 4 F14 F17 F19,F20 4 G43,G68 O J24 EZH 04516HP-100 04519HP-120 04520HP-120 04522HP-135 04525.0HP-135 04525.4HP-120 16 15 100 Fig.3 19.05 18 120 4.5 20 22 16 19 120 21 135 18 25.3 23 (14) 18.5 (9.5) 14 9.5 Fig.4 045X-...050EZ 25 24 135 25.4 24.4 120 EZH 05016HP-100 16 15 100 05019HP-120 Fig.3 19.05 18 120 05020HP-120 20 05022HP-135 22 16 19 120 21 135 18 29 25.5 20.5 15.5 10.5 05025.0HP-135 Fig.4 25 24 135 05025.4HP-120 25.4 24.4 120 EZBR...050... EZVBR055050-. EZGR...050-... EZFGR...050-... EZTR...050-... 3HP...05-... EZH 06016HP-100 16 15 100 06019HP-120 Fig.3 19.05 18 120 06020HP-120 20 06022HP-135 22 16 19 120 21 135 18 31 06025.0HP-135 25 24 135 30.5 (18.5) 25.5 (13.5) 20.5 15.5 Fig.4 06025.4HP-120 25.4 24.4 120 EZBR...060... EZVBR065060-. EZGR...060-... EZTR...060-... 060X-...-070EZ 3HP...0606-... EZH 07016HP-100 16 15 100 07019HP-120 Fig.3 19.05 18 120 07020HP-120 20 07022HP-135 22 16 19 120 21 135 18 33 35.5 30.5 25.5 20.5 07025.0HP-135 Fig.4 25 24 135 07025.4HP-120 25.4 24.4 120 EZBR...070... EZGR...070-... EZFGR...070-... EZTR...070-... 3HP...07-... 1. L4 shows 4>d1 length. 2. Dimension T shows Overhang length of the EZB Bar when attached to sleeve. ( ) value indicates the overhang length when installed the steel boring bar (EZ Bar PLUS). 3. Use them without Adjustment Pins. Overhang length of bar is not adjustable. Choose sleeves (4>d1) to meet with 4>D dimension of bar. H 4 6 9 4 5 6 9 4 6 8 9 4 7 8 9 Sleeve Identification System EZ H 017 16 HP 100 Symbol of EZ Bars Applications H: Sleeve Shank Dia. of EZ Bars 017: 1.7mm, 025: 2.5mm... How to fix EZ Bars How to use adjustment pin (Fig.5) (1) Put the adjustment pin into the hole. (2) Push it into the sleeve, using the wrench (LW-1.5). (3) Tightening the clamp screw (HS3X4P) with wrench (LW-1.5) to fix the adjustment pin. How to fix bar (Fig.6) (1) With the chip pocket upward, set the bar into the sleeve. Press the slant of the end of the bar with the adjustment pin. Make sure that the bar does not move (Fig.7) (2) Tighten the clamp screw with wrench (LW-2) and fix the bar. (Use LW-1.5 if shank dia.is 3mm or less) Sleeve Shank Dia. 16: 16mm, 25.4: 25.4mm. Symbol of Precision CT: High precision, with coolant hole HP: High Precision ST: Standard Overall length of sleeve 100: 100mm, 120: 120mm. Bar end (Slant) Adjustment pin Fig.5 How to use adjustment pin Fig.6 How to fix bar Chip pocket N Std. Item Fig.7: Fixed bar F25 Boring
