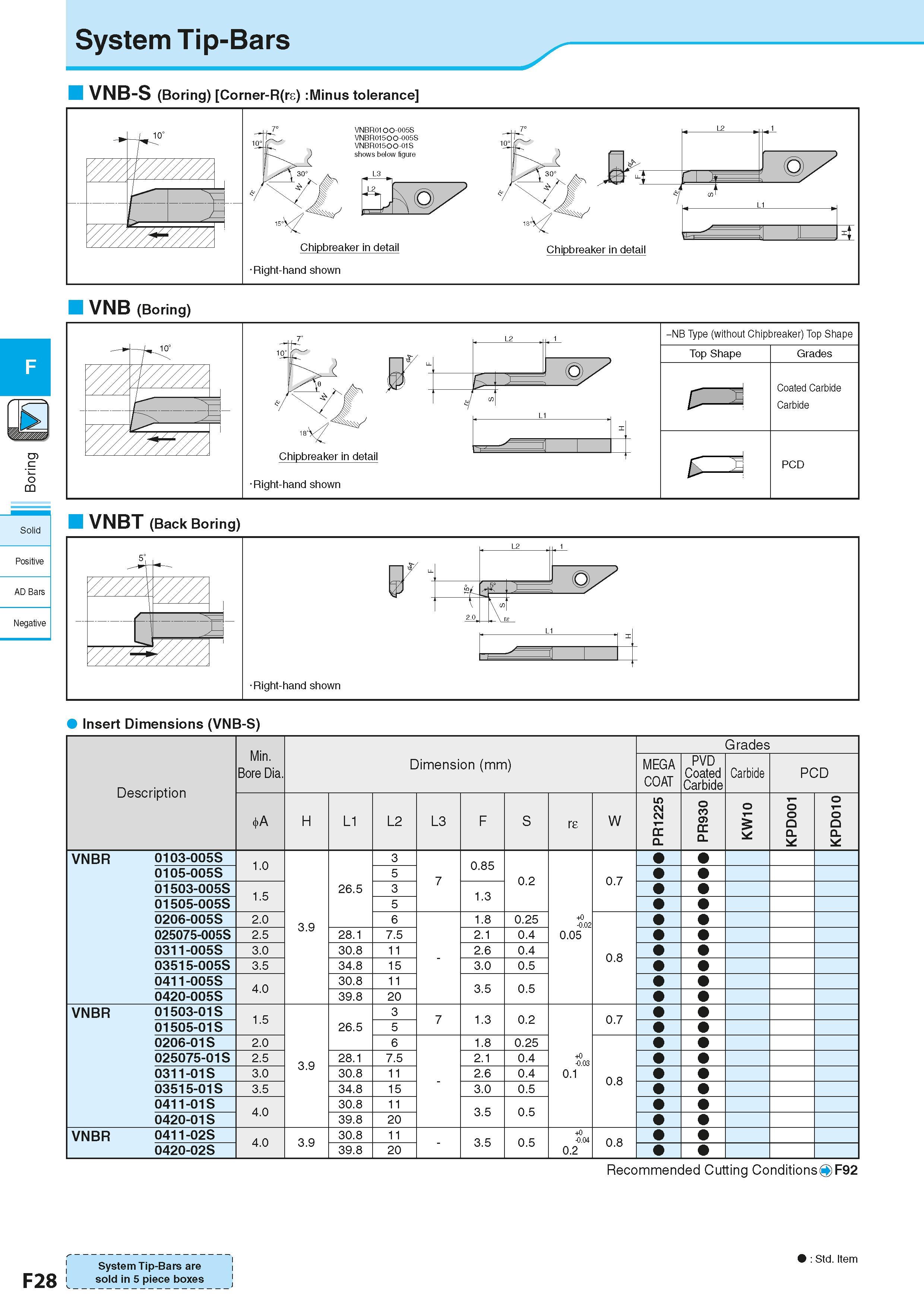

System Tip-Bars c <5 co Solid Positive AD Bars Negative F28 VNB-S (Boring) Corner-R(rg) :Minus tolerance VNB (Boring) + -40 X/// / yyyy y // / / / / K J=i / / / / . y///, Right-hand shown -NB Type (without Chipbreaker) Top Shape Top Shape Grades Coated Carbide Carbide PCD VNBT (Back Boring) Insert Dimensions (VNB-S) Description Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Grades MEGA COAT PVD Coated Carbide Carbide PCD A H L1 L2 L3 F S re W PR1225 PR930 KW10 KPD001 KPD010 VNBR 0103-005S 1.0 3.9 26.5 3 7 0.85 0.2 +0 -0.02 0.05 0.7 0105-005S 5 01503-005S 1.5 3 1.3 01505-005S 5 0206-005S 2.0 6 - 1.8 0.25 0.8 025075-005S 2.5 28.1 7.5 2.1 0.4 0311-005S 3.0 30.8 11 2.6 0.4 03515-005S 3.5 34.8 15 3.0 0.5 0411-005S 4.0 30.8 11 3.5 0.5 0420-005S 39.8 20 VNBR 01503-01S 1.5 3.9 26.5 3 7 1.3 0.2 +0 -0.03 0.1 0.7 01505-01S 5 0206-01S 2.0 6 - 1.8 0.25 0.8 025075-01S 2.5 28.1 7.5 2.1 0.4 0311-01S 3.0 30.8 11 2.6 0.4 03515-01S 3.5 34.8 15 3.0 0.5 0411-01S 4.0 30.8 11 3.5 0.5 0420-01S 39.8 20 VNBR 0411-02S 4.0 3.9 30.8 11 - 3.5 0.5 +0 -0.04 0.2 0.8 0420-02S 39.8 20 Recommended Cutting Conditions 4 F92 1 Std. Item System Tip-Bars are i sold in 5 piece boxes '
