292 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.F30

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. F30 0292 Lab2u

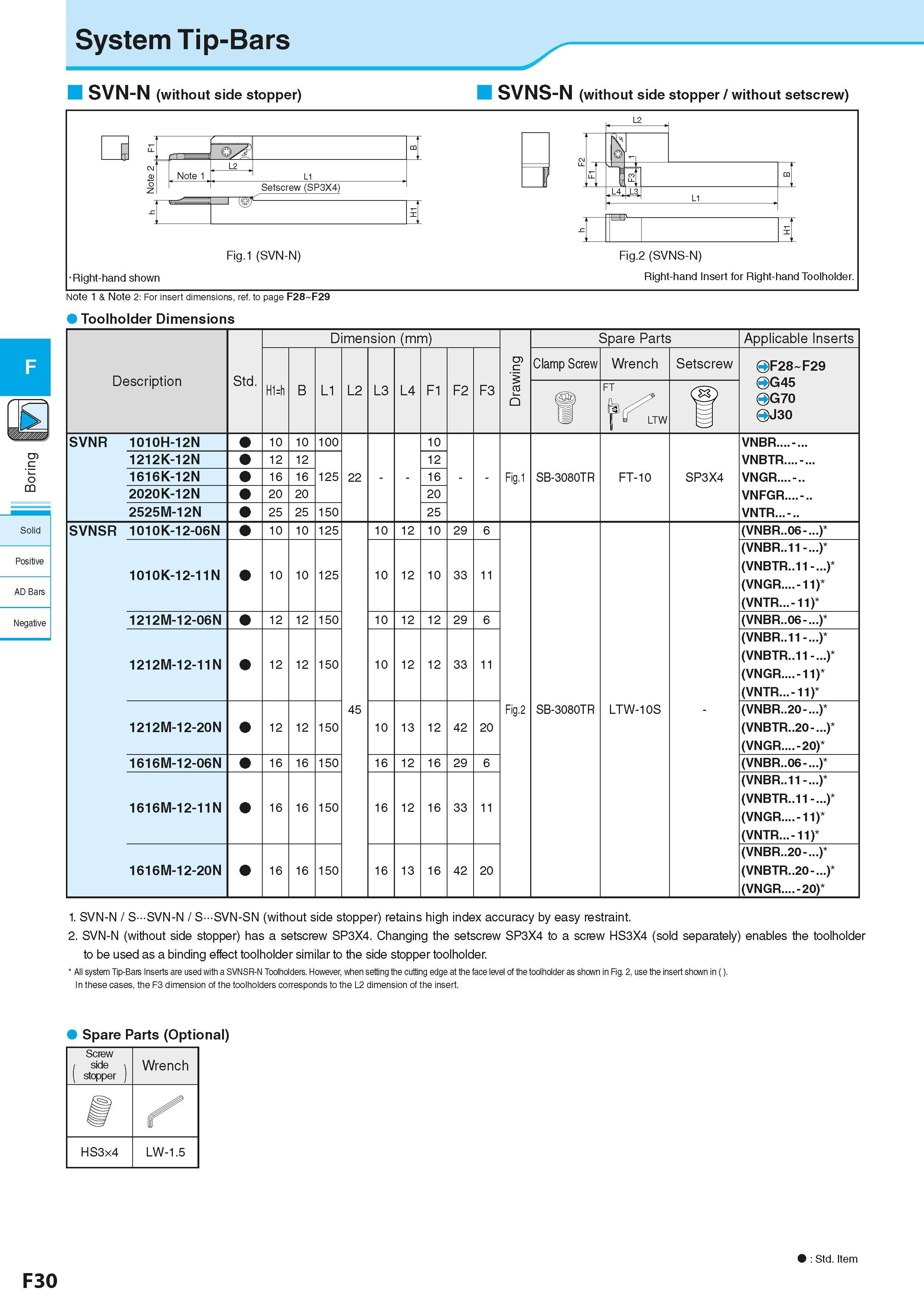

c <5 Solid Positive AD Bars Negative System Tip-Bars SVN-N (without side stopper) SVNS-N (without side stopper / without setscrew) Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Drawing Spare Parts Applicable Inserts H1=h B L1 L2 L3 L4 F1 F2 F3 Clamp Screw Wrench Setscrew OF28-F29 OG45 OG70 OJ30 u FT f Ltw < > SVNR 1010H-12N 10 10 100 22 10 Fig.1 SB-3080TR FT-10 SP3X4 VNBR........ VNBTR........ VNGR....... VNFGR....... VNTR...... 1212K-12N 12 12 125 12 1616K-12N 16 16 16 2020K-12N 20 20 20 2525M-12N 25 25 150 25 SVNSR 1010K-12-06N 10 10 125 45 10 12 10 29 6 Fig.2 SB-3080TR LTW-10S - (VNBR..06-...) 1010K-12-11N 10 10 125 10 12 10 33 11 (VNBR..11 ....) (VNBTR..11 ....) (VNGR.....11) (VNTR.... 11) 1212M-12-06N 12 12 150 10 12 12 29 6 (VNBR..06....) 1212M-12-11N 12 12 150 10 12 12 33 11 (VNBR..11 ....) (VNBTR..11 ....) (VNGR.....11) (VNTR.... 11) 1212M-12-20N 12 12 150 10 13 12 42 20 (VNBR..20....) (VNBTR..20....) (VNGR.....20) 1616M-12-06N 16 16 150 16 12 16 29 6 (VNBR..06....) 1616M-12-11N 16 16 150 16 12 16 33 11 (VNBR..11 ....) (VNBTR..11 ....) (VNGR.....11) (VNTR.... 11) 1616M-12-20N 16 16 150 16 13 16 42 20 (VNBR..20....) (VNBTR..20....) (VNGR.....20) 1. SVN-N / S-SVN-N / S-SVN-SN (without side stopper) retains high index accuracy by easy restraint. 2. SVN-N (without side stopper) has a setscrew SP3X4. Changing the setscrew SP3X4 to a screw HS3X4 (sold separately) enables the toolholder to be used as a binding effect toolholder similar to the side stopper toolholder. All system Tip-Bars Inserts are used with a SVNSR-N Toolholders. However, when setting the cutting edge at the face level of the toolholder as shown in Fig. 2, use the insert shown in ( ). In these cases, the F3 dimension of the toolholders corresponds to the L2 dimension of the insert. Spare Parts (Optional) Screw i side i ( stopper ) Wrench HS3x4 LW-1.5 F30 Std. Item
