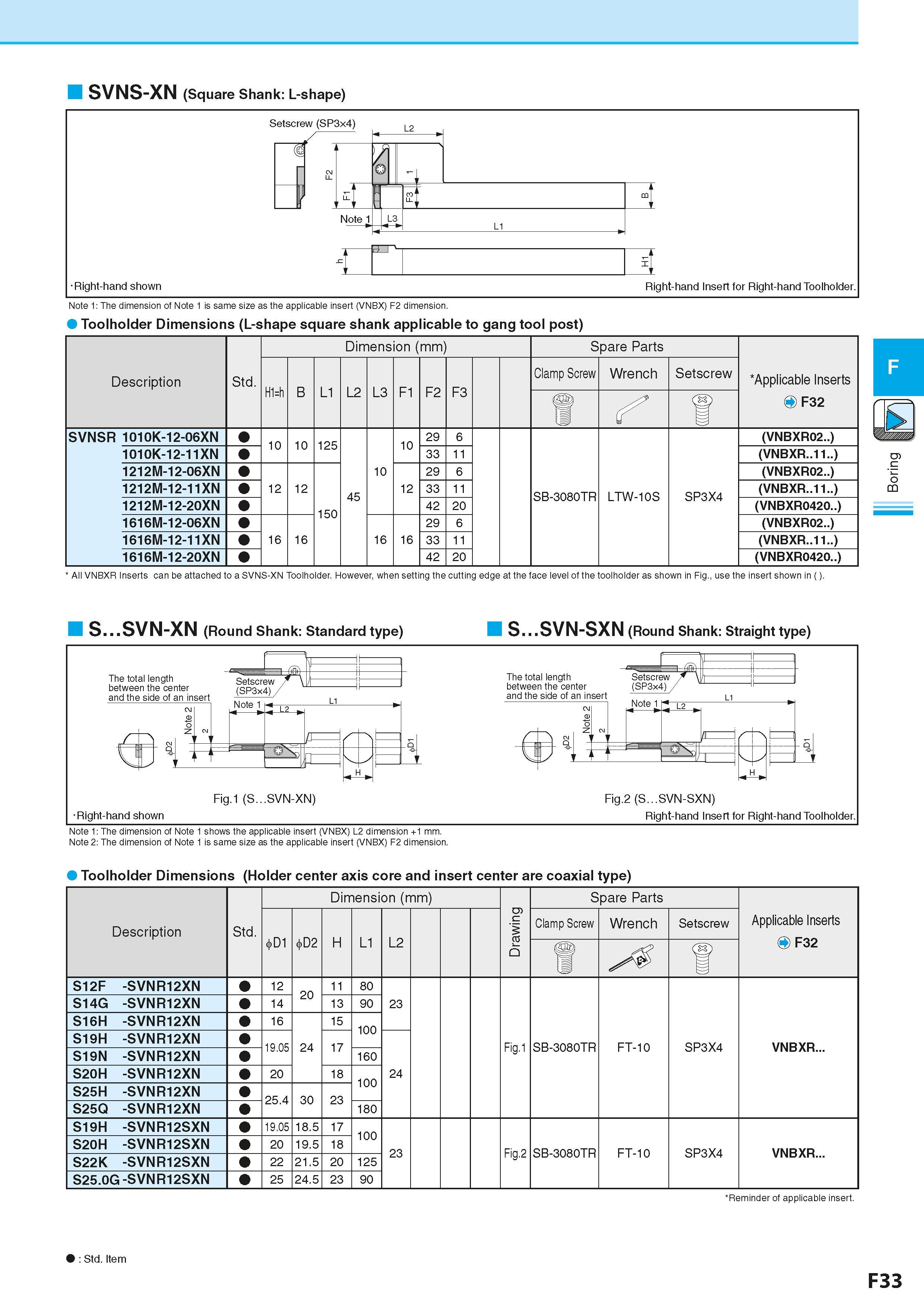

SVNS-XN (Square Shank: L-shape) Note 1: The dimension of Note 1 is same size as the applicable insert (VNBX) F2 dimension. Toolholder Dimensions (L-shape square shank applicable to gang tool post) Dimension (mm) Размеры инструмента указаны в мм Spare Parts Description Обозначение инструмента для заказа Std. H1=h B L1 L2 L3 F1 F2 F3 Clamp Screw Wrench Setscrew ‘Applicable Inserts u r’ O F32 SVNSR 1010K-12-06XN 10 10 125 10 29 6 (VNBXR02..) 1010K-12-11XN 33 11 (VNBXR..11..) 1212M-12-06XN 10 29 6 (VNBXR02..) 1212M-12-11XN 12 12 45 12 33 11 SB-3080TR LTW-10S SP3X4 (VNBXR..11..) 1212M-12-20XN 150 42 20 (VNBXR0420..) 1616M-12-06XN 29 6 (VNBXR02..) 1616M-12-11XN 16 16 16 16 33 11 (VNBXR..11..) 1616M-12-20XN 42 20 (VNBXR0420..) All VNBXR Inserts can be attached to a SVNS-XN Toolholder. However, when setting the cutting edge at the face level of the toolholder as shown in Fig., use the insert shown in ( ). S...SVN-XN (Round Shank: Standard type) S.SVN-SXN (Round Shank: Straight type) Note 2. The dimension of Note 1 is same size as the applicable insert (VNBX) F2 dimension. Toolholder Dimensions (Holder center axis core and insert center are coaxial type) Std. Item F33 Boring
