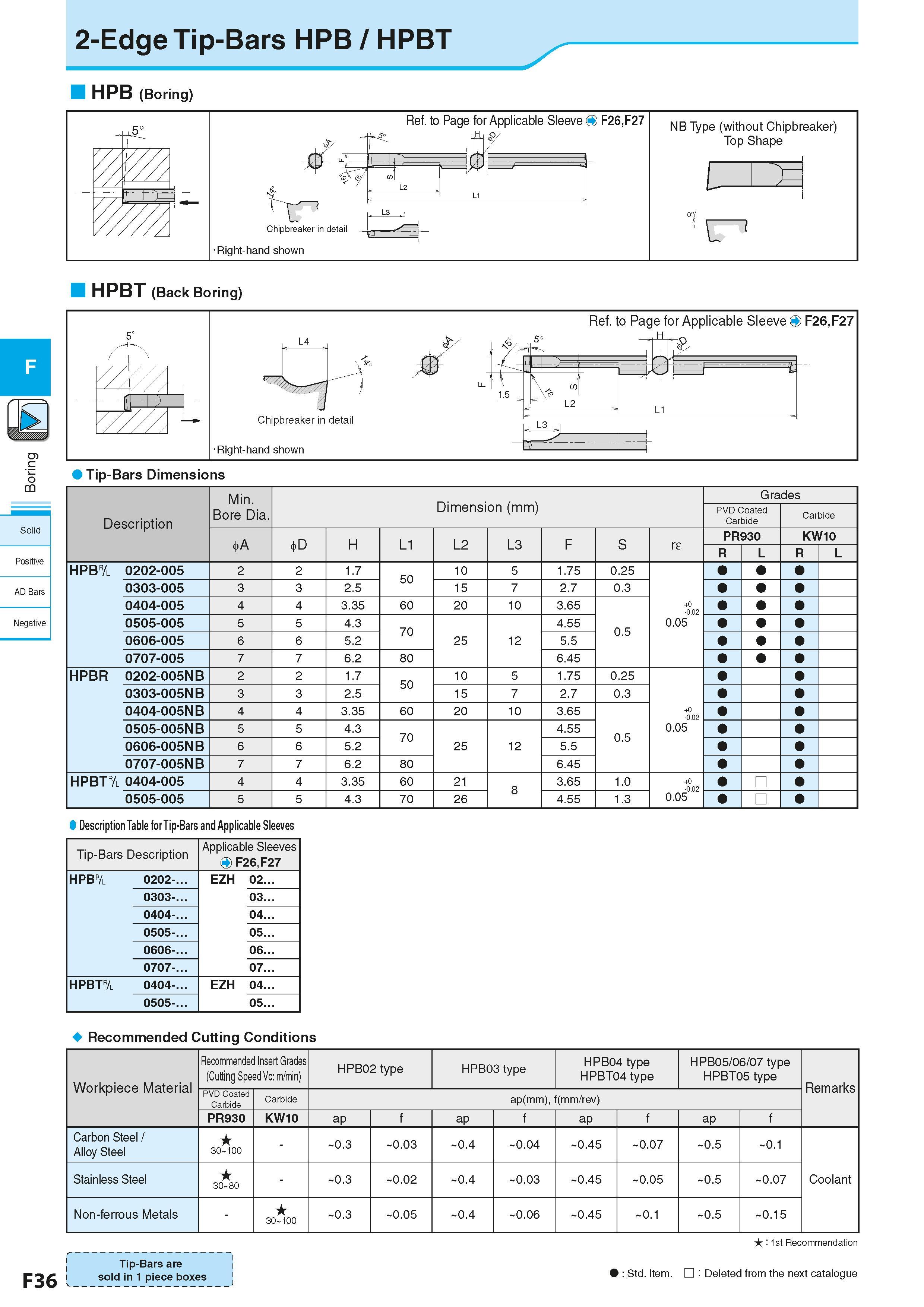

2-Edge Tip-Bars HPB / HPBT c o CQ Solid Positive AD Bars Negative F36 HPB (Boring) -5° Ref. to Page for Applicable Sleeve O F26,F27 Right-hand shown NB Type (without Chipbreaker) Top Shape r HPBT (Back Boring) Ref. to Page for Applicable Sleeve O F26,F27 Tip-Bars Dimensions Description Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Grades PVD Coated Carbide Carbide A D H L1 L2 L3 F S re PR930 KW10 R L R L HPB& 0202-005 2 2 1.7 50 10 5 1.75 0.25 +0 -0.02 0.05 0303-005 3 3 2.5 15 7 2.7 0.3 0404-005 4 4 3.35 60 20 10 3.65 0.5 0505-005 5 5 4.3 70 25 12 4.55 0606-005 6 6 5.2 5.5 0707-005 7 7 6.2 80 6.45 HPBR 0202-005NB 2 2 1.7 50 10 5 1.75 0.25 +0 -0.02 0.05 0303-005NB 3 3 2.5 15 7 2.7 0.3 0404-005NB 4 4 3.35 60 20 10 3.65 0.5 0505-005NB 5 5 4.3 70 25 12 4.55 0606-005NB 6 6 5.2 5.5 0707-005NB 7 7 6.2 80 6.45 HPBT& 0404-005 4 4 3.35 60 21 8 3.65 1.0 +0 -0.02 0.05 0505-005 5 5 4.3 70 26 4.55 1.3 Description Table for Tip-Bars and Applicable Sleeves Tip-Bars Description Applicable Sleeves O F26,F27 HPB& 0202-... EZH 02. 0303-... 03. 0404-... 04. 0505-... 05. 0606-... 06. 0707-... 07. HPBT& 0404-... EZH 04. 0505-... 05. Recommended Cutting Conditions Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) HPB02 type HPB03 type HPB04 type HPBT04 type HPB05/06/07 type HPBT05 type Remarks PVD Coated Carbide Carbide ap(mm), f(mm/rev) PR930 KW10 ap f ap f ap f ap f Carbon Steel / Alloy Steel 30 100 - 0.3 0.03 0.4 0.04 0.45 0.07 0.5 0.1 Coolant Stainless Steel 30 80 - 0.3 0.02 0.4 0.03 0.45 0.05 0.5 0.07 Non-ferrous Metals - 0 5 3 0.3 0.05 0.4 0.06 0.45 0.1 0.5 0.15 Tip-Bars are sold in 1 piece boxes 1st Recommendation Std. Item. Deleted from the next catalogue
