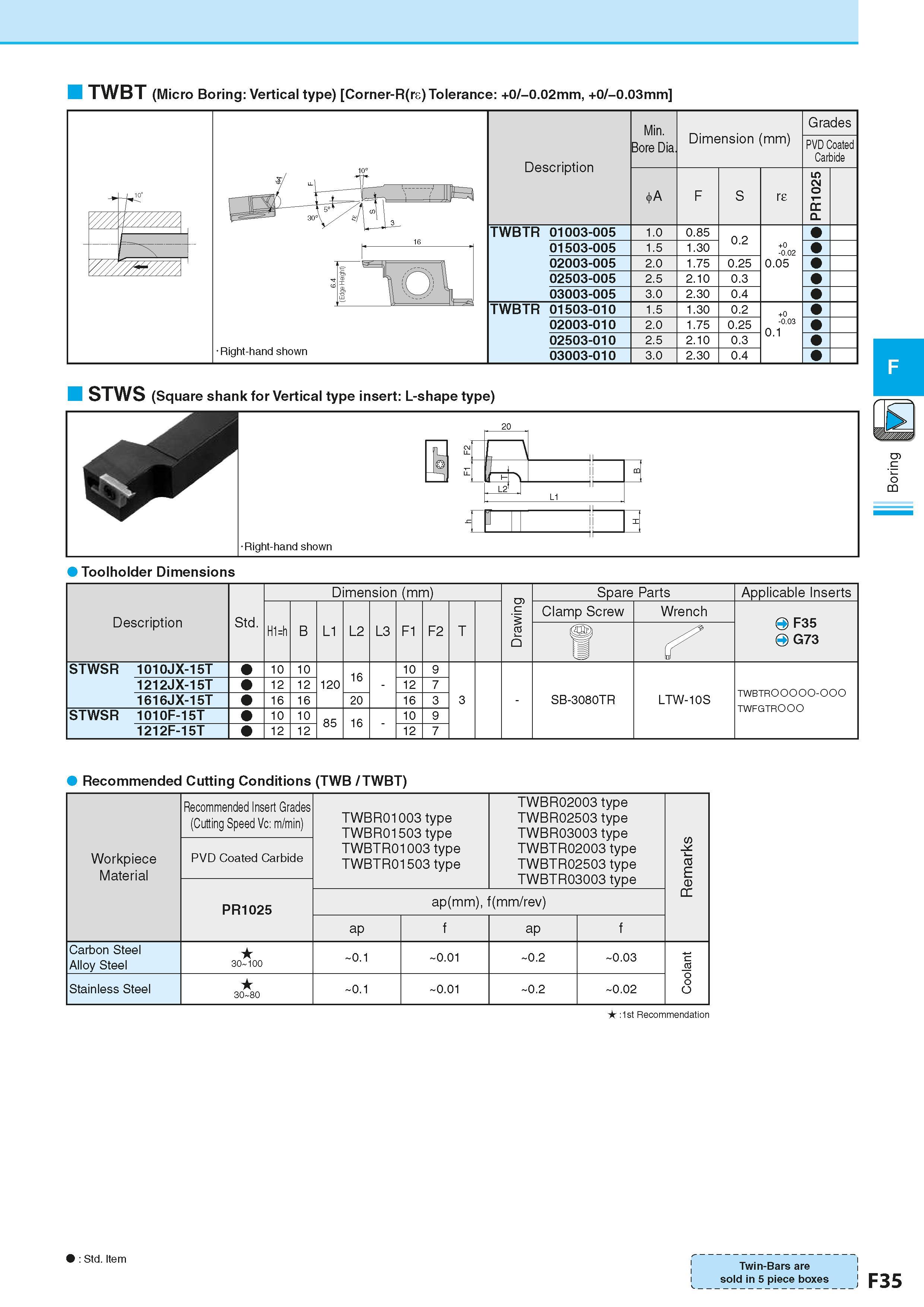

TWBT (Micro Boring: Vertical type) Corner-R(rg) Tolerance: +0/-0.02mm, +0/-0.03mm J10‘ 1 / Right-hand shown Description Min. Bore Dia Dimension (mm) Размеры инструмента указаны в мм Grades PVD Coated Carbide F S re PR1025 TWBTR 01003-005 1.0 0.85 0.2 +0 -0.02 0.05 01503-005 1.5 1.30 02003-005 2.0 1.75 0.25 02503-005 2.5 2.10 0.3 03003-005 3.0 2.30 0.4 TWBTR 01503-010 1.5 1.30 0.2 +0 -0.03 0.1 02003-010 2.0 1.75 0.25 02503-010 2.5 2.10 0.3 03003-010 3.0 2.30 0.4 STWS (Square shank for Vertical type insert: L-shape type) Right-hand shown 1 X Toolholder Dimensions Dimension (mm) Размеры инструмента указаны в мм Drawing Spare Parts Applicable Inserts Description Обозначение инструмента для заказа Std. Clamp Screw Wrench O F35 O G73 H1=h B L1 L2 L3 F1 F2 T u r STWSR 1010JX-15T 10 10 16 10 9 1212JX-15T 12 12 120 - 12 7 twbtrooooo-ooo twfgtrooo 1616JX-15T 16 16 20 16 3 3 - SB-3080TR LTW-10S STWSR 1010F-15T 10 10 85 16 10 9 1212F-15T 12 12 12 7 Recommended Cutting Conditions (TWB / TWBT) Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) TWBR01003 type TWBR01503 type TWBTR01003 type TWBTR01503 type TWBR02003 type TWBR02503 type TWBR03003 type TWBTR02003 type TWBTR02503 type TWBTR03003 type Remarks PVD Coated Carbide PR1025 ap(mm), f(mm/rev) ap f ap f Carbon Steel Alloy Steel 30 100 0.1 0.01 0.2 0.03 Coolant Stainless Steel 30 80 0.1 0.01 0.2 0.02 :1st Recommendation Std. Item T T „ Twin-Bars are i sold in 5 piece boxes F35 Boring
