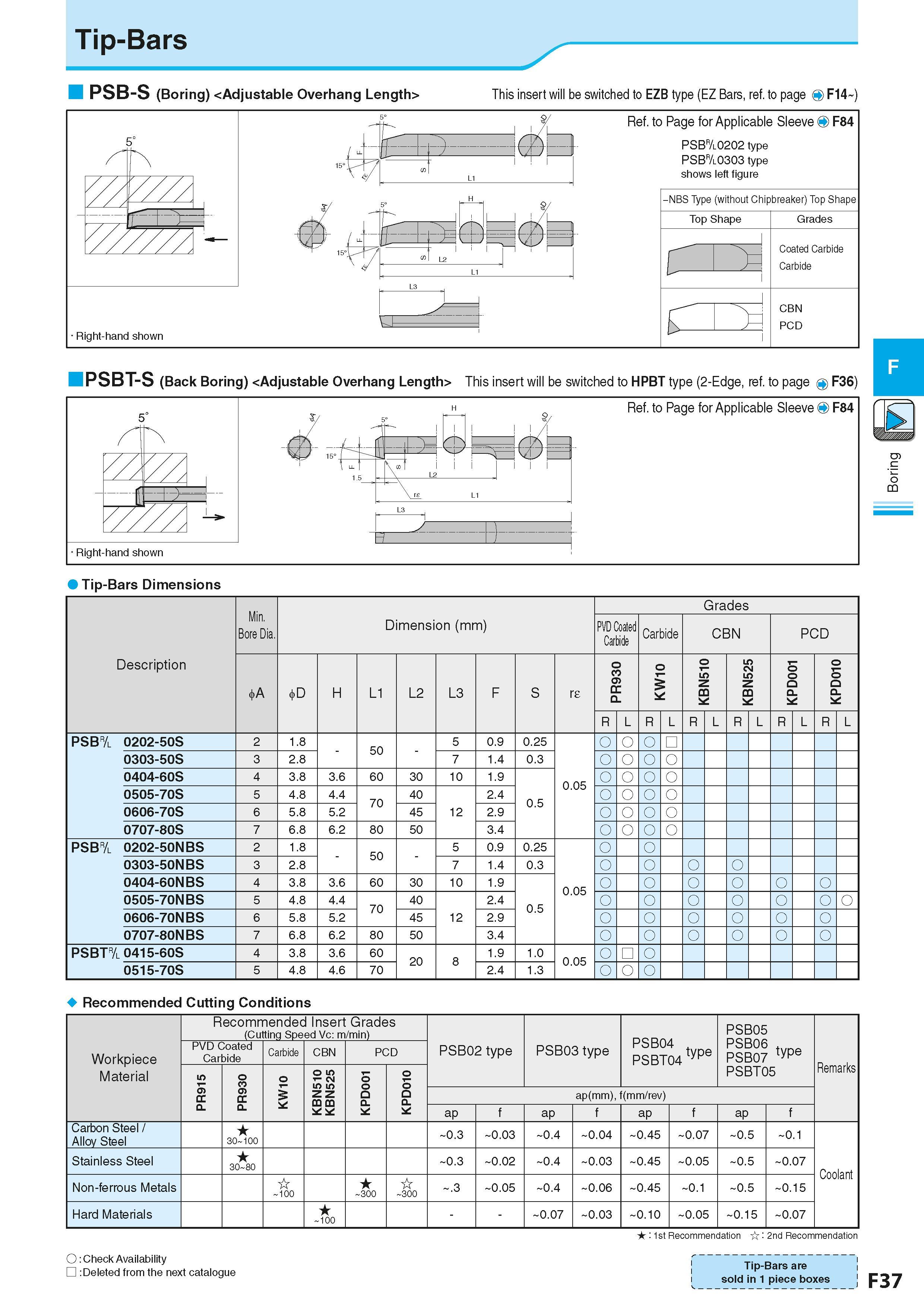

Tip-Bars PSB-S (Boring) This insert will be switched to EZB type (EZ Bars, ref. to page F14 PSBT-S (Back Boring) This insert will be switched to HPBT type (2-Edge, ref. to page F36) Tip-Bars Dimensions Description Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Grades PVD Coated Carbide Carbide CBN PCD A D H L1 L2 L3 F S re PR930 KW10 KBN510 KBN525 KPD001 KPD010 R L R L R L R L R L R L PSB& 0202-50S 2 1.8 - 50 - 5 0.9 0.25 0.05 o 0303-50S 3 2.8 7 1.4 0.3 0404-60S 4 3.8 3.6 60 30 10 1.9 0.5 0505-70S 5 4.8 4.4 70 40 12 2.4 0606-70S 6 5.8 5.2 45 2.9 0707-80S 7 6.8 6.2 80 50 3.4 PSB& 0202-50NBS 2 1.8 - 50 - 5 0.9 0.25 0.05 0303-50NBS 3 2.8 7 1.4 0.3 0404-60NBS 4 3.8 3.6 60 30 10 1.9 0.5 0505-70NBS 5 4.8 4.4 70 40 12 2.4 o 0606-70NBS 6 5.8 5.2 45 2.9 0707-80NBS 7 6.8 6.2 80 50 3.4 PSBT& 0415-60S 4 3.8 3.6 60 20 8 1.9 1.0 0.05 o o 0515-70S 5 4.8 4.6 70 2.4 1.3 o Recommended Cutting Conditions Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) PSB02 type PSB03 type PSB04 t PSBT04 type PSB05 PSB06 twr,Q PSB07 type PSBT05 Remarks PVD Coated Carbide Carbide CBN PCD PR915 PR930 KW10 KBN510 KBN525 KPD001 KPD010 ap(mm), f(mm/rev) ap f ap f ap f ap f Carbon Steel / Alloy Steel 30 100 0.3 0.03 0.4 0.04 0.45 0.07 0.5 0.1 Coolant Stainless Steel 30 80 0.3 0.02 0.4 0.03 0.45 0.05 0.5 0.07 Non-ferrous Metals 100 300 300 .3 0.05 0.4 0.06 0.45 0.1 0.5 0.15 Hard Materials 100 0.07 0.03 0.10 0.05 0.15 0.07 O :Check Availability :Deleted from the next catalogue 1st Recommendation : 2nd Recommendation Tip-Bars are sold in 1 piece boxes F37 Boring
