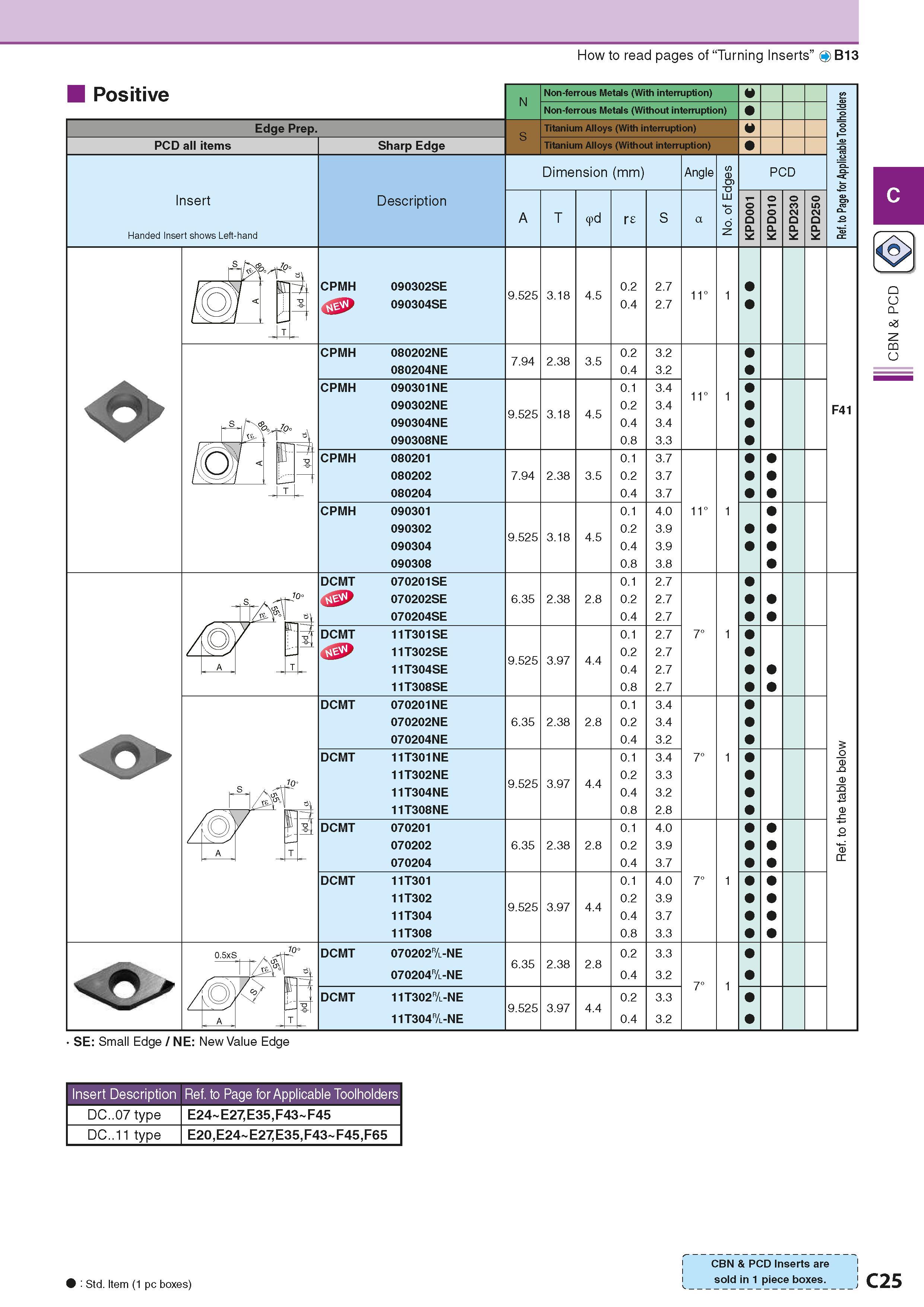

How to read pages of “Turning Inserts” O B13 Positive Edge Prep. PCD all items Insert Handed Insert shows Left-hand Sharp Edge Description Non-ferrous Metals (With interruption) Non-ferrous Metals (Without interruption) Titanium Alloys (With interruption) Titanium Alloys (Without interruption) Dimension (mm) Размеры инструмента указаны в мм A r £ Angle PCD 'T' CPMH 090302SE 090304SE 9.525 3.18 4.5 0.2 0.4 2.7 2.7 11° CPMH 080202NE 080204NE 7.94 2.38 3.5 0.2 0.4 3.2 3.2 CPMH 090301NE 090302NE 090304NE 090308NE 9.525 3.18 4.5 0.1 0.2 0.4 0.8 3.4 3.4 3.4 3.3 11° CPMH 080201 080202 080204 7.94 2.38 3.5 0.1 0.2 0.4 3.7 3.7 3.7 CPMH 090301 090302 090304 090308 9.525 3.18 4.5 0.1 0.2 0.4 0.8 4.0 3.9 3.9 3.8 11° a u o. °a z CQ u F41 DCMT 070201SE 070202SE 070204SE 6.35 2.38 0.1 0.2 0.4 2.7 2.7 2.7 DCMT 11T301SE 11T302SE 11T304SE 11T308SE 9.525 3.97 4.4 0.1 0.2 0.4 0.8 2.7 2.7 2.7 2.7 DCMT 070201NE 070202NE 070204NE 6.35 2.38 0.1 0.2 0.4 3.4 3.4 3.2 DCMT 11T301NE 11T302NE 11T304NE 11T308NE 9.525 3.97 4.4 0.1 0.2 0.4 0.8 3.4 3.3 3.2 2.8 7° DCMT 070201 070202 070204 6.35 2.38 0.1 0.2 0.4 4.0 3.9 3.7 DCMT 11T301 11T302 11T304 11T308 9.525 3.97 4.4 0.1 0.2 0.4 0.8 4.0 3.9 3.7 3.3 DCMT 070202&-NE 070204&-NE 6.35 2.38 0.2 0.4 3.3 3.2 DCMT 11T302&-NE 11T304&-NE 7° 9.525 3.97 4.4 0.2 0.4 3.3 3.2 SE: Small Edge / NE: New Value Edge N S T S a Insert Description Ref. to Page for Applicable Toolholders DC..07 type E24 E27,E35,F43 F45 DC..11 type E20,E24 E27,E35,F43 F45,F65 I CBN & PCD Inserts are Std. Item (1 pc boxes) L f d ln 1 pi ce bf,Xesl C25
