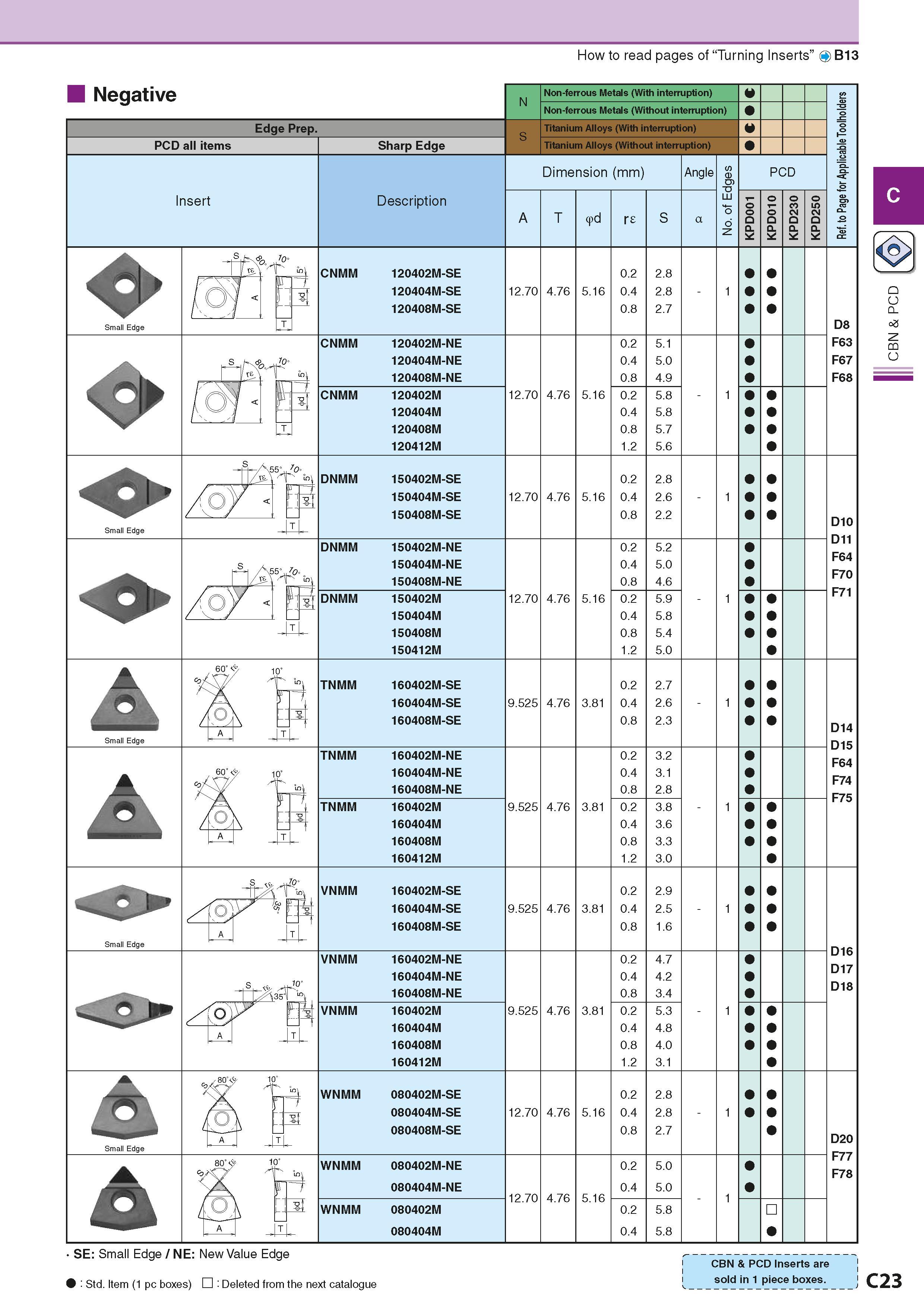

How to read pages of “Turning Inserts” O B13 Negative Edge Prep. PCD all items Insert Sharp Edge Description Non-ferrous Metals (With interruption) Non-ferrous Metals (Without interruption) Titanium Alloys (With interruption) Titanium Alloys (Without interruption) Dimension (mm) Размеры инструмента указаны в мм A r£ Angle PCD Jo- CNMM 120402M-SE 120404M-SE 120408M-SE 12.70 4.76 5.16 0.2 0.4 0.8 2.8 2.8 2.7 CNMM 120402M-NE 120404M-NE 120408M-NE 0.2 0.4 0.8 5.1 5.0 4.9 CNMM 120402M 120404M 120408M 120412M 12.70 4.76 5.16 0.2 0.4 0.8 1.2 5.8 5.8 5.7 5.6 D8 F63 F67 F68 a u Cl o3 Z U Small Edge DNMM 150402M-SE 150404M-SE 150408M-SE 12.70 4.76 5.16 0.2 0.4 0.8 2.8 2.6 2.2 DNMM 150402M-NE 150404M-NE 150408M-NE 0.2 0.4 0.8 5.2 5.0 4.6 DNMM 150402M 150404M 150408M 150412M 12.70 4.76 5.16 0.2 0.4 0.8 1.2 5.9 5.8 5.4 5.0 D10 D11 F64 F70 F71 Small Edge 10‘ 'T n TNMM 160402M-SE 160404M-SE 160408M-SE 9.525 4.76 3.81 0.2 0.4 0.8 2.7 2.6 2.3 TNMM 10' "r 160402M-NE 160404M-NE 160408M-NE 0.2 0.4 0.8 3.2 3.1 2.8 TNMM 160402M 160404M 160408M 160412M 9.525 4.76 3.81 0.2 0.4 0.8 1.2 3.8 3.6 3.3 3.0 D14 D15 F64 F74 F75 VNMM 160402M-SE 160404M-SE 160408M-SE 9.525 4.76 3.81 0.2 0.4 0.8 2.9 2.5 1.6 VNMM /tQ s,. i°‘ 351 160402M-NE 160404M-NE 160408M-NE 0.2 0.4 0.8 4.7 4.2 3.4 VNMM 160402M 160404M 160408M 160412M 9.525 4.76 3.81 0.2 0.4 0.8 1.2 5.3 4.8 4.0 3.1 D16 D17 D18 A o A WNMM 080402M-SE 080404M-SE 080408M-SE 12.70 4.76 5.16 0.2 0.4 0.8 2.8 2.8 2.7 A WNMM 080402M-NE 080404M-NE WNMM 080402M 080404M 12.70 4.76 5.16 0.2 0.4 5.0 5.0 0.2 0.4 D20 F77 F78 SE: Small Edge / NE: New Value Edge Std. Item (1 pc boxes) Deleted from the next catalogue CBN & PCD Inserts are sold in 1 piece boxes. C23 N S T S a Small Edge T T A T Small Edge A T 80" v T Small Edge 80’ A T
