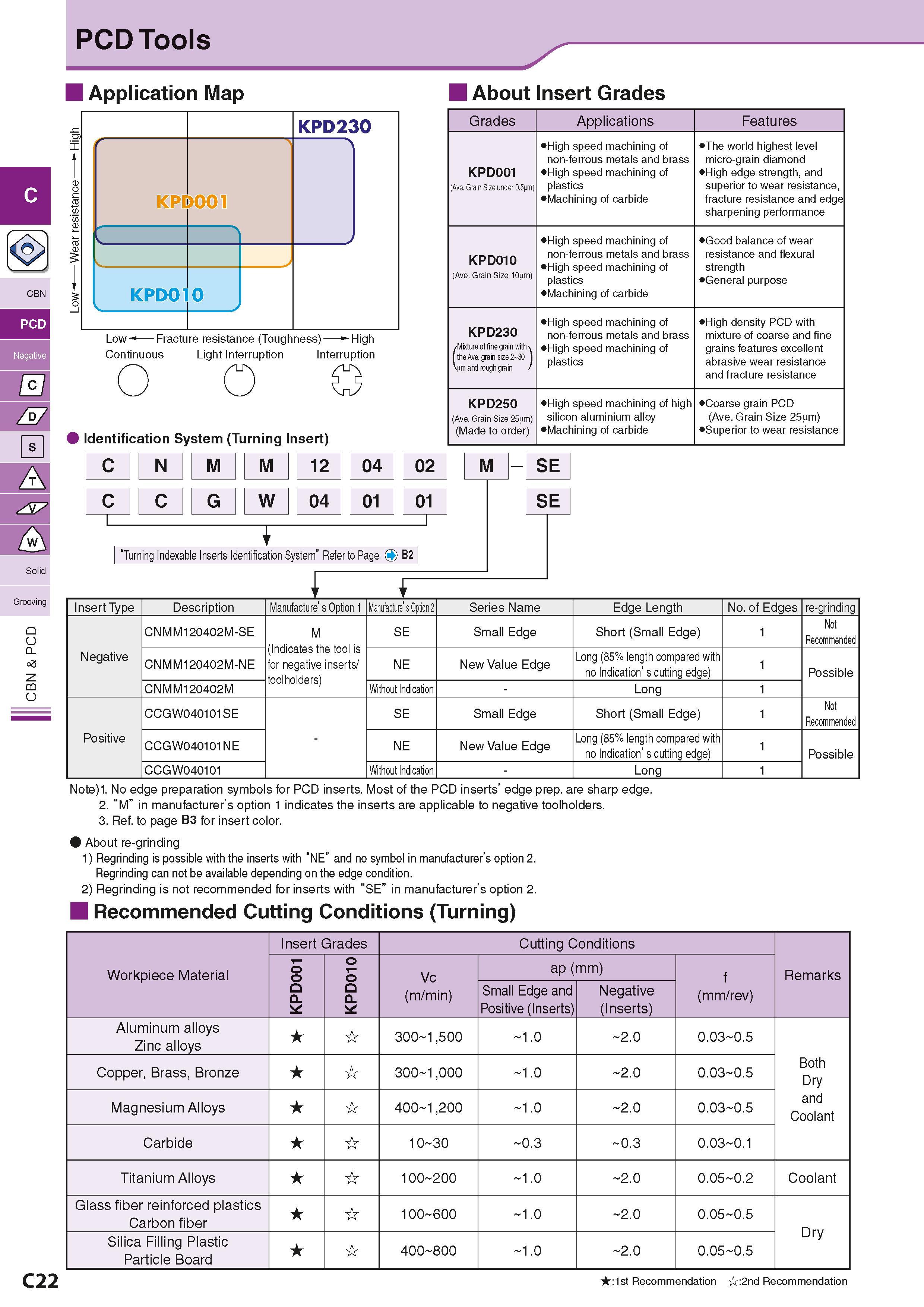

PCD Tools C A Solid Grooving O o 0 o3 2 CD o Application Map KPD001 KPD230 m KPD01 Low Fracture resistance (Toughness) High Continuous Light Interruption Interruption About Insert Grades Identification System (Turning Insert) Grades Applications Features KPD001 (Ave. Grain Size under 0.5p) High speed machining of non-ferrous metals and brass High speed machining of plastics Machining of carbide The world highest level micro-grain diamond High edge strength, and superior to wear resistance, fracture resistance and edge sharpening performance KPD010 (Ave. Grain Size 10 im) High speed machining of non-ferrous metals and brass High speed machining of plastics Machining of carbide Good balance of wear resistance and flexural strength General purpose KPD230 /Mixture of fine grain with \ (the Ave. grain size 2 30 ) Vm and rough grain / High speed machining of non-ferrous metals and brass High speed machining of plastics High density PCD with mixture of coarse and fine grains features excellent abrasive wear resistance and fracture resistance KPD250 (Ave. Grain Size 25 im) (Made to order) High speed machining of high silicon aluminium alloy Machining of carbide Coarse grain PCD (Ave. Grain Size 25 m) Superior to wear resistance C N M M 12 04 02 C C G W 04 01 01 M “Turning Indexable Inserts Identification System" Refer to Page B2 SE SE Insert Type Description Manufacture’s Option 1 Manufacture’s Option 2 Series Name Edge Length No. of Edges re-grinding Negative CNMM120402M-SE M (Indicates the tool is for negative inserts/ toolholders) SE Small Edge Short (Small Edge) 1 Not Recommended CNMM120402M-NE NE New Value Edge Long (85% length compared with no Indication’s cutting edge) 1 Possible CNMM120402M Without Indication - Long 1 Positive CCGW040101SE - SE Small Edge Short (Small Edge) 1 Not Recommended CCGW040101NE NE New Value Edge Long (85% length compared with no Indication’s cutting edge) 1 Possible CCGW040101 Without Indication - Long 1 Note)1. No edge preparation symbols for PCD inserts. Most of the PCD inserts’ edge prep. are sharp edge. 2. “M” in manufacturer’soption 1 indicates the inserts are applicable to negative toolholders. 3. Ref. to page B3 for insert color. About re-grinding 1) Regrinding is possible with the inserts with “NE” and no symbol in manufacturer’soption 2. Regrinding can not be available depending on the edge condition. 2) Regrinding is not recommended for inserts with “SE” in manufacturer’soption 2. Recommended Cutting Conditions (Turning) Workpiece Material Insert Grades Cutting Conditions Remarks KPD001 KPD010 Vc (m/min) ap (mm) f (mm/rev) Small Edge and Positive (Inserts) Negative (Inserts) Aluminum alloys Zinc alloys 300 1,500 1.0 2.0 0.03 0.5 Both Dry and Coolant Copper, Brass, Bronze 300 1,000 1.0 2.0 0.03 0.5 Magnesium Alloys 400 1,200 1.0 2.0 0.03 0.5 Carbide 10 30 0.3 0.3 0.03 0.1 Titanium Alloys 100 200 1.0 2.0 0.05 0.2 Coolant Glass fiber reinforced plastics Carbon fiber 100 600 1.0 2.0 0.05 0.5 Dry Silica Filling Plastic Particle Board 400 800 1.0 2.0 0.05 0.5 C22 :1st Recommendation :2nd Recommendation
