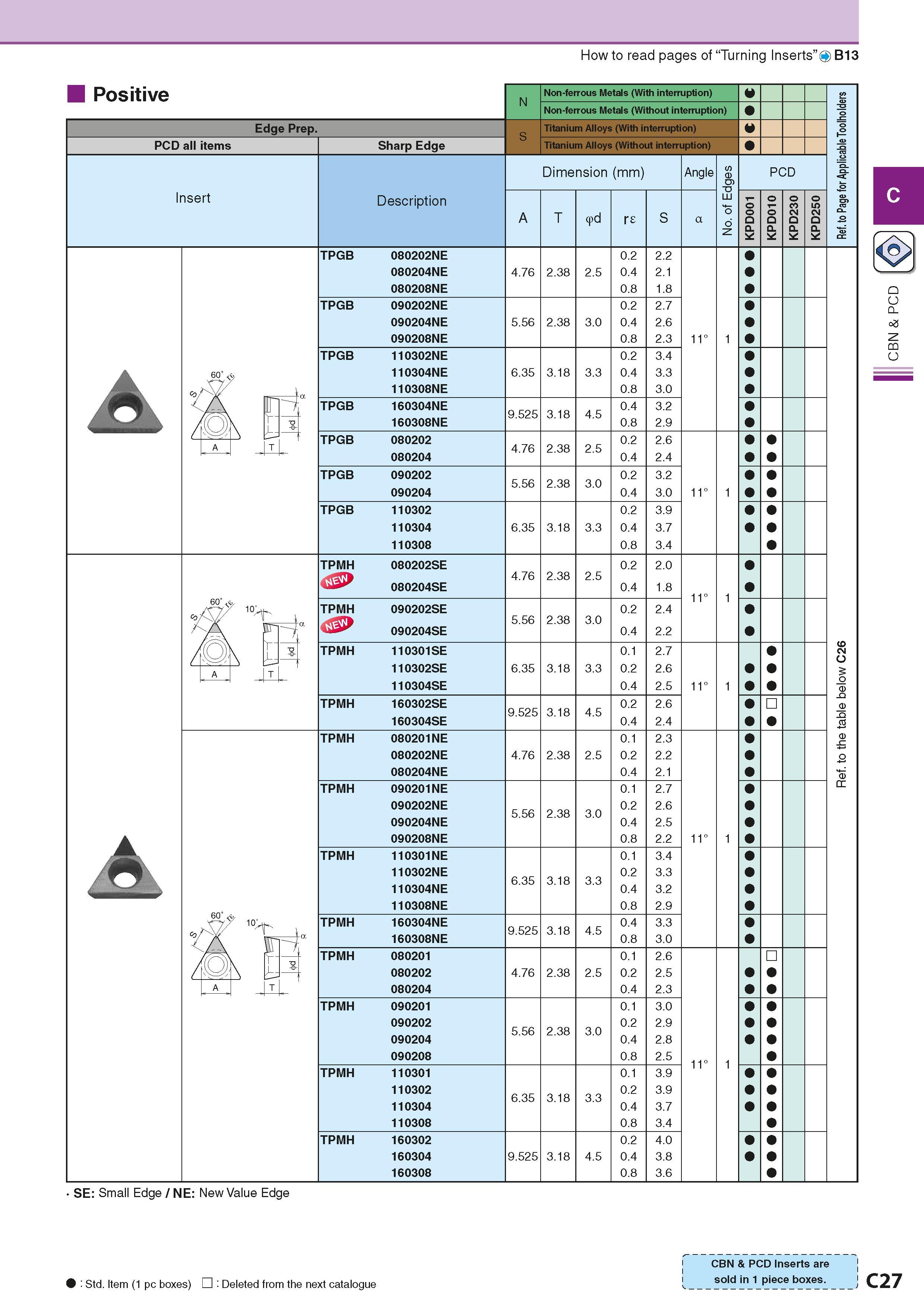

How to read pages of “Turning Inserts” O B13 Positive Edge Prep. PCD all items Insert N Non-ferrous Metals (With interruption) Q Ref. to Page for Applicable Toolholders Non-ferrous Metals (Without interruption) S Titanium Alloys (With interruption) Q Sharp Edge Titanium Alloys (Without interruption) Description Dimension (mm) Размеры инструмента указаны в мм Angle No. of Edges PCD A T d r £ S a KPD001 KPD010 KPD230 KPD250 TPGB 080202NE 0.2 2.2 080204NE 4.76 2.38 2.5 0.4 2.1 080208NE 0.8 1.8 TPGB 090202NE 0.2 2.7 090204NE 5.56 2.38 3.0 0.4 2.6 090208NE 0.8 2.3 11° 1 TPGB 110302NE 0.2 3.4 110304NE 6.35 3.18 3.3 0.4 3.3 110308NE 0.8 3.0 TPGB 160304NE 9.525 3.18 4.5 0.4 3.2 160308NE 0.8 2.9 TPGB 080202 4.76 2.38 2.5 0.2 2.6 080204 0.4 2.4 TPGB 090202 5.56 2.38 3.0 0.2 3.2 090204 0.4 3.0 11° 1 TPGB 110302 0.2 3.9 110304 6.35 3.18 3.3 0.4 3.7 110308 0.8 3.4 Ref. to the table below C26 TPMH 080202SE 080204SE 4.76 2.38 2.5 0.2 0.4 2.0 1.8 11° 1 TPMH 090202SE 090204SE 5.56 2.38 3.0 0.2 0.4 2.4 2.2 TPMH 110301SE 0.1 2.7 110302SE 6.35 3.18 3.3 0.2 2.6 110304SE 0.4 2.5 11° 1 TPMH 160302SE 9.525 3.18 4.5 0.2 2.6 160304SE 0.4 2.4 TPMH 080201NE 0.1 2.3 080202NE 4.76 2.38 2.5 0.2 2.2 080204NE 0.4 2.1 TPMH 090201NE 0.1 2.7 090202NE 5.56 2.38 3.0 0.2 2.6 090204NE 0.4 2.5 090208NE 0.8 2.2 11° 1 TPMH 110301NE 0.1 3.4 110302NE 6.35 3.18 3.3 0.2 3.3 110304NE 0.4 3.2 110308NE 0.8 2.9 TPMH 160304NE 9.525 3.18 4.5 0.4 3.3 160308NE 0.8 3.0 TPMH 080201 0.1 2.6 080202 4.76 2.38 2.5 0.2 2.5 080204 0.4 2.3 TPMH 090201 0.1 3.0 090202 5.56 2.38 3.0 0.2 2.9 090204 0.4 2.8 090208 0.8 2.5 11° 1 TPMH 110301 0.1 3.9 110302 6.35 3.18 3.3 0.2 3.9 110304 0.4 3.7 110308 0.8 3.4 TPMH 160302 0.2 4.0 160304 9.525 3.18 4.5 0.4 3.8 160308 0.8 3.6 A fin’.c, a u Cl cU Z CQ u SE: Small Edge / NE: New Value Edge T Std. Item (1 pc boxes) Deleted from the next catalogue CBN & PCD Inserts are sold in 1 piece boxes. J C27
