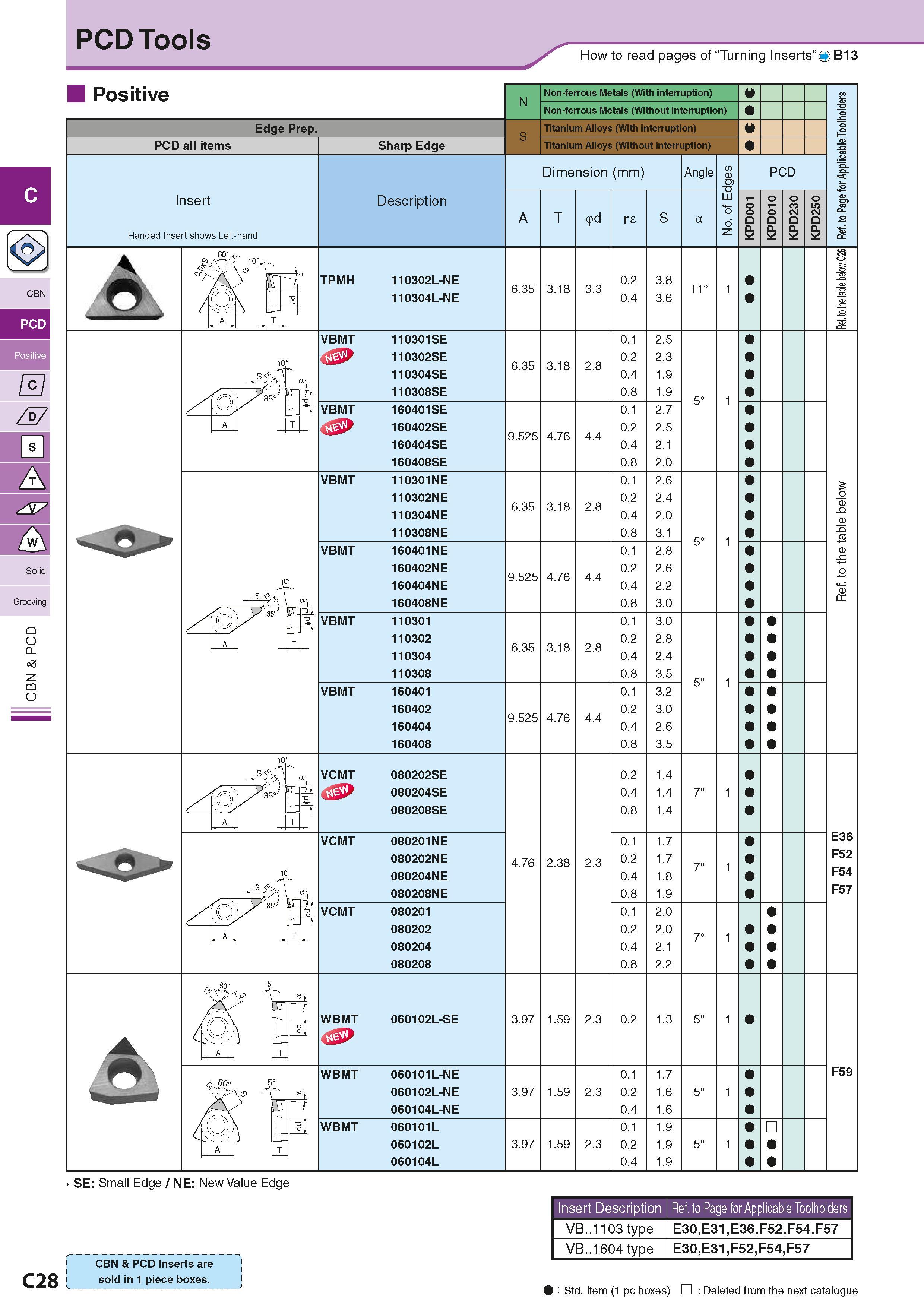

PCD Tools How to read pages of “Turning Inserts” O B13 < > Positive Edge Prep. PCD all items Insert Handed Insert shows Left-hand Sharp Edge Description Non-ferrous Metals (With interruption) Non-ferrous Metals (Without interruption) Titanium Alloys (With interruption) Titanium Alloys (Without interruption) Dimension (mm) Размеры инструмента указаны в мм A re Angle PCD 60' ZAPs 11 A > ( >' \ Y A T TPMH 110302L-NE 110304L-NE 6.35 3.18 3.3 0.2 0.4 3.8 3.6 11° Grooving Q U Q. oa z CQ u VBMT 110301SE 110302SE 110304SE 110308SE 6.35 3.18 0.1 0.2 0.4 0.8 2.5 2.3 1.9 1.9 VBMT 160401SE 160402SE 160404SE 160408SE 9.525 4.76 4.4 0.1 0.2 0.4 0.8 2.7 2.5 2.1 2.0 VBMT 110301NE 110302NE 110304NE 110308NE 6.35 3.18 0.1 0.2 0.4 0.8 2.6 2.4 2.0 3.1 VBMT 160401NE 160402NE 160404NE 160408NE 9.525 4.76 4.4 0.1 0.2 0.4 0.8 2.8 2.6 2.2 3.0 VBMT 110301 110302 110304 110308 6.35 3.18 0.1 0.2 0.4 0.8 3.0 2.8 2.4 3.5 VBMT 160401 160402 160404 160408 9.525 4.76 4.4 0.1 0.2 0.4 0.8 3.2 3.0 2.6 3.5 VCMT 080202SE 080204SE 080208SE 0.2 0.4 0.8 1.4 1.4 1.4 7° VCMT 080201NE 080202NE 080204NE 080208NE 4.76 2.38 2.3 0.1 0.2 0.4 0.8 1.7 1.7 1.8 1.9 VCMT 080201 080202 080204 080208 0.1 0.2 0.4 0.8 2.0 2.0 2.1 2.2 7° E36 F52 F54 F57 WBMT 060102L-SE 3.97 1.59 2.3 0.2 1.3 20“ 5° \(j> T WBMT 060101L-NE 060102L-NE 060104L-NE 3.97 1.59 2.3 0.1 0.2 0.4 1.7 1.6 1.6 5° WBMT 060101L 060102L 060104L 3.97 1.59 2.3 0.1 0.2 0.4 1.9 1.9 1.9 5° F59 SE: Small Edge / NE: New Value Edge N S T S a CBN PCD Solid Insert Description Ref. to Page for Applicable Toolholders VB..1103 type E30,E31,E36,F52,F54,F57 VB..1604 type E30,E31,F52,F54,F57 i CBN & PCD Inserts are i i C28 l sold in 1 piece boxes. v ‘ % Std. Item (1 pc boxes) Deleted from the next catalogue
