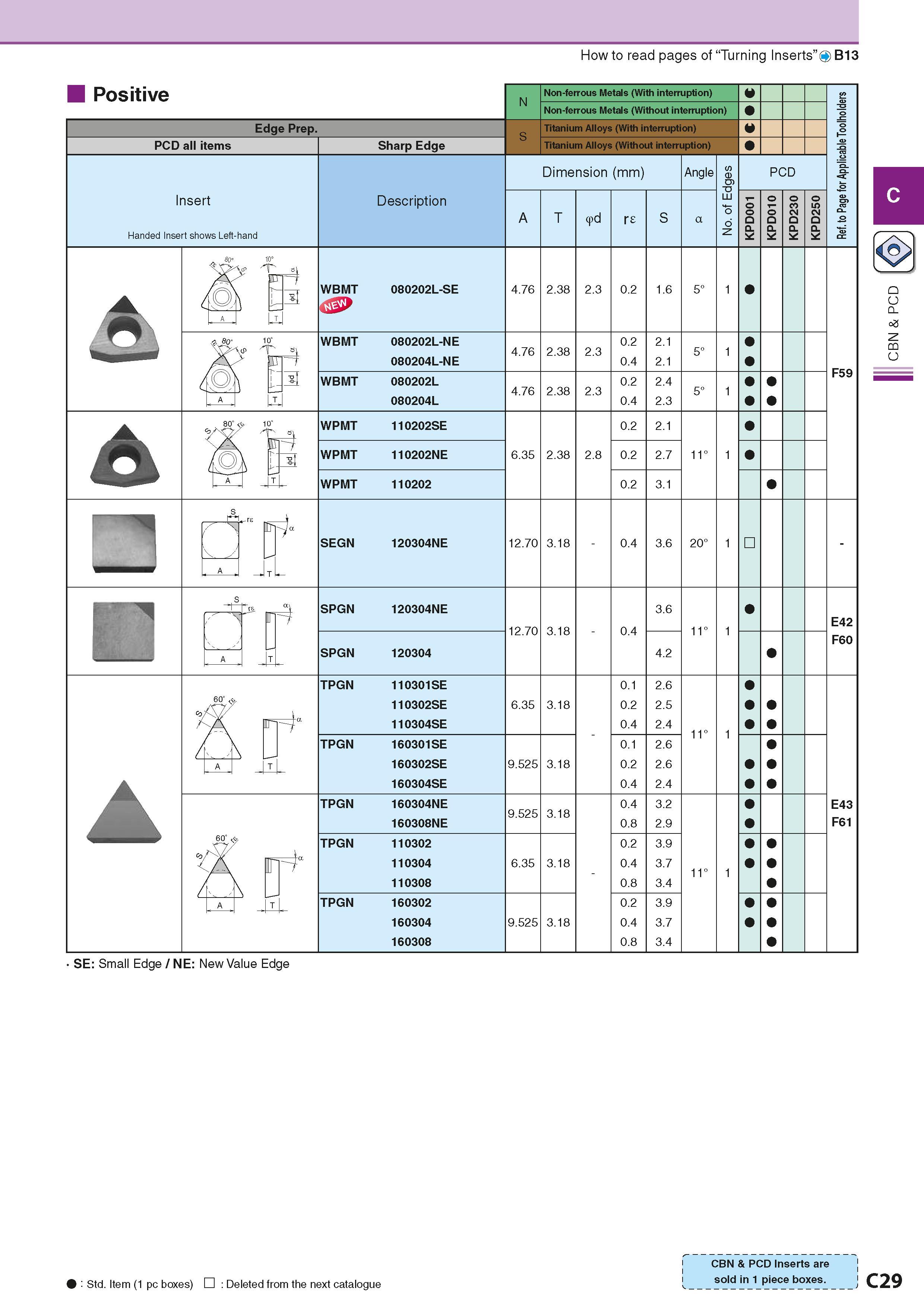

How to read pages of “Turning Inserts” O B13 Positive Edge Prep. PCD all items Insert Handed Insert shows Left-hand Sharp Edge Description Non-ferrous Metals (With interruption) Non-ferrous Metals (Without interruption) Titanium Alloys (With interruption) Titanium Alloys (Without interruption) Dimension (mm) Размеры инструмента указаны в мм A r£ Angle Q N Q N PCD A . 80- 10" WBMT 080202L-SE 4.76 2.38 2.3 0.2 1.6 5° N T' S1 WBMT 080202L-NE 080204L-NE 4.76 2.38 2.3 0.2 0.4 2.1 2.1 WBMT 080202L 080204L 4.76 2.38 2.3 0.2 0.4 2.4 2.3 10' 'T' Pi WPMT 110202SE 0.2 2.1 WPMT 110202NE 6.35 2.38 0.2 2.7 11° WPMT 110202 0.2 3.1 N F59 a u Cl cU Z CQ u S SEGN 120304NE 12.70 3.18 0.4 3.6 20° SPGN 120304NE 3.6 N 12.70 3.18 0.4 11° SPGN 120304 4.2 N E42 F60 TPGN nn 110301SE 110302SE 110304SE 6.35 3.18 0.1 0.2 0.4 2.6 2.5 2.4 TPGN 160301SE 160302SE 160304SE 9.525 3.18 0.1 0.2 0.4 2.6 2.6 2.4 11° TPGN 160304NE 160308NE 9.525 3.18 0.4 0.8 3.2 2.9 TPGN n 110302 110304 110308 6.35 3.18 0.2 0.4 0.8 3.9 3.7 3.4 11° TPGN 160302 160304 160308 9.525 3.18 0.2 0.4 0.8 3.9 3.7 3.4 E43 F61 SE: Small Edge / NE: New Value Edge N S T S a A T T A T S A T T T 0 Std. Item (1 pc boxes) Deleted from the next catalogue CBN & PCD Inserts are sold in 1 piece boxes. J C29
