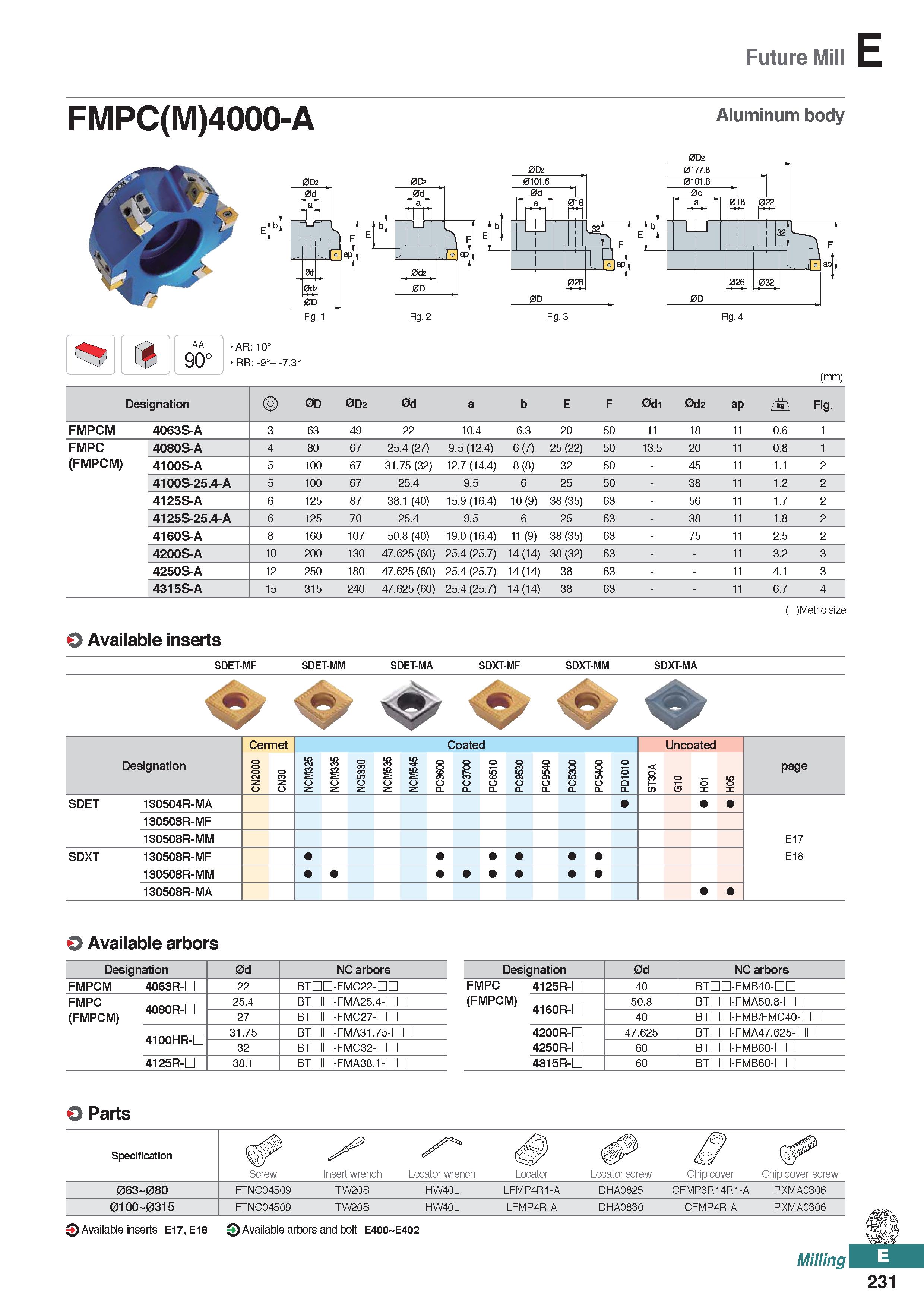

Future Mill FM PC(M)4000-A Aluminum body AA 90° AR: 10° RR: -9° -7.3° (mm) Designation 0D 0D2 0d a b E F 0d1 0d2 ap / \ Fig. FMPCM 4063S-A 3 63 49 22 10.4 6.3 20 50 11 18 11 0.6 1 FMPC 4080S-A 4 80 67 25.4 (27) 9.5 (12.4) 6 (7) 25 (22) 50 13.5 20 11 0.8 1 (FMPCM) 4100S-A 5 100 67 31.75 (32) 12.7 (14.4) 8 (8) 32 50 - 45 11 1.1 2 4100S-25.4-A 5 100 67 25.4 9.5 6 25 50 - 38 11 1.2 2 4125S-A 6 125 87 38.1 (40) 15.9 (16.4) 10 (9) 38 (35) 63 - 56 11 1.7 2 4125S-25.4-A 6 125 70 25.4 9.5 6 25 63 - 38 11 1.8 2 4160S-A 8 160 107 50.8 (40) 19.0 (16.4) 11 (9) 38 (35) 63 - 75 11 2.5 2 4200S-A 10 200 130 47.625 (60) 25.4 (25.7) 14 (14) 38 (32) 63 11 3.2 3 4250S-A 12 250 180 47.625 (60) 25.4 (25.7) 14 (14) 38 63 11 4.1 3 4315S-A 15 315 240 47.625 (60) 25.4 (25.7) 14 (14) 38 63 11 6.7 4 O Available inserts ( )Metric size SDET-MF SDET-MM SDET-MA SDXT-MF SDXT-MM SDXT-MA Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NCM335 NC5330 NCM535 NCM545 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 PD1010 ST30A G10 H01 H05 SDET 130504R-MA 130508R-MF 130508R-MM E17 SDXT 130508R-MF E18 130508R-MM 130508R-MA O Available arbors Designation 0d NC arbors Designation 0d NC arbors FMPCM 4063R-D 22 BTHD-FMC22-HD FMPC 4125R-D 40 BTHO-FMB40-HO FMPC 4080R-D 25.4 BTHD-FMA25.4-DD (FMPCM) 50.8 BTHD-FMA50.8-DD (FMPCM) 27 BTHD-FMC27-HD 40 BTDD-FMB/FMC40-nn 4100HR-D 31.75 BTHD-FMA31.75-HD 4200R-D 47.625 BTDD-FMA47.625-nn 32 BTHD-FMC32-HD 4250R-D 60 BTHD-FMB60-HD 4125R-D 38.1 BTHD-FMA38.1-DD 4315R-D 60 BTHD-FMB60-HD O Parts Specification Screw Insert wrench Locator wrench Locator Locator screw Chip cover Chip cover screw 063 08O FTNC04509 TW20S HW40L LFMP4R1-A DHA0825 CFMP3R14R1-A PXMA0306 01OO 0315 FTNC04509 TW20S HW40L LFMP4R-A DHA0830 CFMP4R-A PXMA0306 Q Available inserts E17, E18 O Available arbors and bolt E400 E402 Milling 231
