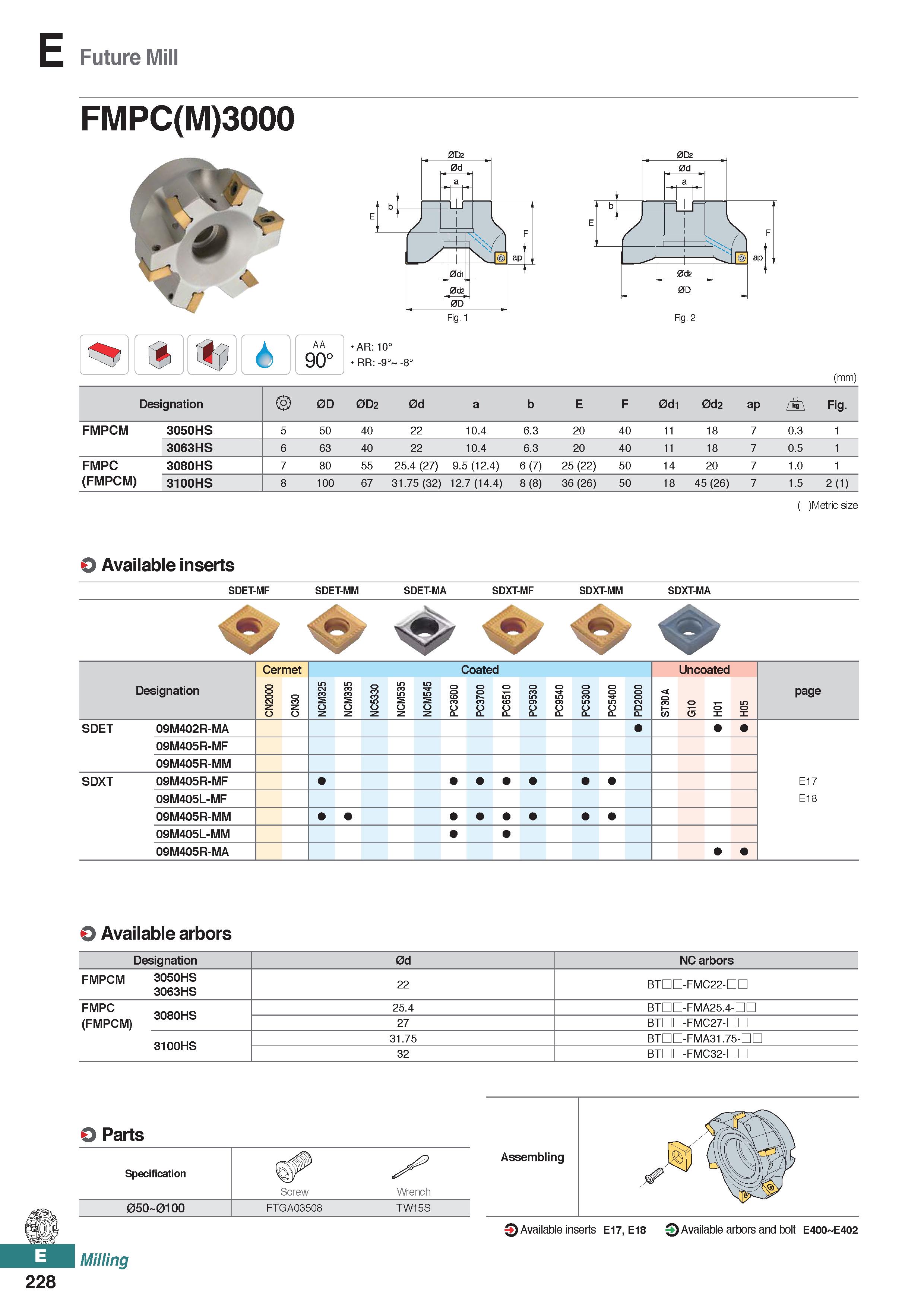

Future Mill FMPC(M)3000 AA 90° 0D2 / 0d Fig. 1 AR: 10° RR: -9° -8° 0D2 S UT 0d2 0D Fig. 2 (mm) Designation 0D 0D2 0d a b E F 0d1 0d2 ap Fig. FMPCM 3050HS 5 50 40 22 10.4 6.3 20 40 11 18 7 0.3 1 3063HS 6 63 40 22 10.4 6.3 20 40 11 18 7 0.5 1 FMPC 3080HS 7 80 55 25.4 (27) 9.5 (12.4) 6 (7) 25 (22) 50 14 20 7 1.0 1 (FMPCM) 3100HS 8 100 67 31.75 (32) 12.7 (14.4) 8 (8) 36 (26) 50 18 45 (26) 7 1.5 2 (1) ( )Metric size O Available inserts SDET-MF SDET-MM SDET-MA SDXT-MF SDXT-MM SDXT-MA Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NCM335 NC5330 NCM535 NCM545 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 PD2000 ST30A G10 H01 5 0 H SDET 09M402R-MA 09M405R-MF 09M405R-MM SDXT 09M405R-MF E17 09M405L-MF E18 09M405R-MM 09M405L-MM 09M405R-MA O Available arbors Designation 0d NC arbors FMPCM 3050HS 3063HS 22 BTDD-FMC22-DC FMPC 3080HS 25.4 BTHD-FMA25.4-HD (FMPCM) 27 BTHD-FMC27-DD 3100HS 31.75 BTHD-FMA31.75-DD 32 BTHD-FMC32-DD O Parts Specification 05O 01OO Screw Wrench FTGA03508 TW15S Milling 228
