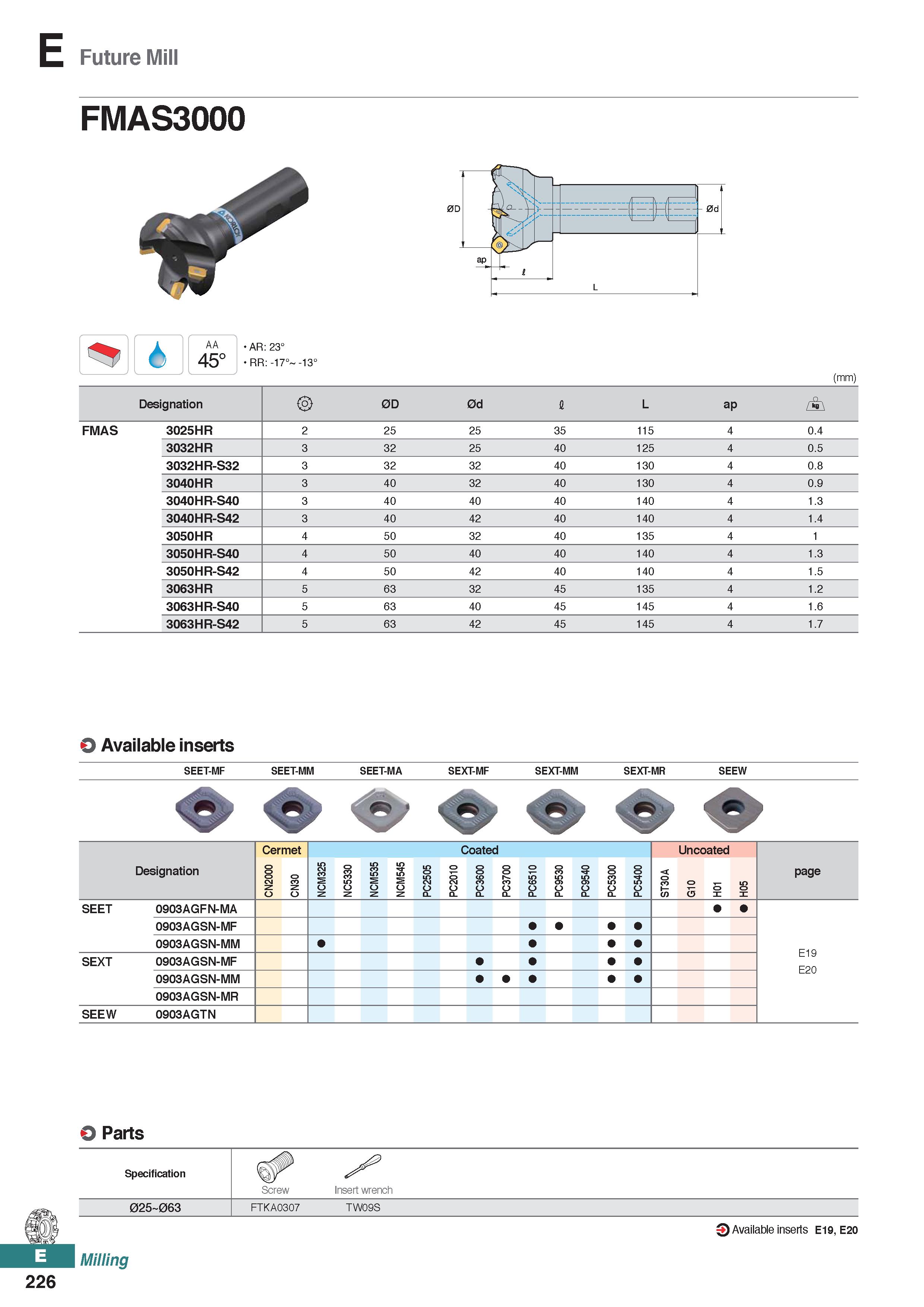

Future Mill FMAS3000 AA 45° AR: 23° RR: -17° -13° (mm) Designation 2> 0D 0d I L ap / \ FMAS 3025HR 2 25 25 35 115 4 0.4 3032HR 3 32 25 40 125 4 0.5 3032HR-S32 3 32 32 40 130 4 0.8 3040HR 3 40 32 40 130 4 0.9 3040HR-S40 3 40 40 40 140 4 1.3 3040HR-S42 3 40 42 40 140 4 1.4 3050HR 4 50 32 40 135 4 1 3050HR-S40 4 50 40 40 140 4 1.3 3050HR-S42 4 50 42 40 140 4 1.5 3063HR 5 63 32 45 135 4 1.2 3063HR-S40 5 63 40 45 145 4 1.6 3063HR-S42 5 63 42 45 145 4 1.7 0 Available inserts SEET-MF SEET-MM SEET-MA SEXT-MF SEXT-MM SEXT-MR SEEW 6 - Cermet Coated Uncoated Designation CN2000 CN30 5 2 3 s C N 0 3 CO in C N 5 3 5 M C z 5 4 5 M C N 5 0 5 2 C P 0 01 2 C P 6 3 C Q 0 0 7 3 C Q 0 51 6 C P 0 3 5 9 C P 0 4 5 9 C CL 0 0 3 5 C P 0 0 4 5 C CL 0 o t- ui T 1 0 0 01 (9 X X page SEET 0903AGFN-MA 0903AGSN-MF 0903AGSN-MM E19 E20 SEXT 0903AGSN-MF 0903AGSN-MM 0903AGSN-MR SEEW 0903AGTN Parts Specification Screw Insert wrench 025 063 FTKA0307 TW09S Milling 0 Available inserts E19, E20 226
