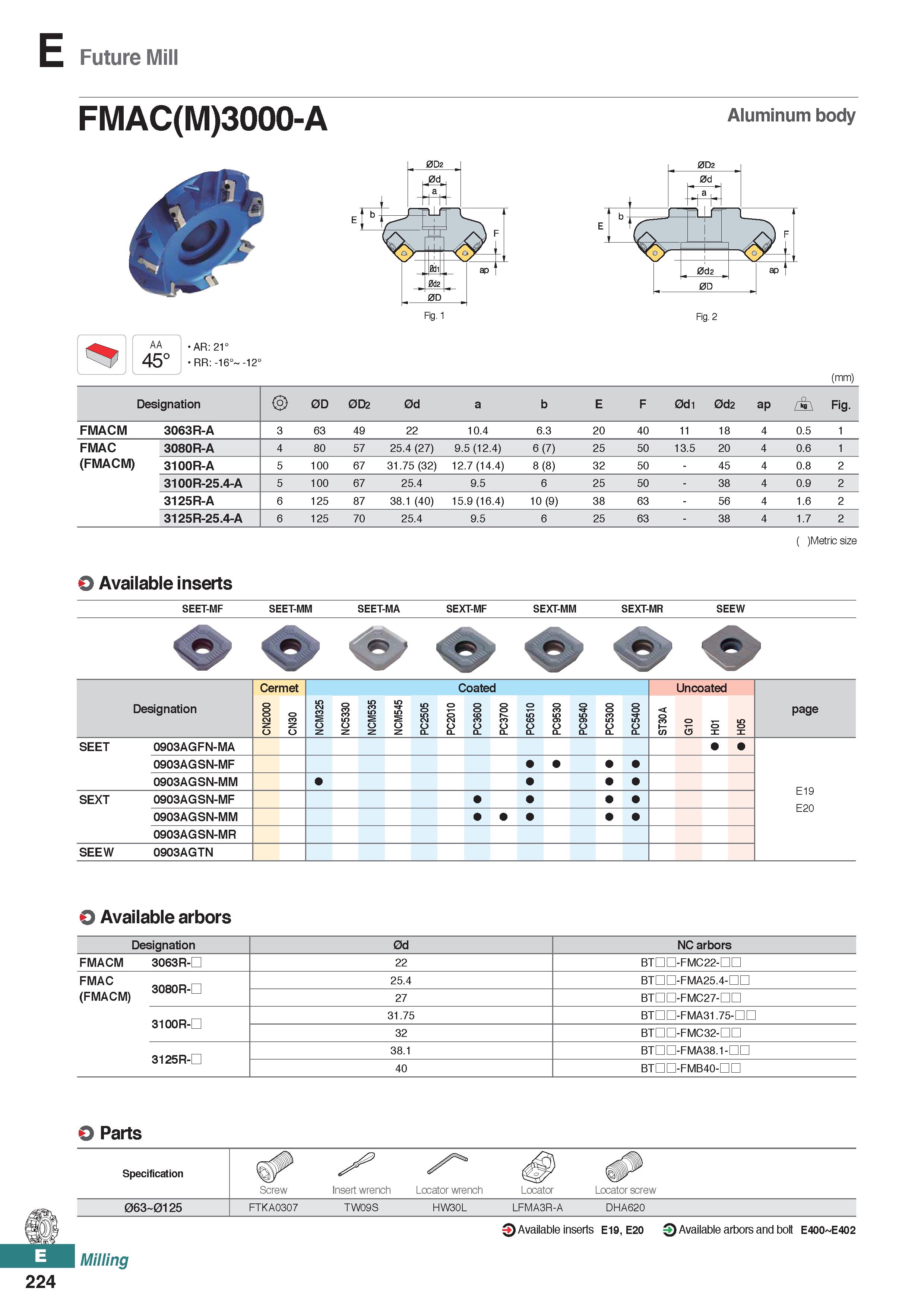

Future Mill FMAC(M)3000-A Aluminum body AA 45° AR: 21° RR: -16° -12° Fig. 2 (mm) Designation 0D 0D2 0d a b E F 0d1 0d2 ap / T\ Fig. FMACM 3063R-A 3 63 49 22 10.4 6.3 20 40 11 18 4 0.5 1 FMAC 3080R-A 4 80 57 25.4 (27) 9.5 (12.4) 6 (7) 25 50 13.5 20 4 0.6 1 (FMACM) 3100R-A 5 100 67 31.75 (32) 12.7 (14.4) 8 (8) 32 50 - 45 4 0.8 2 3100R-25.4-A 5 100 67 25.4 9.5 6 25 50 - 38 4 0.9 2 3125R-A 6 125 87 38.1 (40) 15.9 (16.4) 10 (9) 38 63 - 56 4 1.6 2 3125R-25.4-A 6 125 70 25.4 9.5 6 25 63 - 38 4 1.7 2 ( )Metric size O Available inserts SEET-MF SEET-MM SEET-MA SEXT-MF SEXT-MM SEXT-MR SEEW Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 A 0 3 0 1 5 T 1 0 0 01 (9 X X SEET 0903AGFN-MA 0903AGSN-MF 0903AGSN-MM E19 E20 SEXT 0903AGSN-MF 0903AGSN-MM 0903AGSN-MR SEEW 0903AGTN Available arbors Designation 0d NC arbors FMACM 3063R-D 22 BTDD-FMC22-nn FMAC 3080R-D 25.4 BTDD-FMA25.4-nn (FMACM) 27 BTDD-FMC27-nn 3100R-D 31.75 BTDD-FMA31.75-nn 32 BTDD-FMC32-nn 3125R-D 38.1 BTDD-FMA38.1-nn 40 BTDD-FMB40-nn O Parts Specification Screw Insert wrench Locator wrench Locator Locator screw 063 0125 FTKA0307 TW09S HW30L LFMA3R-A DHA620 Milling 224 Q Available inserts E19, E20 Q Available arbors and bolt E400 E402
