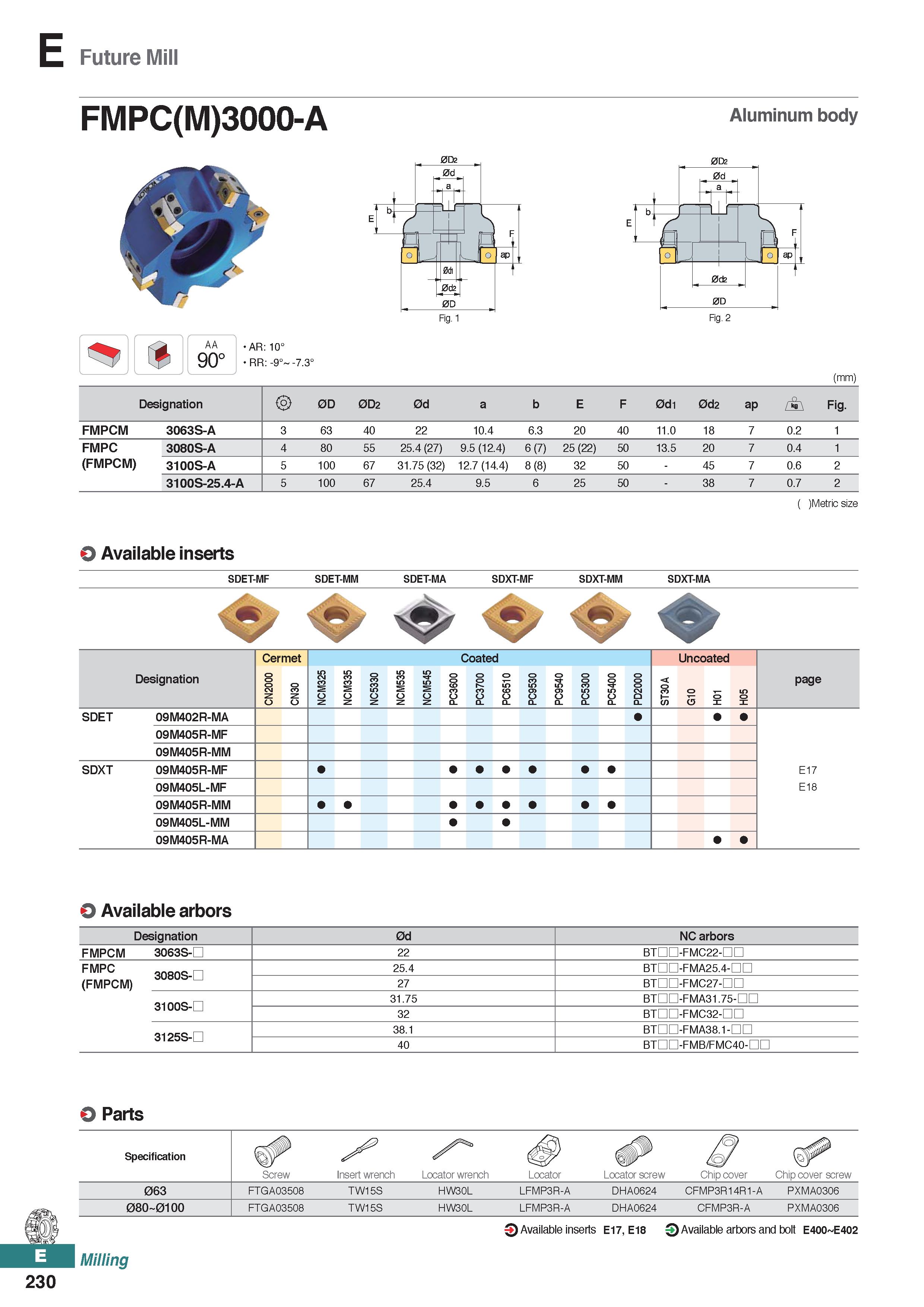

Future Mill FMPC(M)3000-A AA 90° AR: 10° RR: -9° -7.3° Aluminum body 0D2 (mm) Designation 2> 0D 0D2 0d a b E F 0d1 0d2 ap / T\ Fig. FMPCM 3063S-A 3 63 40 22 10.4 6.3 20 40 11.0 18 7 0.2 1 FMPC 3080S-A 4 80 55 25.4 (27) 9.5 (12.4) 6 (7) 25 (22) 50 13.5 20 7 0.4 1 (FMPCM) 3100S-A 5 100 67 31.75 (32) 12.7 (14.4) 8 (8) 32 50 - 45 7 0.6 2 3100S-25.4-A 5 100 67 25.4 9.5 6 25 50 - 38 7 0.7 2 ( )Metric size O Available inserts SDET-MF SDET-MM SDET-MA SDXT-MF SDXT-MM SDXT-MA Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NCM335 NC5330 NCM535 NCM545 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 PD2000 ST30A G10 H01 5 0 H SDET 09M402R-MA 09M405R-MF 09M405R-MM SDXT 09M405R-MF E17 09M405L-MF E18 09M405R-MM 09M405L-MM 09M405R-MA O Available arbors Designation 0d NC arbors FMPCM 3063S-D 22 BTHD-FMC22-DD FMPC 3080S-D 25.4 BTHD-FMA25.4-DD (FMPCM) 27 BTHD-FMC27-DD 3100S-D 31.75 BTHD-FMA31.75-HD 32 BTHD-FMC32-DD 3125S-D 38.1 BTHD-FMA38.1-DD 40 BTDD-FMB/FMC40-nn O Parts Specification Screw Insert wrench Locator wrench Locator Locator screw Chip cover t 1 Chip cover screw 063 FTGA03508 TW15S HW30L LFMP3R-A DHA0624 CFMP3R14R1-A PXMA0306 08O 01OO FTGA03508 TW15S HW30L LFMP3R-A DHA0624 CFMP3R-A PXMA0306 Milling 230 Q Available inserts E17, E18 O Available arbors and bolt E400 E402
