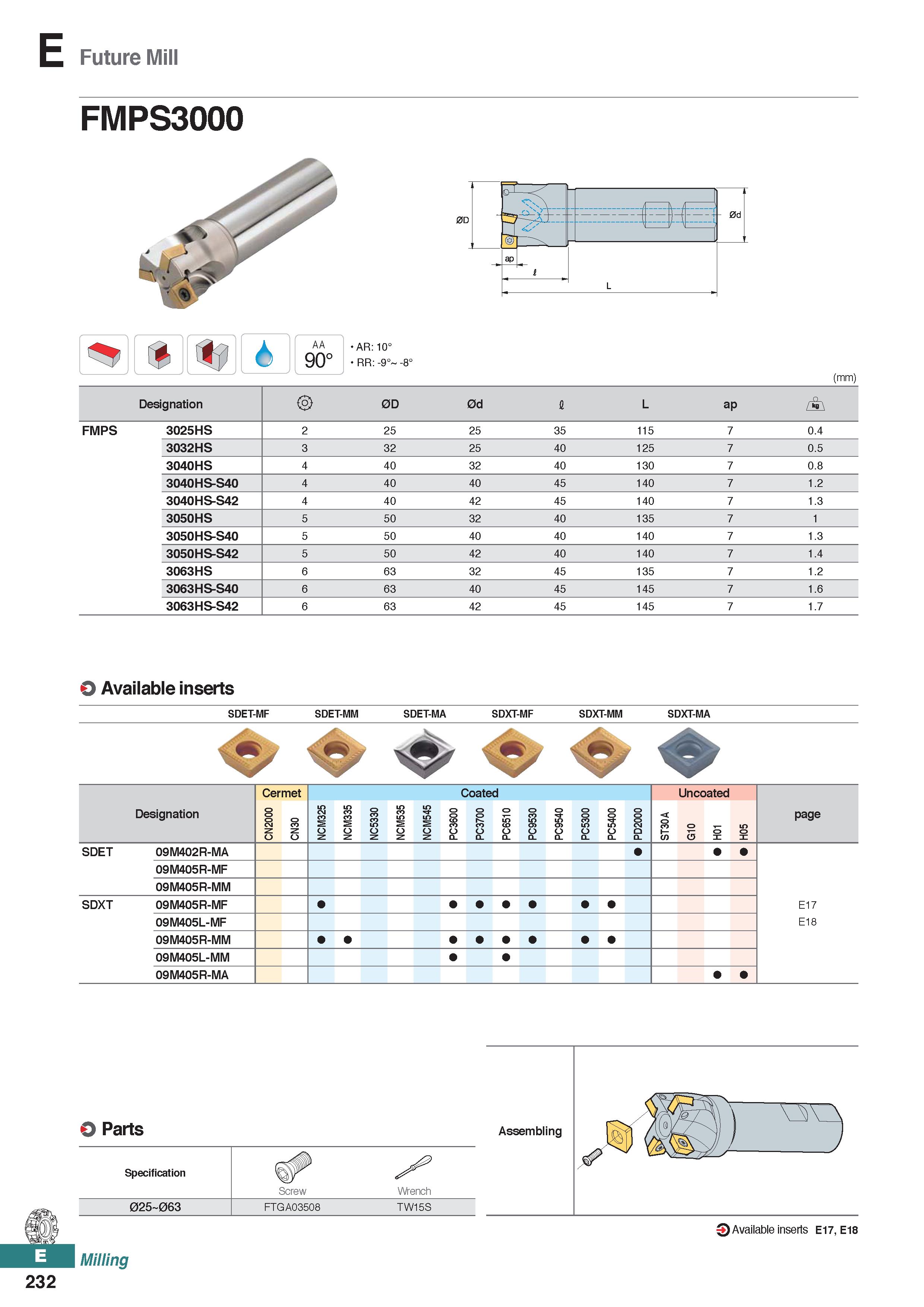

Future Mill FMPS3000 AA 90° AR: 10° RR: -9°- (mm) Designation 2> 0D 0d I L ap / \ FMPS 3025HS 2 25 25 35 115 7 0.4 3032HS 3 32 25 40 125 7 0.5 3040HS 4 40 32 40 130 7 0.8 3040HS-S40 4 40 40 45 140 7 1.2 3040HS-S42 4 40 42 45 140 7 1.3 3050HS 5 50 32 40 135 7 1 3050HS-S40 5 50 40 40 140 7 1.3 3050HS-S42 5 50 42 40 140 7 1.4 3063HS 6 63 32 45 135 7 1.2 3063HS-S40 6 63 40 45 145 7 1.6 3063HS-S42 6 63 42 45 145 7 1.7 O Available inserts SDET-MF SDET-MM SDET-MA SDXT-MF SDXT-MM SDXT-MA Designation Cermet Coated Uncoated page 0 0 CO z z 5 2 3 s C N 5 3 3 M C N 05 330 M535 5M CC z z 5 4 5 M C N 0 0 6 3 C CL O 1 75 36 CC Q- Q- 00 34 55 99 CC CL Q 00 00 34 55 CC CL Q 0 0 0 2 D CL A o 3 T S 01 5 0 H SDET 09M402R-MA 09M405R-MF 09M405R-MM SDXT 09M405R-MF E17 09M405L-MF E18 09M405R-MM 09M405L-MM 09M405R-MA O Parts Specification Screw Wrench 025 063 FTGA03508 TW15S Milling 232
