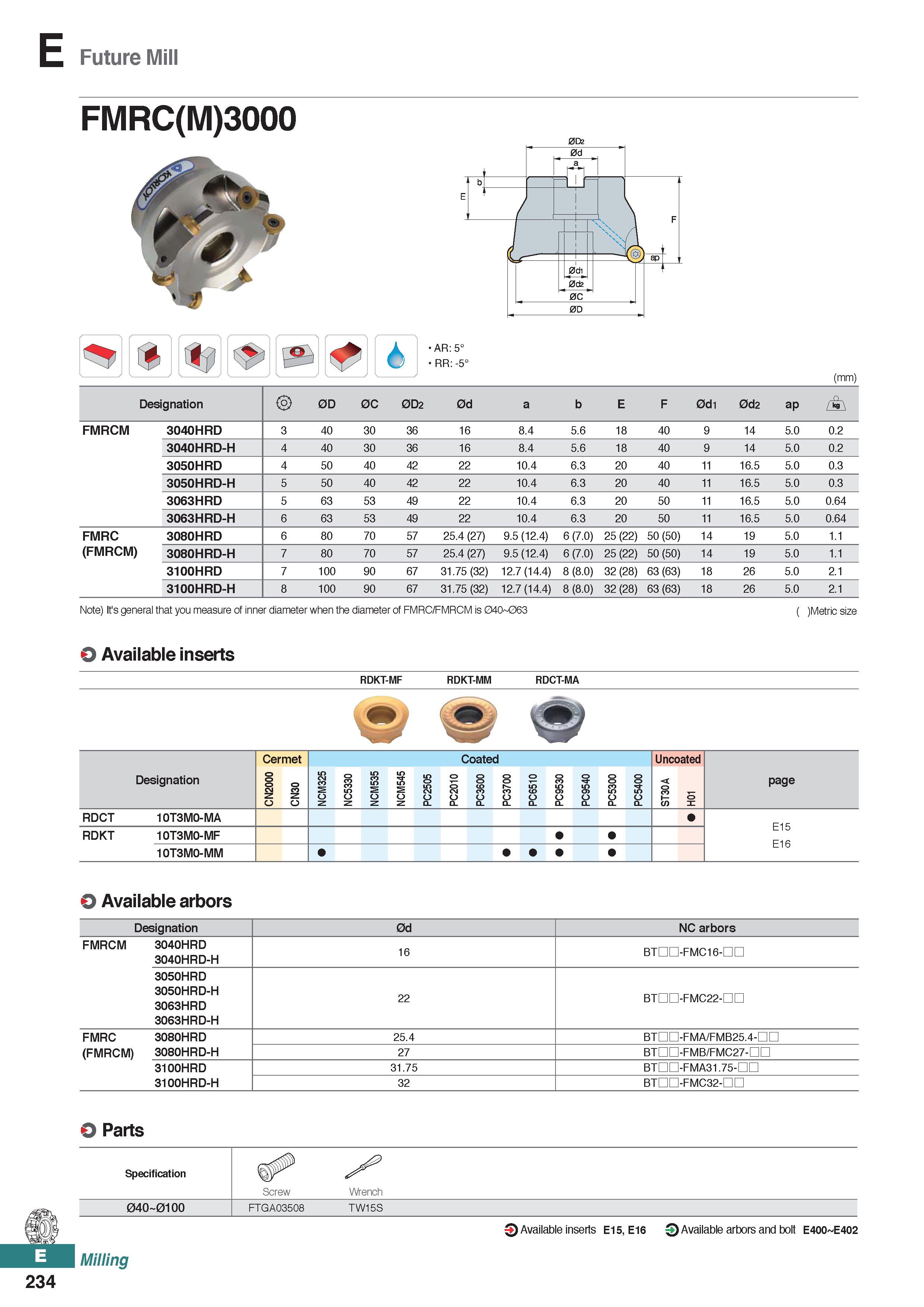

Future Mill FMRC(M)3000 AR:5° RR: -5° (mm) Designation 0D 0C 0D2 0d a b E F 0d1 0d2 ap FMRCM 3040HRD 3 40 30 36 16 8.4 5.6 18 40 9 14 5.0 0.2 3040HRD-H 4 40 30 36 16 8.4 5.6 18 40 9 14 5.0 0.2 3050HRD 4 50 40 42 22 10.4 6.3 20 40 11 16.5 5.0 0.3 3050HRD-H 5 50 40 42 22 10.4 6.3 20 40 11 16.5 5.0 0.3 3063HRD 5 63 53 49 22 10.4 6.3 20 50 11 16.5 5.0 0.64 3063HRD-H 6 63 53 49 22 10.4 6.3 20 50 11 16.5 5.0 0.64 FMRC 3080HRD 6 80 70 57 25.4 (27) 9.5 (12.4) 6 (7.0) 2) (2 5 2 0) (5 0 5 14 19 5.0 1.1 (FMRCM) 3080HRD-H 7 80 70 57 25.4 (27) 9.5 (12.4) 6 (7.0) 25 (22) 0) (5 0 5 14 19 5.0 1.1 3100HRD 7 100 90 67 31.75 (32) 12.7 (14.4) 8 (8.0) 8) (2 2 3 3) (6 3 6 18 26 5.0 2.1 3100HRD-H 8 100 90 67 31.75 (32) 12.7 (14.4) 8 (8.0) 32 (28) 3) (6 3 6 18 26 5.0 2.1 Note) It's general that you measure of inner diameter when the diameter of FMRC/FMRCM is 040 063 ( )Metric size O Available inserts RDKT-MF RDKT-MM RDCT-MA Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A 01 page RDCT 10T3M0-MA E15 E16 RDKT 10T3M0-MF 10T3M0-MM O Available arbors Designation 0d NC arbors FMRCM 3040HRD 3040HRD-H 16 BTDD-FMC16-DC 3050HRD 3050HRD-H 3063HRD 3063HRD-H 22 BTDD-FMC22-DC FMRC 3080HRD (FMRCM) 3080HRD-H 25.4 BTDD-FMA/FMB25.4-nn 27 BTDD-FMB/FMC27-nn 3100HRD 3100HRD-H 31.75 BTHD-FMA31.75-HD 32 BTHD-FMC32-DD O Parts Specification Screw Wrench 04O 01OO FTGA03508 TW15S Milling Q Available inserts E15, E16 O Available arbors and bolt E400 E402 234
