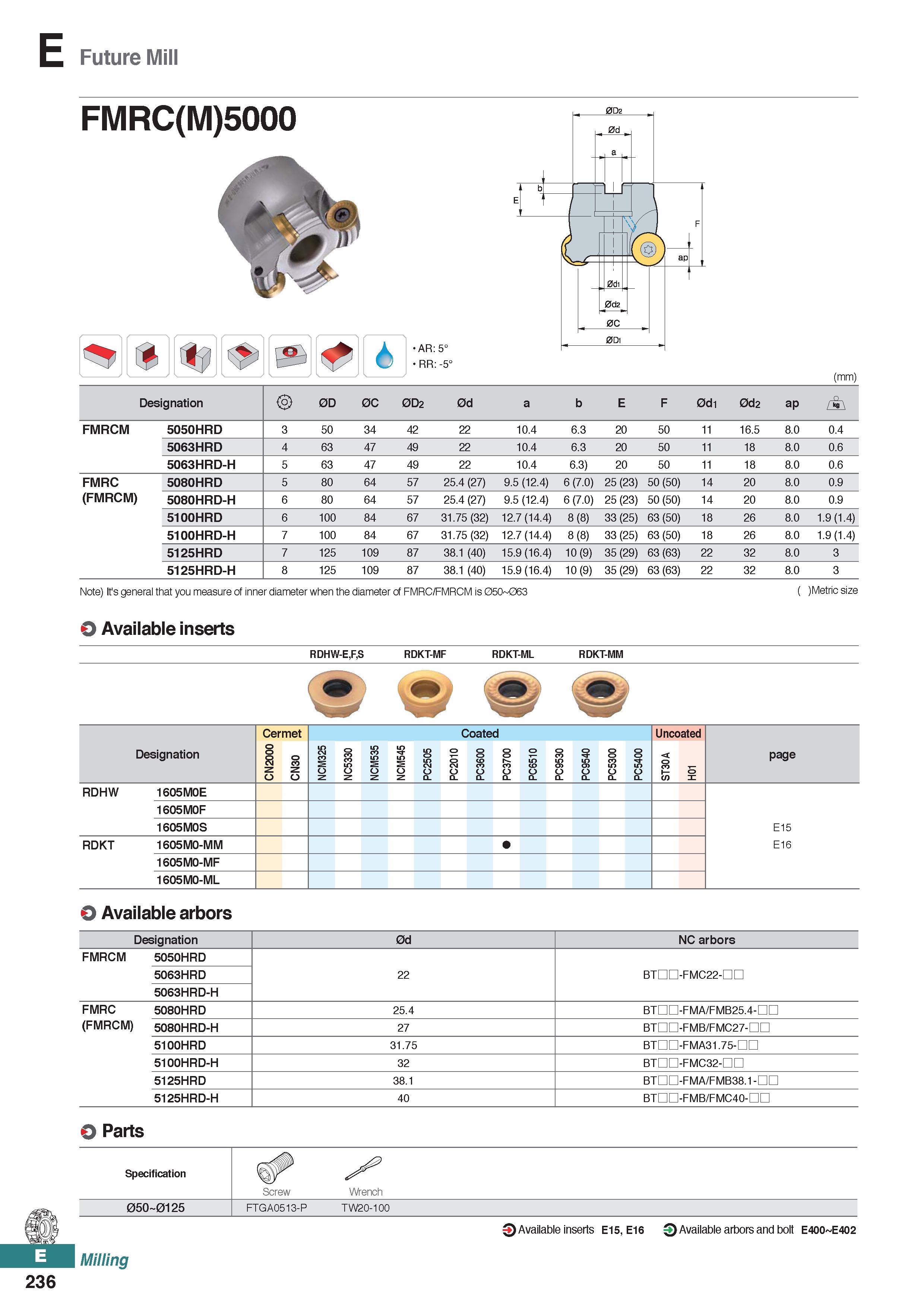

Future Mill FMRC(M)5000 AR:5° RR: -5° (mm) Designation 0D 0C 0D2 0d a b E F 0d1 0d2 ap FMRCM 5050HRD 3 50 34 42 22 10.4 6.3 20 50 11 16.5 8.0 0.4 5063HRD 4 63 47 49 22 10.4 6.3 20 50 11 18 8.0 0.6 5063HRD-H 5 63 47 49 22 10.4 6.3) 20 50 11 18 8.0 0.6 FMRC 5080HRD 5 80 64 57 25.4 (27) 9.5 (12.4) 6 (7.0) 25 (23) 50 (50) 14 20 8.0 0.9 (FMRCM) 5080HRD-H 6 80 64 57 25.4 (27) 9.5 (12.4) 6 (7.0) 25 (23) 50 (50) 14 20 8.0 0.9 5100HRD 6 100 84 67 31.75 (32) 12.7 (14.4) 8 (8) 33 (25) 63 (50) 18 26 8.0 1.9 (1.4) 5100HRD-H 7 100 84 67 31.75 (32) 12.7 (14.4) 8 (8) 33 (25) 63 (50) 18 26 8.0 1.9 (1.4) 5125HRD 7 125 109 87 38.1 (40) 15.9 (16.4) 10 (9) 35 (29) 63 (63) 22 32 8.0 3 5125HRD-H 8 125 109 87 38.1 (40) 15.9 (16.4) 10 (9) 35 (29) 63 (63) 22 32 8.0 3 Note) It's general that you measure of inner diameter when the diameter of FMRC/FMRCM is 050 063 ( )Metric size O Available inserts RDHW-E,F,S RDKT-MF RDKT-ML RDKT-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A H01 RDHW 1605M0E 1605M0F 1605M0S E15 RDKT 1605M0-MM E16 1605M0-MF 1605M0-ML O Available arbors Designation 0d NC arbors FMRCM 5050HRD 5063HRD 5063HRD-H 22 BTDD-FMC22-DC FMRC 5080HRD 25.4 BTDD-FMA/FMB25.4-nn (FMRCM) 5080HRD-H 27 BTDD-FMB/FMC27-nn 5100HRD 31.75 BTHD-FMA31.75-HD 5100HRD-H 32 BTHD-FMC32-DD 5125HRD 38.1 BTHD-FMA/FMB38.1-HD 5125HRD-H 40 BTDD-FMB/FMC40-nn Parts Specification Screw Wrench 05O 0125 FTGA0513-P TW20-100 Milling Q Available inserts E15, E16 Q Available arbors and bolt E400 E402 236
