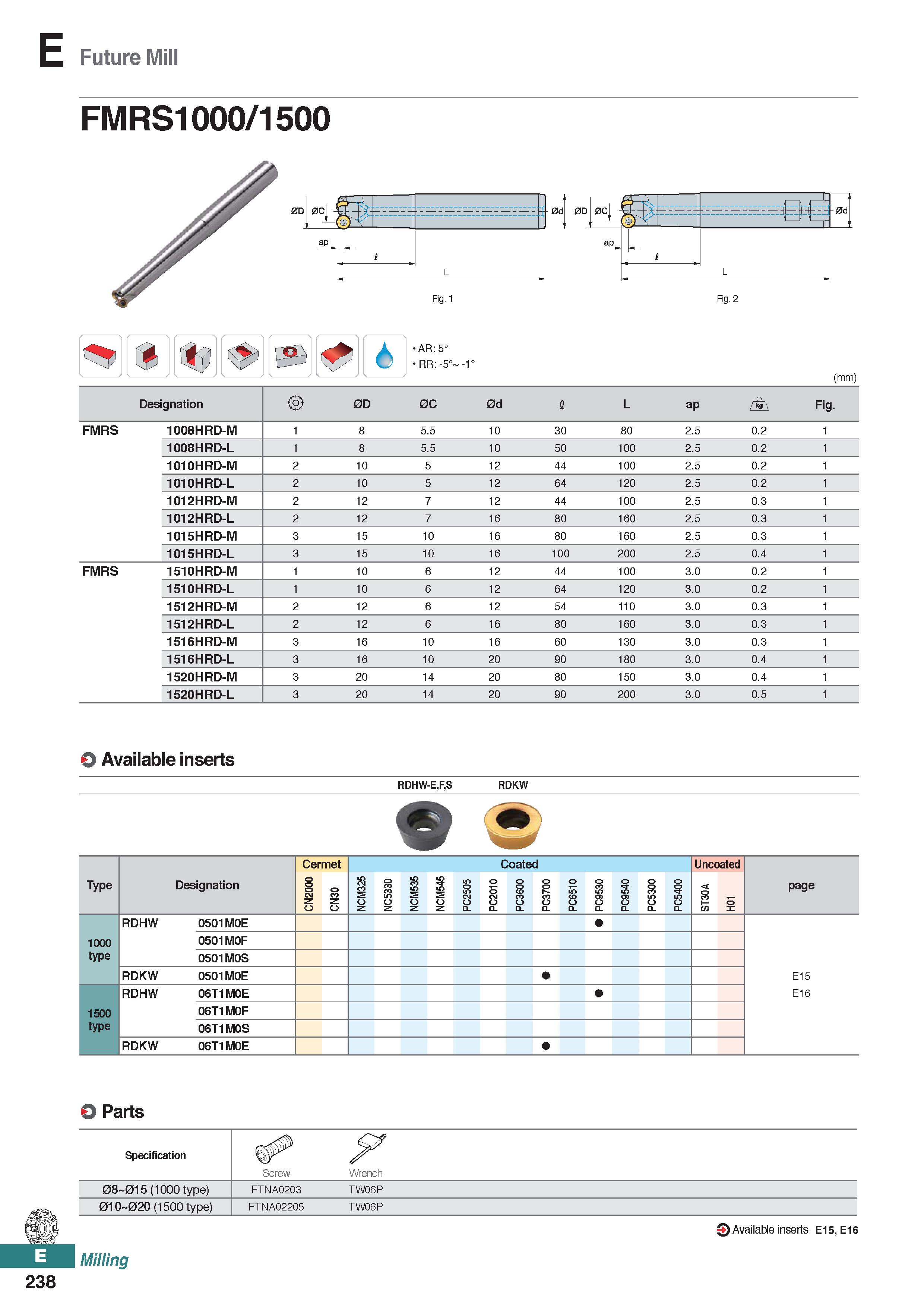

Future Mill AR:5° RR:-5° -1° (mm) Designation 2> 0D 0C 0d I L ap /i\ Fig. FMRS 1008HRD-M 1 8 5.5 10 30 80 2.5 0.2 1 1008HRD-L 1 8 5.5 10 50 100 2.5 0.2 1 1010HRD-M 2 10 5 12 44 100 2.5 0.2 1 1010HRD-L 2 10 5 12 64 120 2.5 0.2 1 1012HRD-M 2 12 7 12 44 100 2.5 0.3 1 1012HRD-L 2 12 7 16 80 160 2.5 0.3 1 1015HRD-M 3 15 10 16 80 160 2.5 0.3 1 1015HRD-L 3 15 10 16 100 200 2.5 0.4 1 FMRS 1510HRD-M 1 10 6 12 44 100 3.0 0.2 1 1510HRD-L 1 10 6 12 64 120 3.0 0.2 1 1512HRD-M 2 12 6 12 54 110 3.0 0.3 1 1512HRD-L 2 12 6 16 80 160 3.0 0.3 1 1516HRD-M 3 16 10 16 60 130 3.0 0.3 1 1516HRD-L 3 16 10 20 90 180 3.0 0.4 1 1520HRD-M 3 20 14 20 80 150 3.0 0.4 1 1520HRD-L 3 20 14 20 90 200 3.0 0.5 1 O Available inserts RDHW-E,F,S RDKW Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 5 3 5 M C z 5 4 5 M C N m o 5 2 C CL 00000000 1 OOl CO OO 06755534 23369955 CCCCCCCC CLCLCLCLCLCLCLCL 0 31 T0 tn m page RDHW 0501M0E 1000 0501M0F type 0501M0S RDKW 0501M0E E15 RDHW 06T1M0E E16 1500 06T1M0F type 06T1M0S RDKW 06T1M0E 238 Parts Specification y Screw Wrench 08 015 (1000 type) FTNA0203 TW06P 01O 02O (1500 type) FTNA02205 TW06P Milling O Available inserts E15, E16
