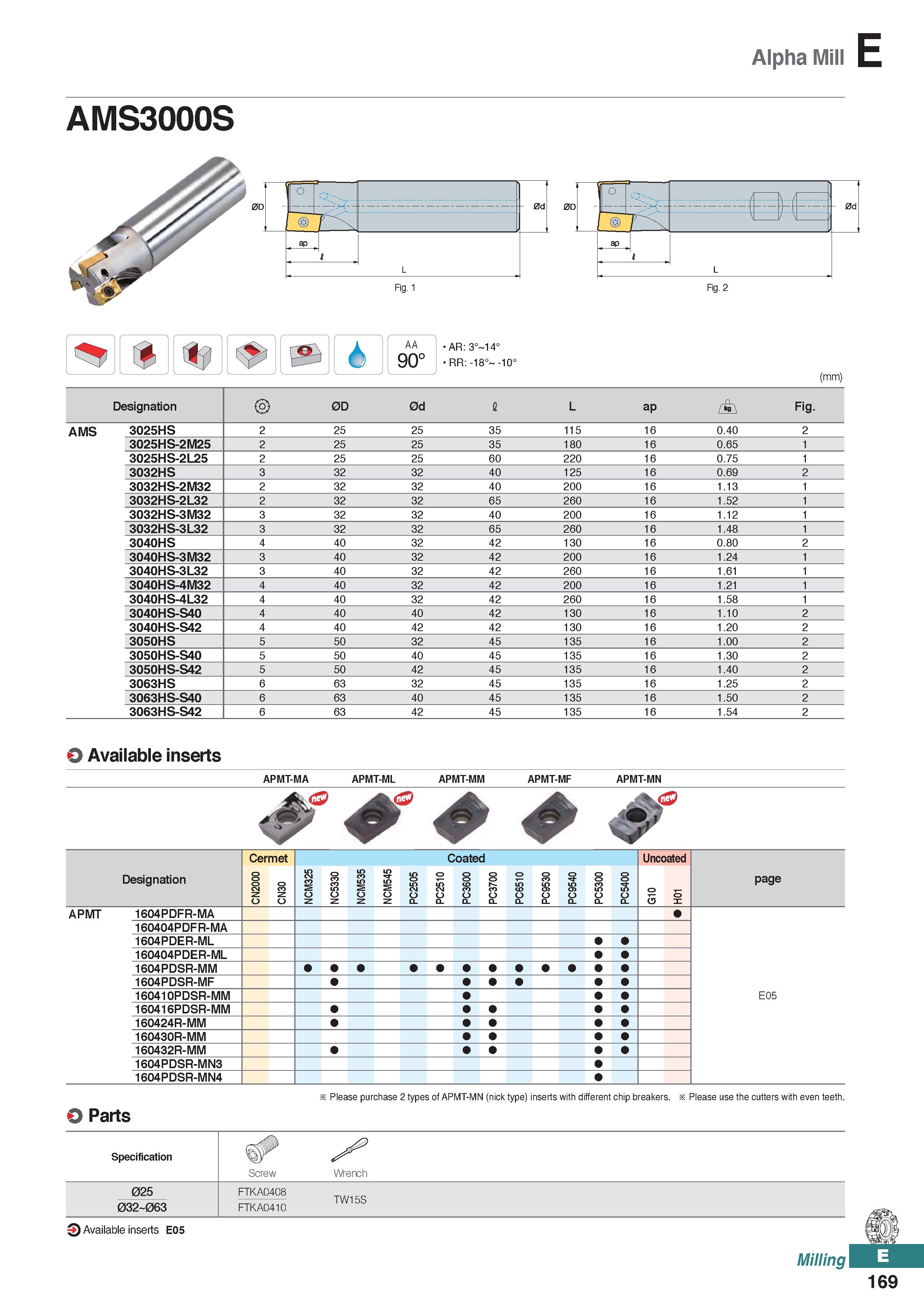

627 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.E169

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. E169 0627 Lab2u

Alpha Mill E AMS3000S 0d AA 90° AR: 3° 14° RR: -18° -10° (mm) Designation 0D 0d 1 L ap / \ Fig. AMS 3025HS 2 25 25 35 115 16 0.40 2 3025HS-2M25 2 25 25 35 180 16 0.65 1 3025HS-2L25 2 25 25 60 220 16 0.75 1 3032HS 3 32 32 40 125 16 0.69 3032HS-2M32 2 32 32 40 200 16 1.13 1 3032HS-2L32 2 32 32 65 260 16 1.52 1 3032HS-3M32 3 32 32 40 200 16 1.12 1 3032HS-3L32 3 32 32 65 260 16 1.48 1 3040HS 4 40 32 42 130 16 0.80 3040HS-3M32 3 40 32 42 200 16 1.24 1 3040HS-3L32 3 40 32 42 260 16 1.61 1 3040HS-4M32 4 40 32 42 200 16 1.21 1 3040HS-4L32 4 40 32 42 260 16 1.58 1 3040HS-S40 4 40 40 42 130 16 1.10 2 3040HS-S42 4 40 42 42 130 16 1.20 2 3050HS 5 50 32 45 135 16 1.00 2 3050HS-S40 5 50 40 45 135 16 1.30 2 3050HS-S42 5 50 42 45 135 16 1.40 2 3063HS 6 63 32 45 135 16 1.25 2 3063HS-S40 6 63 40 45 135 16 1.50 2 3063HS-S42 6 63 42 45 135 16 1.54 2 O Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 55 34 55 MM CC z z PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 O i 10 O I APMT 1604PDFR-MA 160404PDFR-MA 1604PDER-ML 160404PDER-ML 1604PDSR-MM 1604PDSR-MF 160410PDSR-MM E05 160416PDSR-MM 160424R-MM 160430R-MM 160432R-MM 1604PDSR-MN3 1604PDSR-MN4 O Parts Please purchase 2 types of APMT-MN (nick type) inserts with different chip breakers. Please use the cutters with even teeth. Specification S Screw Wrench 025 FTKA0408 TW15S 032 063 FTKA0410 0 Available inserts E05 Milling 169
