629 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.E171

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. E171 0629 Lab2u

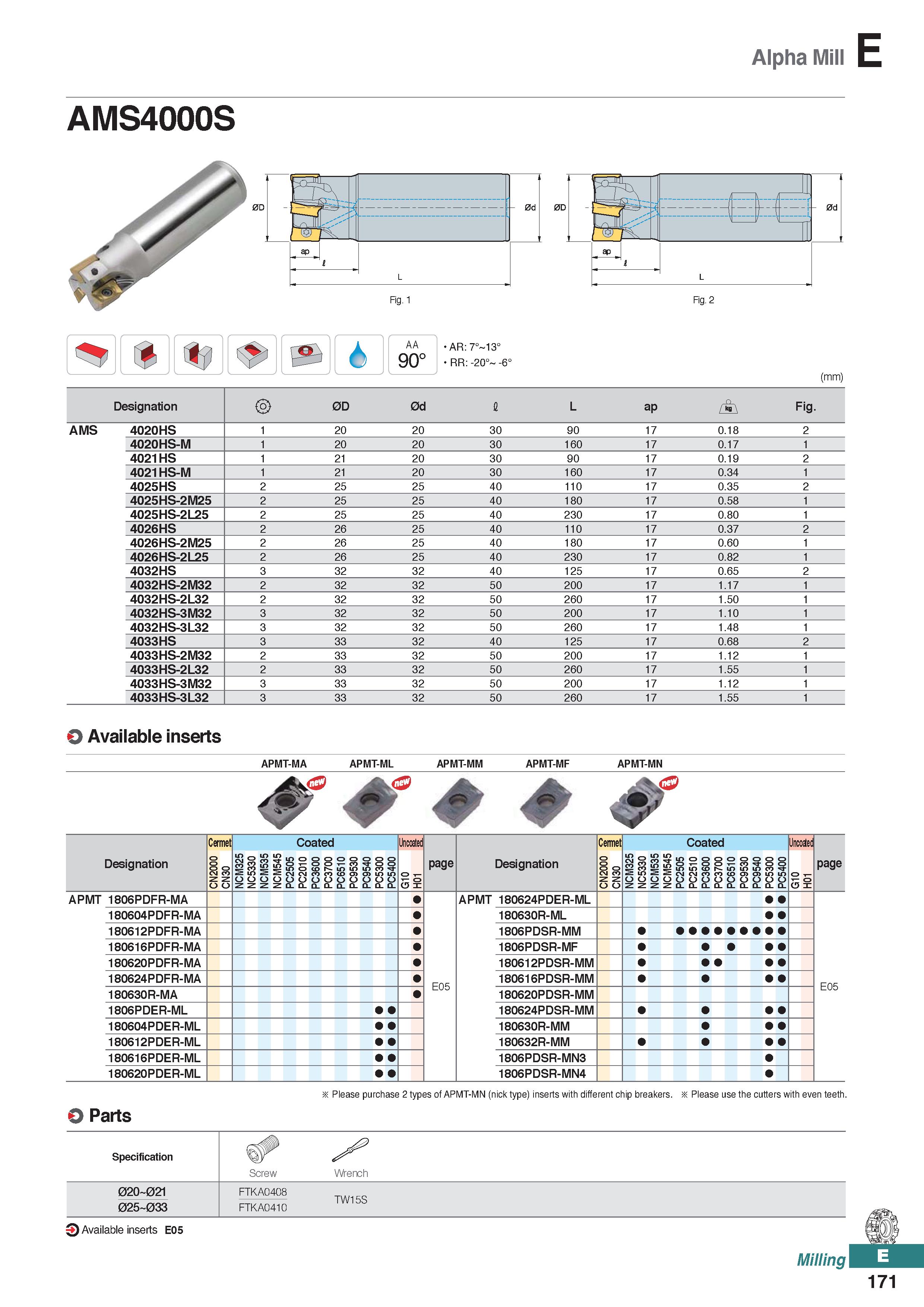

Alpha Mill E AMS4000S AA 90° AR:7° 13° RR: -20° -6° (mm) Designation 0D 0d 1 L ap i3t Fig. AMS 4020HS 1 20 20 30 90 17 0.18 2 4020HS-M 1 20 20 30 160 17 0.17 1 4021HS 1 21 20 30 90 17 0.19 4021HS-M 1 21 20 30 160 17 0.34 1 4025HS 2 25 25 40 110 17 0.35 4025HS-2M25 2 25 25 40 180 17 0.58 1 4025HS-2L25 2 25 25 40 230 17 0.80 1 4026HS 2 26 25 40 110 17 0.37 4026HS-2M25 2 26 25 40 180 17 0.60 1 4026HS-2L25 2 26 25 40 230 17 0.82 1 4032HS 3 32 32 40 125 17 0.65 4032HS-2M32 2 32 32 50 200 17 1.17 1 4032HS-2L32 2 32 32 50 260 17 1.50 1 4032HS-3M32 3 32 32 50 200 17 1.10 1 4032HS-3L32 3 32 32 50 260 17 1.48 1 4033HS 3 33 32 40 125 17 0.68 4033HS-2M32 2 33 32 50 200 17 1.12 1 4033HS-2L32 2 33 32 50 260 17 1.55 1 4033HS-3M32 3 33 32 50 200 17 1.12 1 4033HS-3L32 3 33 32 50 260 17 1.55 1 O Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN Cermet Coated Uncoaled Cermet Coated Uncoaled Designation 0 0 CM CO N 5 gs S in NC z z NCM535 NCM545 PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 o 5 S page Designation 0 0 CM CO N 5 gs S ID NC z z NCM535 NCM545 mo O im in CM CM CC CL CL. PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 O -i 5 x page APMT 1806PDFR-MA APMT 180624PDER-ML 180604PDFR-MA 180630R-ML 180612PDFR-MA 1806PDSR-MM 180616PDFR-MA 1806PDSR-MF 180620PDFR-MA 180612PDSR-MM 180624PDFR-MA E05 180616PDSR-MM E05 180630R-MA 180620PDSR-MM 1806PDER-ML 180624PDSR-MM 180604PDER-ML 180630R-MM 180612PDER-ML 180632R-MM 180616PDER-ML 1806PDSR-MN3 180620PDER-ML 1806PDSR-MN4 Please purchase 2 types of APMT-MN (nick type) inserts with different chip breakers. Please use the cutters with even teeth. O Parts Milling 171
