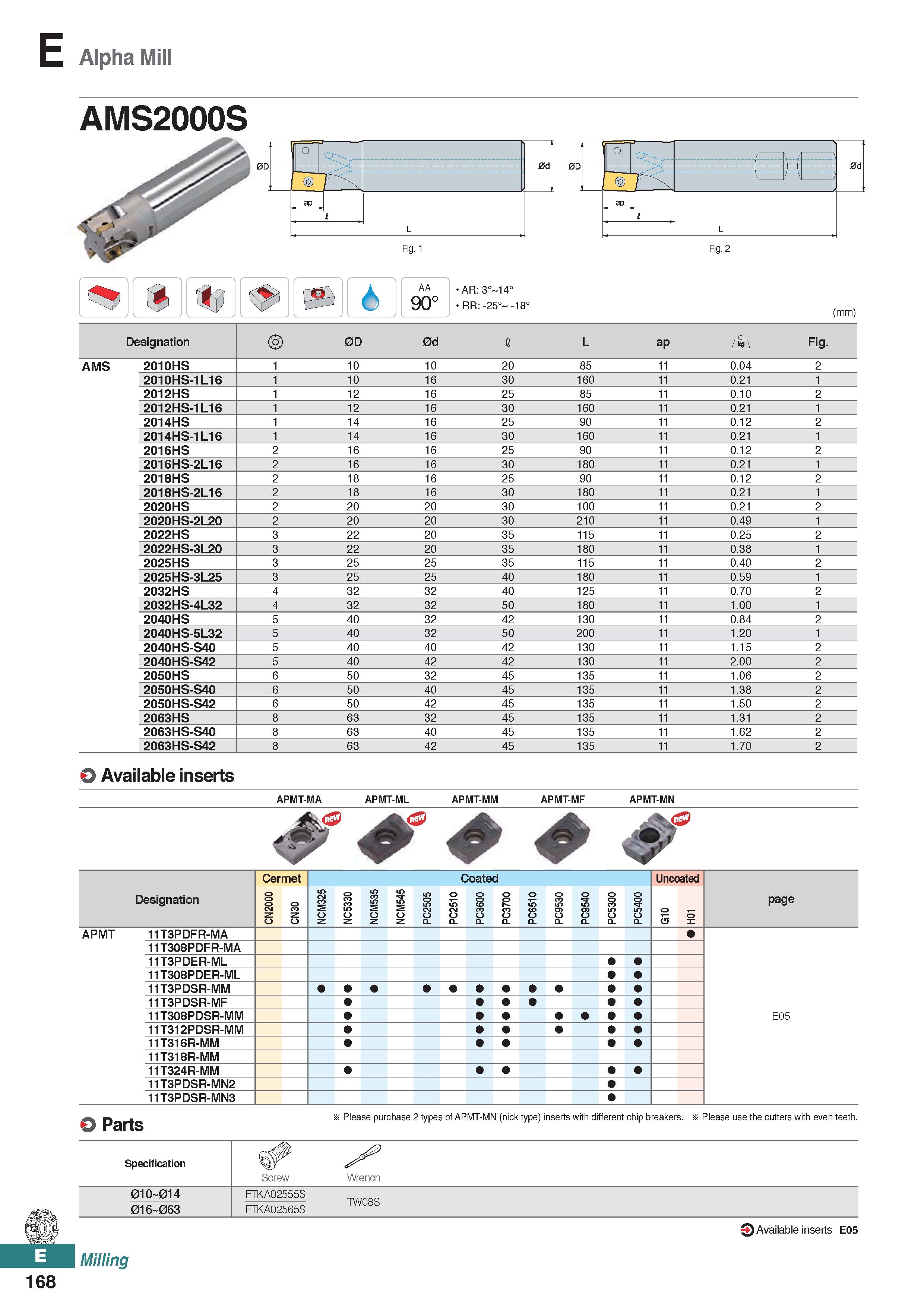

E Alpha Mill AMS2000S AA 90° AR:3° 14° RR:-25° -18° (mm) Designation 0D 0d 1 L ap / A Fig. AMS 2010HS 1 10 10 20 85 11 0.04 2 2010HS-1L16 1 10 16 30 160 11 0.21 1 2012HS 1 12 16 25 85 11 0.10 2 2012HS-1L16 1 12 16 30 160 11 0.21 1 2014HS 1 14 16 25 90 11 0.12 2 2014HS-1L16 1 14 16 30 160 11 0.21 1 2016HS 2 16 16 25 90 11 0.12 2 2016HS-2L16 2 16 16 30 180 11 0.21 1 2018HS 2 18 16 25 90 11 0.12 2 2018HS-2L16 2 18 16 30 180 11 0.21 1 2020HS 2 20 20 30 100 11 0.21 2 2020HS-2L20 2 20 20 30 210 11 0.49 1 2022HS 3 22 20 35 115 11 0.25 2 2022HS-3L20 3 22 20 35 180 11 0.38 1 2025HS 3 25 25 35 115 11 0.40 2 2025HS-3L25 3 25 25 40 180 11 0.59 1 2032HS 4 32 32 40 125 11 0.70 2 2032HS-4L32 4 32 32 50 180 11 1.00 1 2040HS 5 40 32 42 130 11 0.84 2 2040HS-5L32 5 40 32 50 200 11 1.20 1 2040HS-S40 5 40 40 42 130 11 1.15 2 2040HS-S42 5 40 42 42 130 11 2.00 2 2050HS 6 50 32 45 135 11 1.06 2 2050HS-S40 6 50 40 45 135 11 1.38 2 2050HS-S42 6 50 42 45 135 11 1.50 2 2063HS 8 63 32 45 135 11 1.31 2 2063HS-S40 8 63 40 45 135 11 1.62 2 2063HS-S42 8 63 42 45 135 11 1.70 2 O Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 G10 H01 APMT 11T3PDFR-MA 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM E05 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM 11T3PDSR-MN2 11T3PDSR-MN3 O Parts Please purchase 2 types of APMT-MN (nicktype) inserts with different chip breakers. Please use the cutters with even teeth. Specification s Screw Wrench 01O 014 NKA02555S TW08S 016 063 NKA02565S Availableinserts E05 Milling 168
