623 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.E165

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. E165 0623 Lab2u

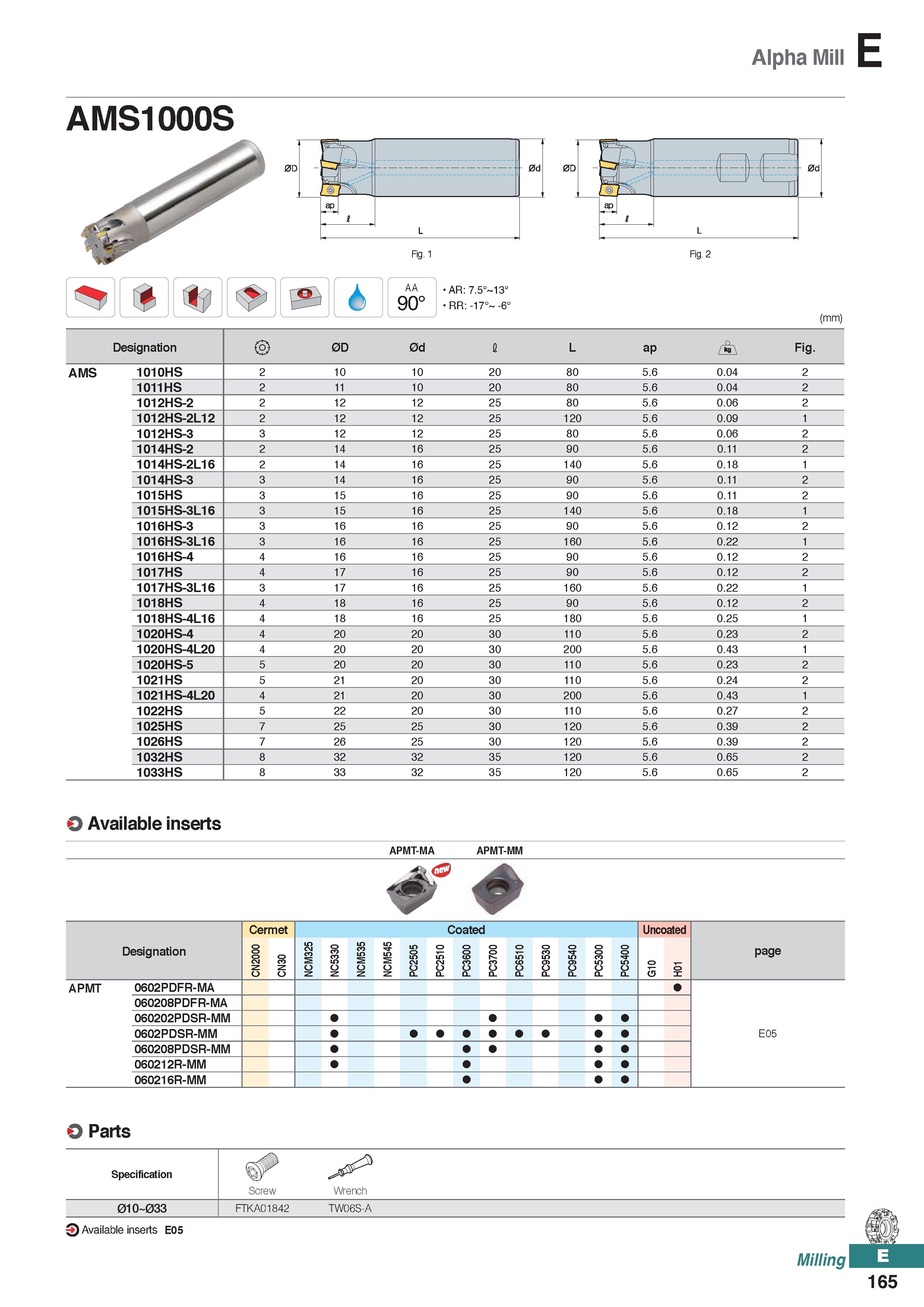

Alpha Mill E AMS1000S 6 AA 90° AR: 7.5° 13° RR: -17° -6° (mm) Designation 0D 0d 1 L ap Fig. AMS 1010HS 2 10 10 20 80 5.6 0.04 2 1011HS 2 11 10 20 80 5.6 0.04 2 1012HS-2 2 12 12 25 80 5.6 0.06 2 1012HS-2L12 2 12 12 25 1 20 5.6 0.09 1 1012HS-3 3 12 12 25 80 5.6 0.06 2 1014HS-2 2 14 16 25 90 5.6 0.11 2 1014HS-2L16 2 14 16 25 1 40 5.6 0.18 1 1014HS-3 3 14 16 25 90 5.6 0.11 2 1015HS 3 15 16 25 90 5.6 0.11 2 1015HS-3L16 3 15 16 25 1 40 5.6 0.18 1 1016HS-3 3 16 16 25 90 5.6 0.12 2 1016HS-3L16 3 16 16 25 1 60 5.6 0.22 1 1016HS-4 4 16 16 25 90 5.6 0.12 2 1017HS 4 17 16 25 90 5.6 0.12 2 1017HS-3L16 3 17 16 25 1 60 5.6 0.22 1 1018HS 4 18 16 25 90 5.6 0.12 2 1018HS-4L16 4 18 16 25 1 80 5.6 0.25 1 1020HS-4 4 20 20 30 110 5.6 0.23 2 1020HS-4L20 4 20 20 30 200 5.6 0.43 1 1020HS-5 5 20 20 30 110 5.6 0.23 2 1021HS 5 21 20 30 110 5.6 0.24 2 1021HS-4L20 4 21 20 30 200 5.6 0.43 1 1022HS 5 22 20 30 110 5.6 0.27 2 1025HS 7 25 25 30 1 20 5.6 0.39 2 1026HS 7 26 25 30 1 20 5.6 0.39 2 1032HS 8 32 32 35 1 20 5.6 0.65 2 1033HS 8 33 32 35 1 20 5.6 0.65 2 O Available inserts APMT-MA APMT-MM f Designation Cermet Coated Uncoated page 0 0 CO z z 5 2 3 s C z 0 3 CO in C z 55 CO 55 MM CC z z 5 0 5 2 C P 0 51 2 C P 6 3 C P 0 0 CO C P PC6510 PC9530 PC9540 PC5300 0 0 5 C CL o 5 01 APMT 0602PDFR-MA 060208PDFR-MA 060202PDSR-MM 0602PDSR-MM E05 060208PDSR-MM 060212R-MM 060216R-MM O Parts Specification Screw Wrench 01 O 033 FTKA01842 TW06S-A 9 Available inserts E05 Milling 165
