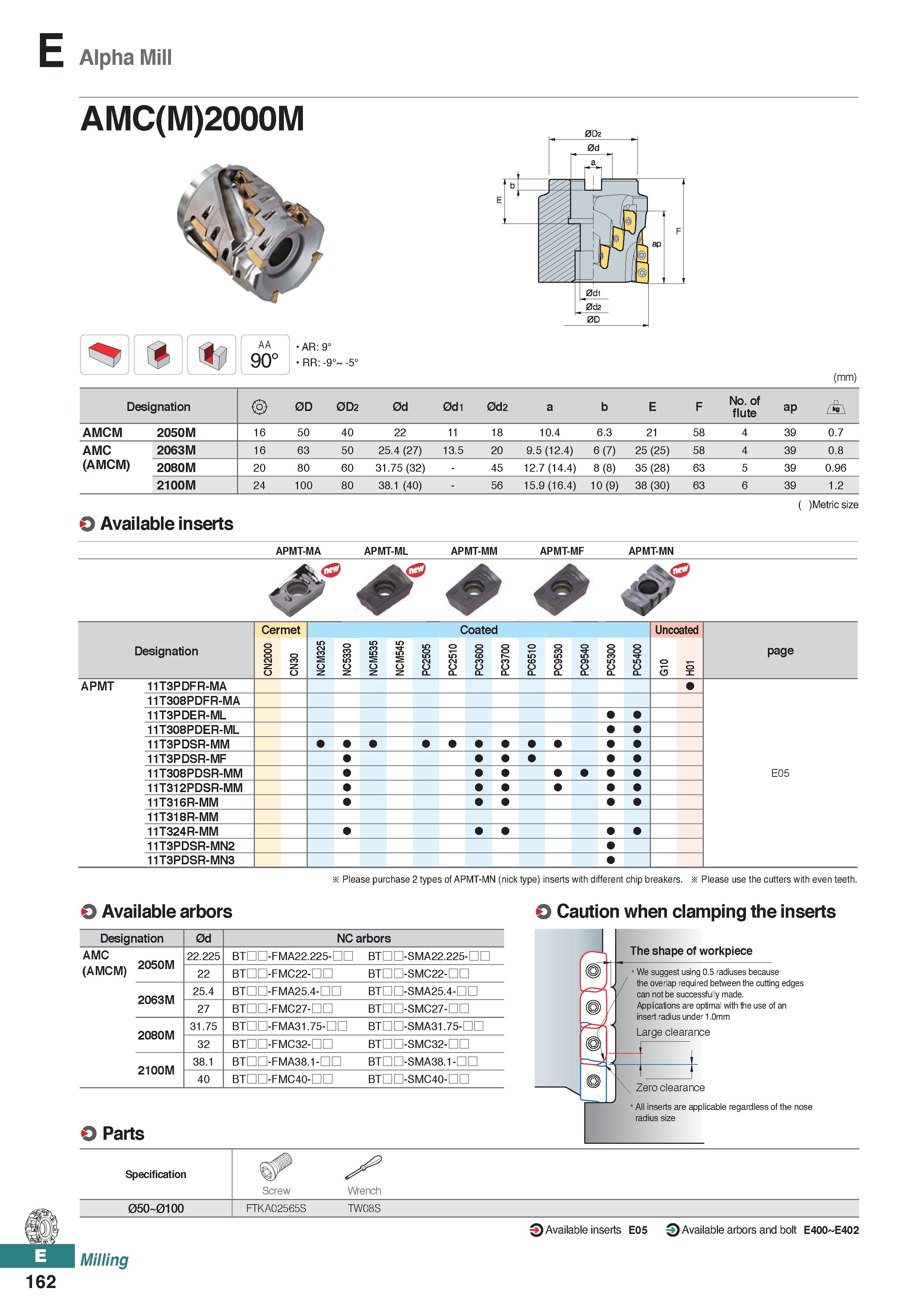

E Alpha Mill AMC(M)2000M AA 90° AR: 9° RR: -9° -5° (mm) Designation 0D 0D2 0d 0d1 0d2 a b E F No. of flute ap AMCM 2050M 16 50 40 22 11 18 10.4 6.3 21 58 4 39 0.7 AMC 2063M 16 63 50 25.4 (27) 13.5 20 9.5 (12.4) 6 (7) 25 (25) 58 4 39 0.8 (AMCM) 2080M 20 80 60 31.75 (32) - 45 12.7 (14.4) 8 (8) 35 (28) 63 5 39 0.96 2100M 24 100 80 38.1 (40) - 56 15.9 (16.4) 10 (9) 38 (30) 63 6 39 1.2 ( (Metricsize O Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 o G1 01 I APMT 11T3PDFR-MA 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM E05 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM 11T3PDSR-MN2 11T3PDSR-MN3 Please purchase 2 types of APMT-MN (nick type) inserts with different chip breakers. Please use the cutters with even teeth. O Available arbors O Caution when clamping the inserts Designation 0d NC arbors AMC 2050M 22.225 BTDD-FMA22.225-nn BTDD-SMA22.225-nn (AMCM) 22 BTHD-FMC22-DD BTDD-SMC22-nn 2063M 25.4 BTHD-FMA25.4-DD BTDD-SMA25.4-nn 27 BTHD-FMC27-DD BTDD-SMC27-nn 2080M 31.75 BTHD-FMA31.75-HD BTDD-SMA31.75-nn 32 BTHD-FMC32-DD BTDD-SMC32-nn 2100M 38.1 BTHD-FMA38.1-DD BTDD-SMA38.1-nn 40 BTHD-FMC40-DD BTDD-SMC40-nn O Parts The shape of workpiece We suggest using 0.5 radiuses because the overlap required between the cutting edges can not be successfully made. Applications are optimal with the use of an insert radius under 1.0mm Large clearance Zero clearance All inserts are applicable regardless of the nose radius size Specification Screw Wrench 05O 01OO NKA02565S TW08S Milling Availableinserts E05 0Availablearborsandbolt E400 E402 162
