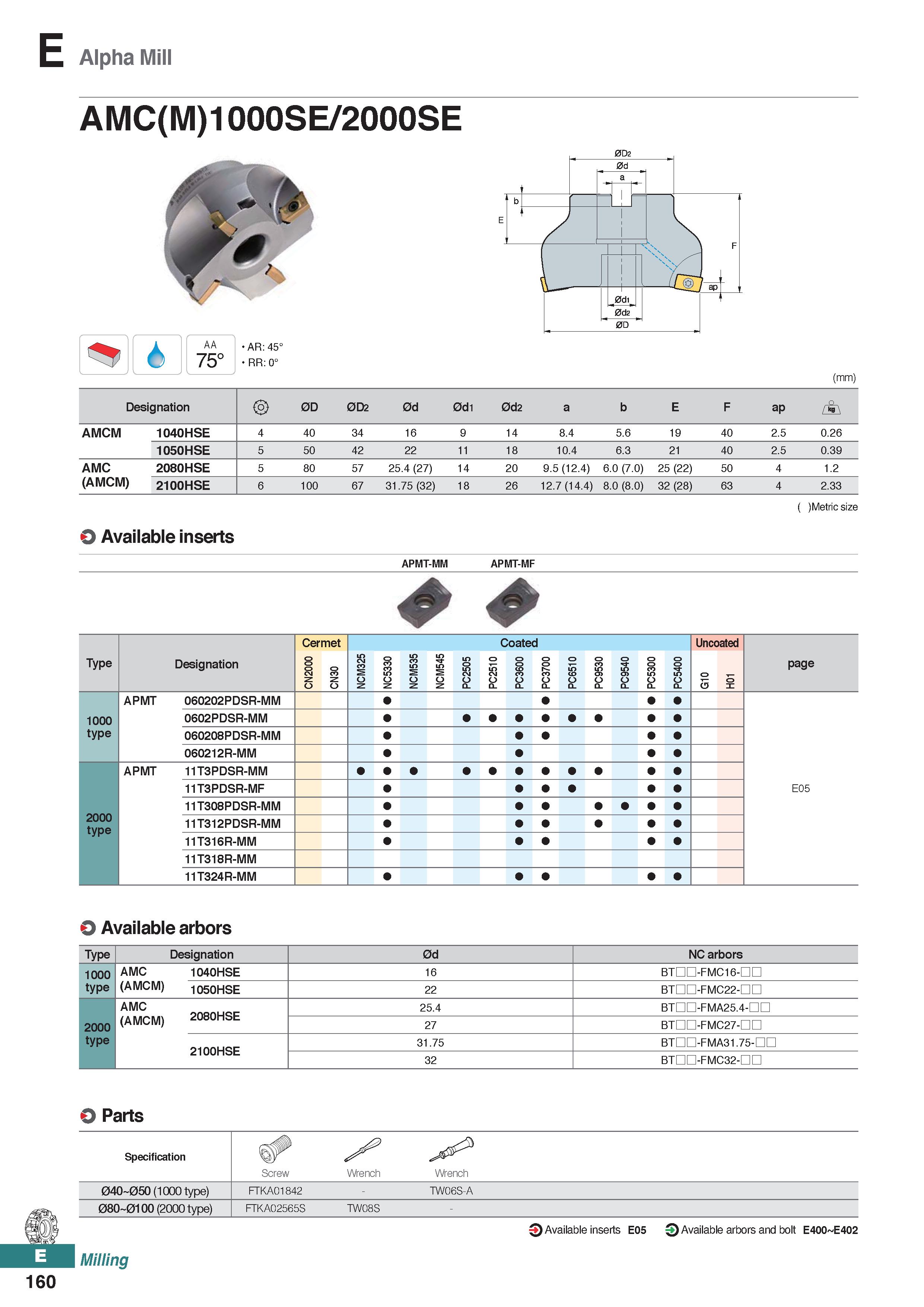

E Alpha Mill AMC(M)1000SE/2000SE AA 75° AR:45° RR: 0° (mm) Designation 0D 0D2 0d 0d1 0d2 a b E F ap AMCM 1040HSE 4 40 34 16 9 14 8.4 5.6 19 40 2.5 0.26 1050HSE 5 50 42 22 11 18 10.4 6.3 21 40 2.5 0.39 AMC 2080HSE 5 80 57 25.4 (27) 14 20 9.5 (12.4) 6.0 (7.0) 25 (22) 50 4 1.2 (AMCM) 2100HSE 6 100 67 31.75 (32) 18 26 12.7 (14.4) 8.0 (8.0) 32 (28) 63 4 2.33 ( (Metricsize O Available inserts APMT-MM APMT-MF Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 O G1 01 X page 1000 type APMT 060202PDSR-MM E05 0602PDSR-MM 060208PDSR-MM 060212R-MM 2000 type APMT 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM 0 Available arbors Type Designation 0d NC arbors 1000 AMC 1040HSE 16 BTDD-FMC16-nn type (AMCM) 1050HSE 22 BTHD-FMC22-DD AMC 2080HSE 25.4 BTHD-FMA25.4-DD 2000 (AMCM) 27 BTHD-FMC27-DD type 2100HSE 31.75 BTHD-FMA31.75-HD 32 BTHD-FMC32-DD O Parts Specification Screw Wrench Wrench 04O 05O (1000 type) FTKA01842 - TW06S-A 08O 01 OO (2000 type) FIKA02565S TW08S - 160 0 Available inserts E05 0 Available arbors and bolt E400 E402 Milling
